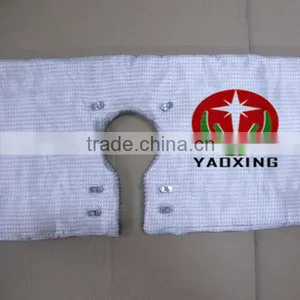

High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-1
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-2
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-3
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-4
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-5
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over thumbnail-6
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-1
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-2
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-3
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-4
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-5
High-temperature Heat Preservation Blanket Alumina Silicate Ceramic Fiber Blanket Heat Insulation Over photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Grade:
HP (High Pure)
Application:
Liners Of Industrial Furnace, Insulating material of high temperature
Thickness:
20-50mm
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Grade HP (High Pure)
Thickness 20-50mm
Width 610/1220mm
Length 3000/5000mm
Chemical Composition AL2O3≥45%, AL2O3+SiO2≥99%
Working Temperature 1100℃
Fiber Diameter 3μm
Shrinkage (1800 ℉, 3h) <3%
Thermal Conductivity 0.132
Model Number YXTX-312
Brand Name YAOXING
Place of Origin Shandong, China







Product Description





 Technical Index

high-temperature heat preservation blanket alumina silicate ceramic fiber blanket heat insulation overhigh-temperature heat preservation blanket alumina silicate ceramic fiber blanket heat insulation over



Classification

Temperature

1050

1260

1400

Code

TXTX-112

TXTX-212

TXTX-312

TXTX-422

TXTX-512

Shrinkage

on

Heating (%)

950°C

×24h

≤-3

1000°C

×24h

≤-3

1100°C

×24h

≤-3

1200°C

×24h

≤-3

1350°C

×24h

≤-3

Theoretical

 Thermal

Conductivity

 (W/m·k)

(128kg/m3)

0.09

(400°C)

0.176

(800°C)

0.09

(400°C)

0.176

(800°C)

0.09

(400°C)

0.176

(800°C)

0.22



(1000°C)

0.132

(600°C)

0.22

(1000°C)

0.76

(600°C)

0.22

(1000°C)

Theoretical

Density

(kg/m3)

64/96/128

Specification (mm)

7200/5000/3600/3000×610/1220×/20/30/40/50

According to your requirements

Tensile Strength

(Mpa)(128kg/m3)

0.08-0.12

AL2O3(%)

≥44

≥45

≥45

52~55

38~40

ZrO2

-

15~17

AL2O3+SiO2(%)

≥96

≥97

≥99

≥99

—

AL2O3+SiO2+ZrO2(%)

—

—

—

—

≥99

Fe2O3(%)

≤1.2

≤1.0

≤0.2

≤0.2

≤0.2

K2O+Na2O(%)

≤0.5

≤0.5

≤0.2

≤0.2

≤0.2

Package

Plastic Bag Inside, Carton Box Outside

Quality Control System

ISO9001-2000, ISO14001-1996





Characteristic



1.Excellent Chemical Stability

2.Excellent Thermal Stability

3.Excellent Tensile Strength

4.Low Thermal Conductivity

5.Low Heat Storage





Application



1.The material of wall lining and back lining of industrial furnace and the sealing

and insulation material of expanded gaps of furnace wall, furnace door, furnace top lid, etc.

2.Insulating material of high temperature

3.Excellent materials to produce module and folded module
