Vertical hydraulic cargo lift

1. Introduction

Hydraulic cargo lift is widely used for transporting cargo or cars from ground floor to
upperfloors, which provides fast, efficient, convenient and safe access to mezzanines,
balconies, basements, and any levels in multistoried building. It can be installed indoor
and outdoor applications.

2. Detailed parts


 1. The mesa mesa use 4 mm stainless steel checkered plate (tianjin)

  2. The mesa framework: the 160 mm * 160 mm special high strength square tube (jinan)

  3. The bearing: the Harbin precision bearing production

  4. Oil cylinder: the fine grinding special hydraulic cylinder, cylinder diameter 100 mm * 2 (hebei fine grinding production hydraulic oil cylinder, imported wear seal)

  5. The hydraulic tubing: the rubber hose with high pressure double network (shenyang rubber four rubber factory produce high pressure double steel net)

  6. Power supply: wuxi DE force production, using the original rexroth, achieve zero leakage in the hydraulic system

  7. 32 # hydraulic oil: the anti-wear hydraulic oil (sinopec Great Wall)

  8. The chain: 16 b chain (hangzhou donghua chain group co., LTD. Production of sprocket chain)

  9. The control mode: install a control box, each layer of each layer can be controlled (equipment all adopt delixi electrical appliances)

  10. Cellular technology requirements: guide rails with 70 mm * 70 mm square tube

3. Safety

Hydraulic cargo lift not only have all safety device of the traditional elevator, but also
have the special system:
(1). Spillover valve, it can prevent high pressure when the machine moves up.
(2). Manual emergency valve, it can go down to the nearest floor and open the door when meet an emergency.
(3). Manual pump, it can go down to the nearest floor and open the door when meet an
emergency.
(4). Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the
(5). Overload warning device. When the cargo on the platform is over the rated capacity of the lift, the warning light  will work.

4. Application

Cargo lift transmit materials--in factories, warehouses, industrial plants, workshop, car showroom institutions-anywhere that products or supplies need to move from one level to another. provides fast, efficient,convenient and safe access to any levels in multistoried building. It economize on Manpower and improve work efficiency.

5. After sales

 1. User-friendly English manual for machine installation using and maintenance.
 2. One year warranty for whole machine without man-made fault;
 3. We will send you parts for free if there are any non-human factors problem during warranty time
 4. 24-hours technical support by email, telephone or other communication online.
 5. We could reply you in 2 hours after received your any questions even on weekend and
 holiday. Engineers are available to your country if necessary.

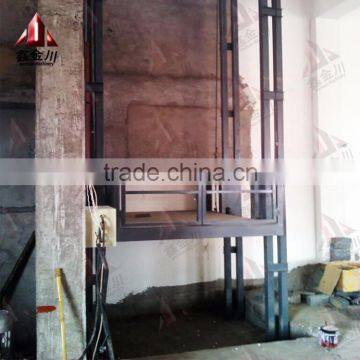

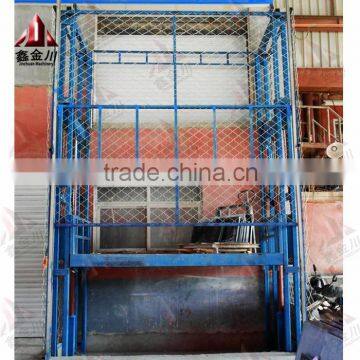

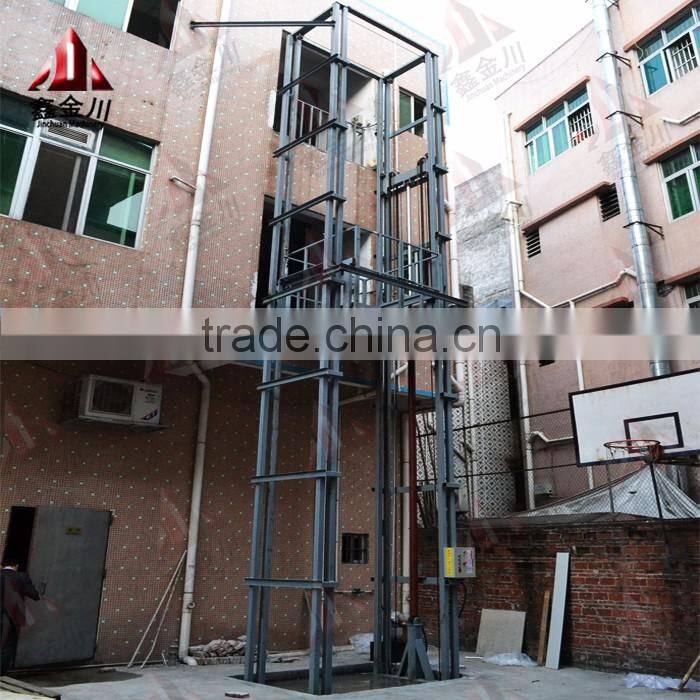

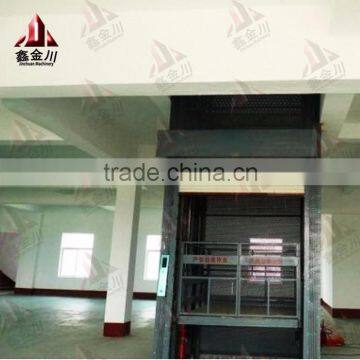

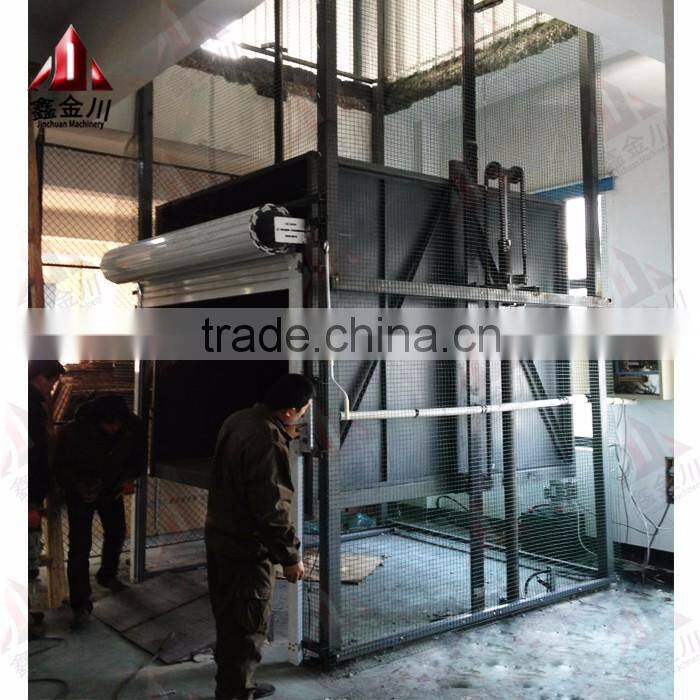

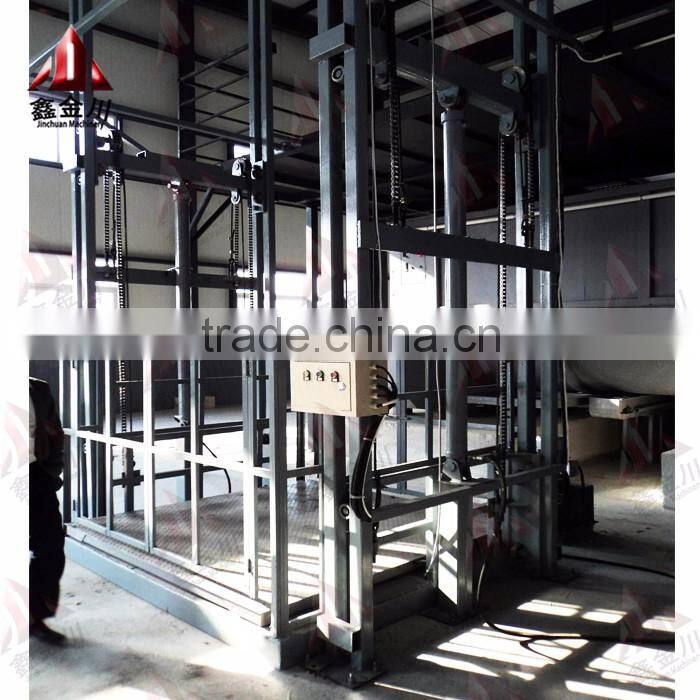

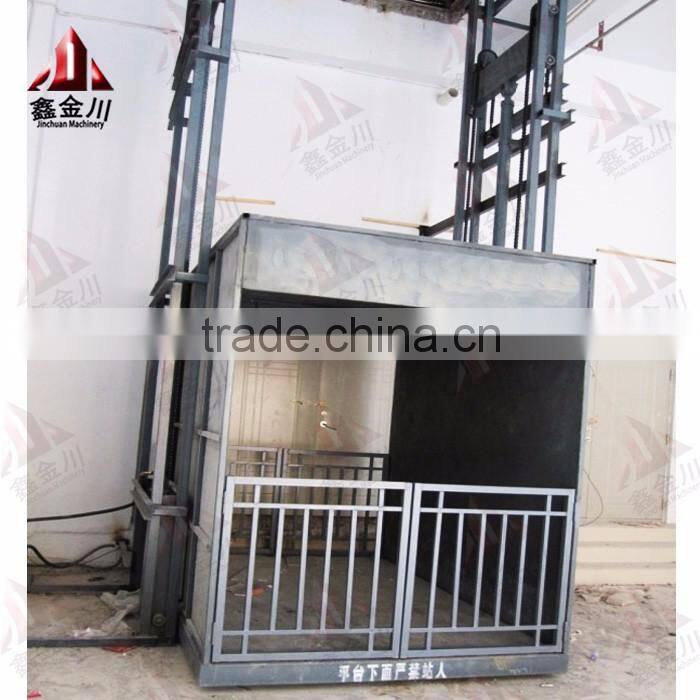

6.Products show

7.Certificate

8.Contact us

Jinan Jinchuan Hydraulic Machinery Co.,Ltd

Taixing Road,Jibei Development Zone,JIyang County, Jinan, China.

CEO:Abery

Tel: +86-18668910306

Fax:+86-0531-84233276

Skype: jinchuanlift

Wechat:jinchuan18668910306

QQ:2814559393

Customized service:Yes,only need the below data you demand

1.lifting height

2.platform size:length and width

3.your local power

4.How much load you need
