>>> Brief Introduction of lift for disabled people
Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive
system and easy-to-use operating controls.
Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0-8.0m working range, 150-300kg carrying capacity. Ideal for indoor and outdoor applications.
We have two type of wheelchair lift
1.scissor lift type
2.guide rail lift type
>>> Parameter of lift for disabled people
Name |
guide rail type |
Lift capacity |
250kg |
|
Model |
WL0.25-N |
Lift height |
1m-3m |
|
material of platform |
Stainless steel |
|||
Platform size |
1300mm(L)* 1000mm(W) |
|||
Dimension |
1300mm(L)*1450mm(W)* [Travel height +700mm(H)] |
|||
Max Platform Height |
2000(mm) |
|||
Min Platform height |
40mm |
|||
Configuration |
Open through or front and side entrances |
|||
Speed |
60mm/s |
|||
Load capacity |
250KG |
|||
Control voltage |
24V/DC |
|||
Power Output |
0.75kw-2.2kw |
|||
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|||
Drive System |
Hydraulic |
|||
Control Mode |
Inching Switch or Automatic |
|||
Drive Control |
Self-resetting system |
|||
Overload |
Protection Over current relay |
|||
Material of Platform |
Stainless steel |
|||
Guard panel & drive cabinet (framework) |
304 stainless steel
|
|||
Automatical ramp |
yes |
|||
Column switch |
Two column switch, one is on the ground floor, one on the first floor |
|||
Operation Panel |
Polished Stainless steel(up down and Emergency drop valve) |
|||
Safety Wane Working Range |
75° |
|||
Working Condition |
Both indoors and outdoors |
|||
Working temperature |
From -10°~60°C |
|||
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|||
|
Control Device
|
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|||
|
||||
|
||||
>>> Photos of lift for disabled people
two types

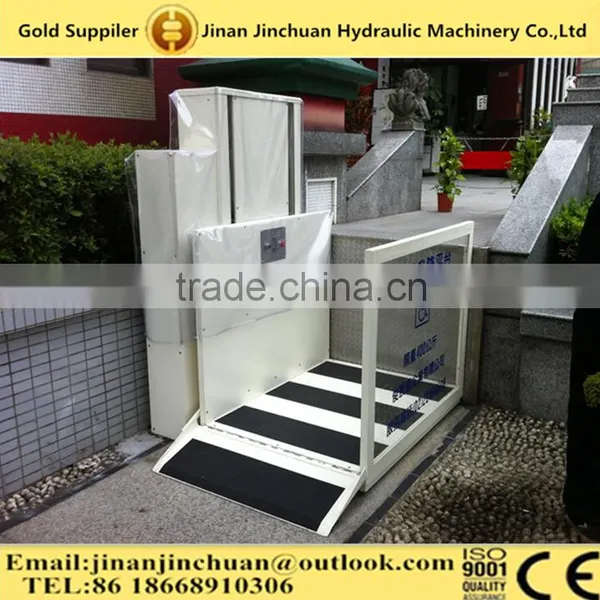

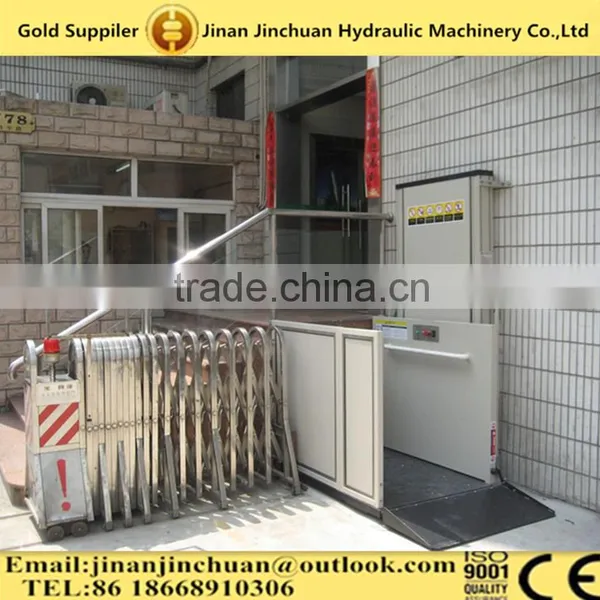

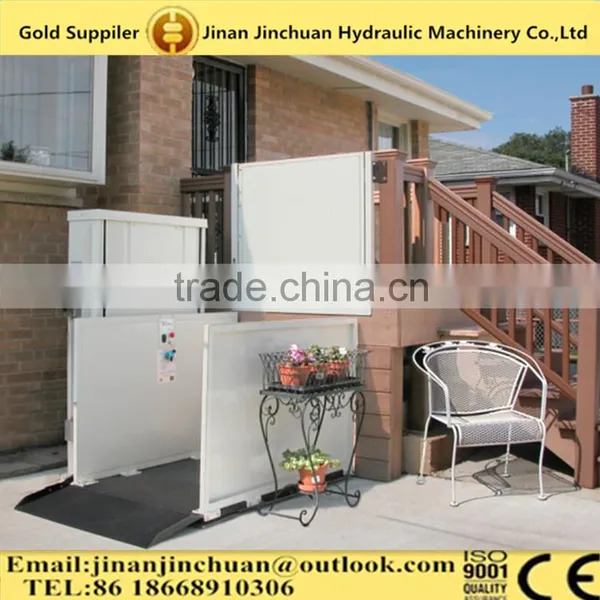

First type: guide rail lift

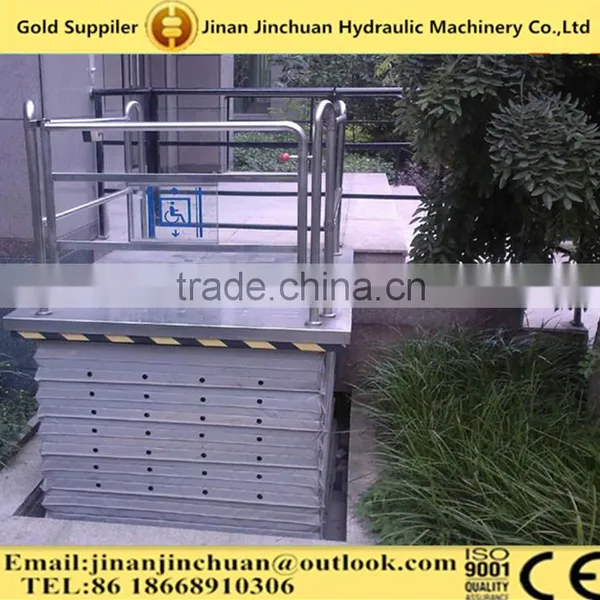

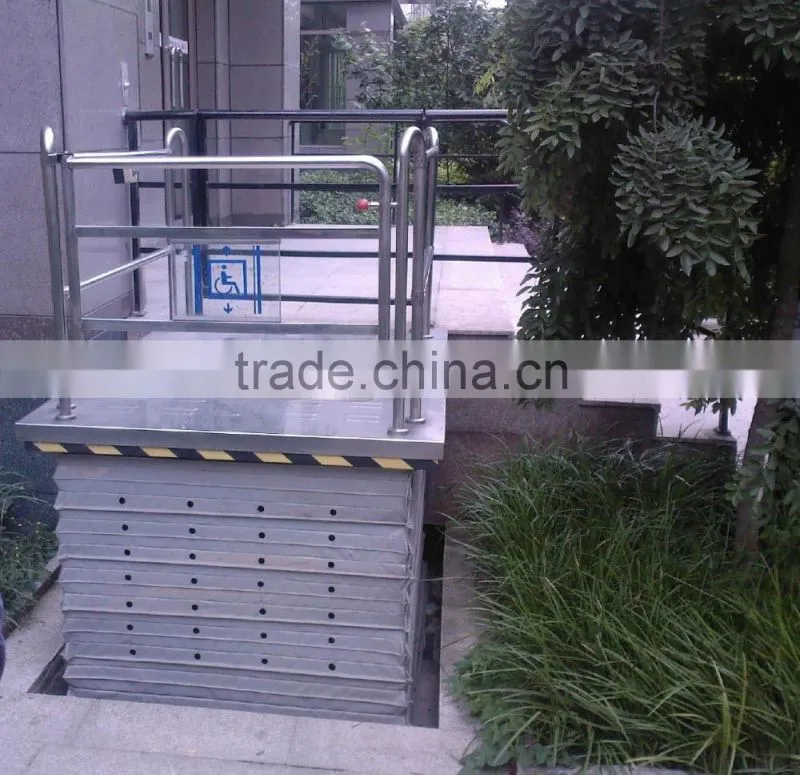

second type :scissor lift type
>>>Packaging Shipping&Trade terms
1.Package:by wooden case
2.Delivery Time: 10-15 days after deposit received
3.Trade terms and Shipping : we accept EXW,FOB and CIF.we can just delivery the goods to Chinese sea port or ship to customers' location sea port,our forward agents exist most countries of the world,we will serve you goods if you need.
