High Temperature Heat Insulation Tape Thermal Insulation Tape Ceramic Fiber Tape

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
High Temperature Heat Insulation Tape Thermal Insulation Tape Ceramic Fiber Tape thumbnail-1
High Temperature Heat Insulation Tape Thermal Insulation Tape Ceramic Fiber Tape photo-1
Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Heat Insulation, Heat insulation
Thickness:
2mm
Width:
50mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Thickness 2mm
Width 50mm
Length 30000mm
Grade ST (Standard)
Chemical Composition Ai2O3 SiO2
Working Temperature 1000C
Fiber Diameter 3nm
Thermal Conductivity 0.075
Shrinkage (1800℉, 3h) <3%
Place of Origin Shandong, China
Brand Name Yao Xing
Model Number YXTX-B2







Product Description

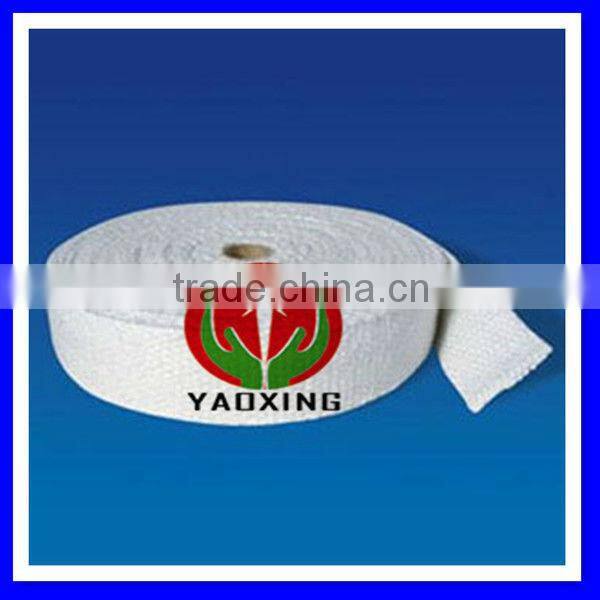

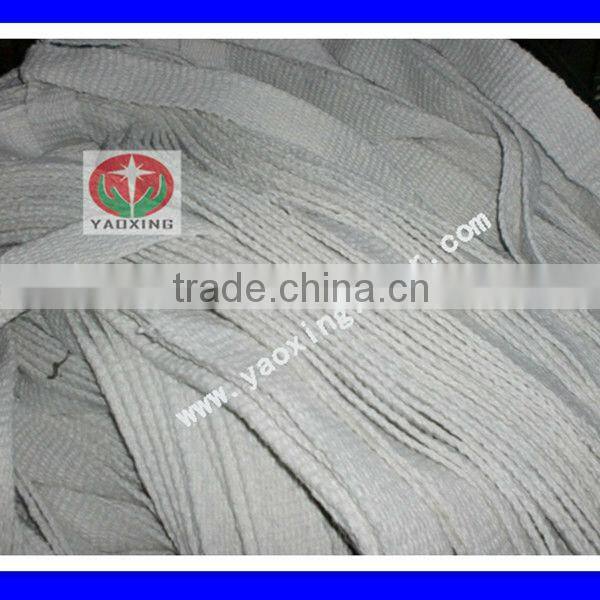

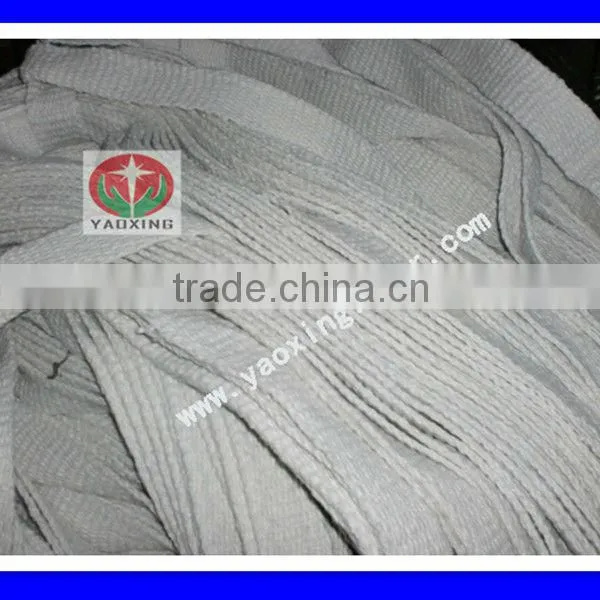

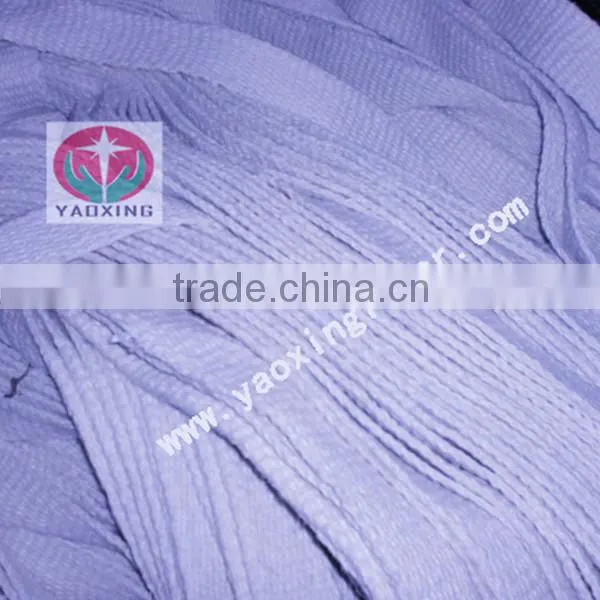

Ceramic Fiber Tape





1.YAO XING 1260 ceramic fiber tape is a cost-effective insulating tape

made from ceramic fiber yarn,

reinforced by a core of glass filament or stainless steel wire

for high strength retention at elevated temperatures,

ideal for most high temperature applications up to 1260°C.


2.YAO XING 1400 tape is a high performance industrial tape

made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire.

It is durable, long-lasting product, ideal for high temperature applications up to 1400°C.

YAO XING tape contains approximately 18% organic fiber

which burns out at high temperatures,

causing some smoking and outgassing,

but the tape retains enough strength to be used as effective insulating cloth at high temperatures.



Characteristics:



1.Excellent high-temperature strength



2.Excellent electric insulation capability



3.Excellent corrosion resistance to acid oil and steam



4.Low thermal conductivity



5.Excellent thermal insulation capability



Applications:



 1.Furnace curtains


 2.Protection against high temperature


 3.High temperature electrical insulation


 4.Cable and fuel line protection


 5.Fire protection


 6.Insulation of industrial chimney



Technical Index:





Classification

Temperature

1260

Product

1260 ceramic fiber tape

Code

YXTX-208B1

YXTX-208B2

Service

Temperature(°C)

450

1000

Basic Material

Ceramic fiber

/glass fiber reinforced

Ceramic fiber

/ stainless steel reinforced

Theoretical Density (kg/m3)

600

Specification (mm)

3000×20/50/75/100×2/3

Moisture Content(%)

≤2

Warp Density

56-60piece/10cm

Weft Density

24-30piece/10cm

Organic Content (%)

≤15



high temperature heat insulation tape thermal insulation tape ceramic fiber tapehigh temperature heat insulation tape thermal insulation tape ceramic fiber tape
