High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-1
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-2
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-3
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-4
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-5
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape thumbnail-6
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-1

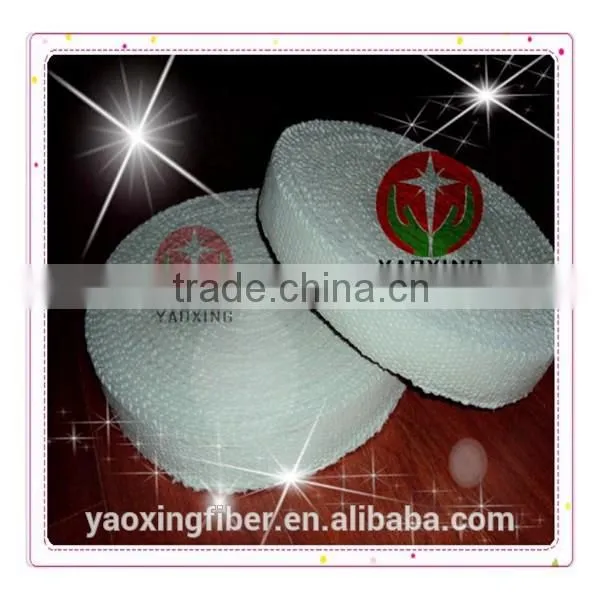

High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-2

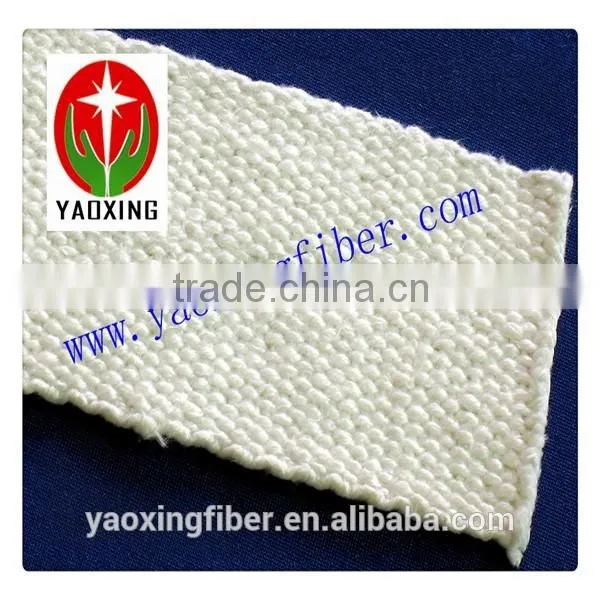

High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-3
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-4

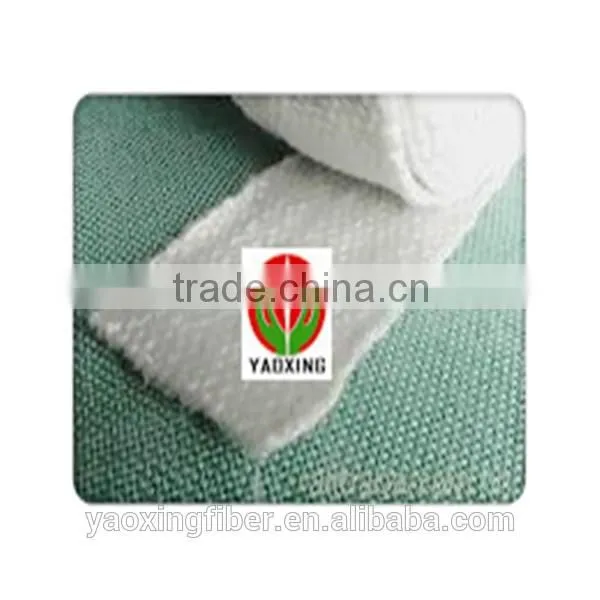

High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-5
High Pure Ceramic Fiber Tape Refractory Ceramic Fiber Tape 1260 Ceramic Fiber Tape photo-6
Negotiable MOQ: 500 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Refractory, Sealing and heat pipe heat insulation protection
Thickness:
2-10mm
Width:
15-150mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Thickness 2-10mm
Width 15-150mm
Length 30000mm
Grade HP (High Pure)
Chemical Composition Ai2O3 SiO2
Working Temperature 1100C
Fiber Diameter 3um
Thermal Conductivity 0.075
Shrinkage (1800℉, 3h) <3%
Place of Origin Shandong, China
Brand Name YaoXing
Model Number YXTX-208B1



Product Description

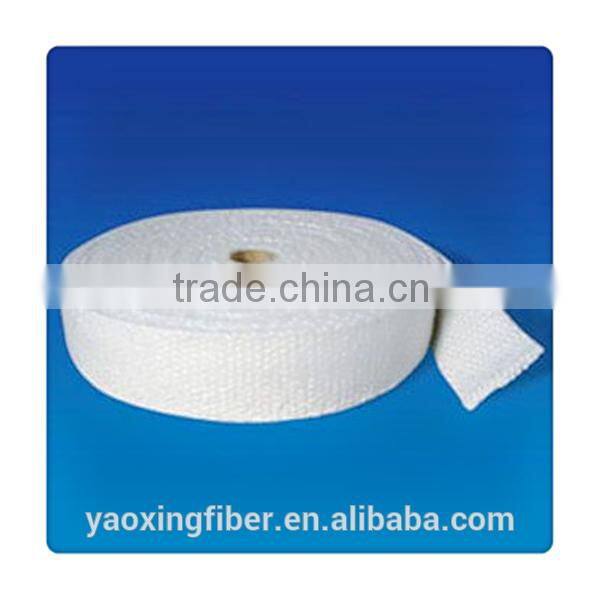

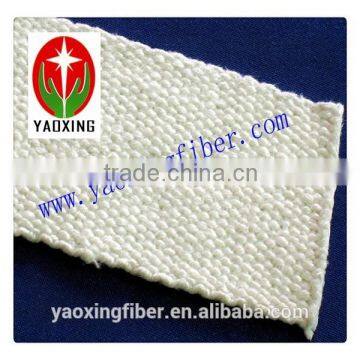

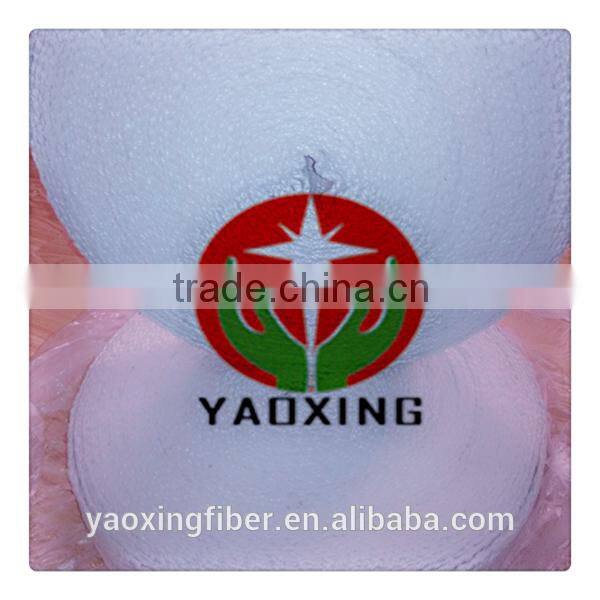

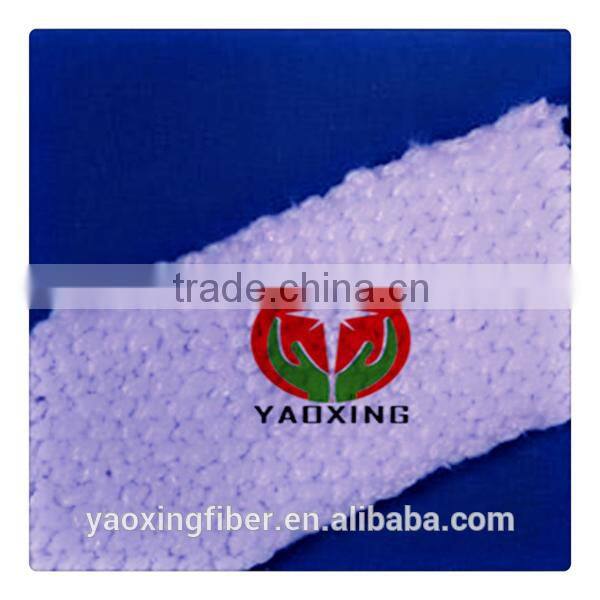

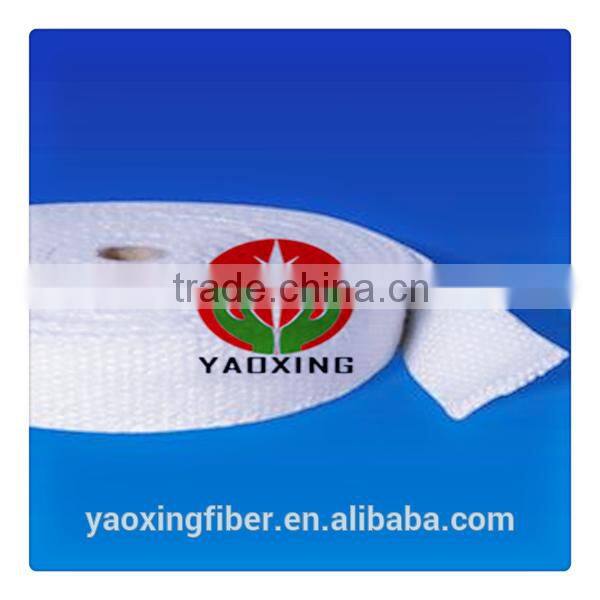

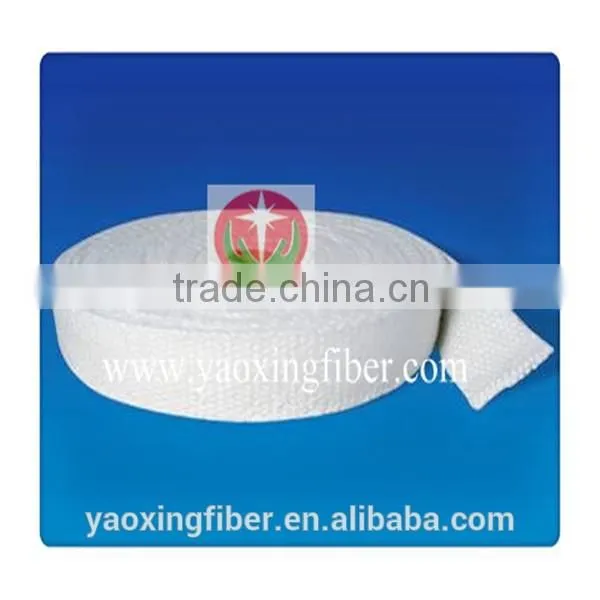

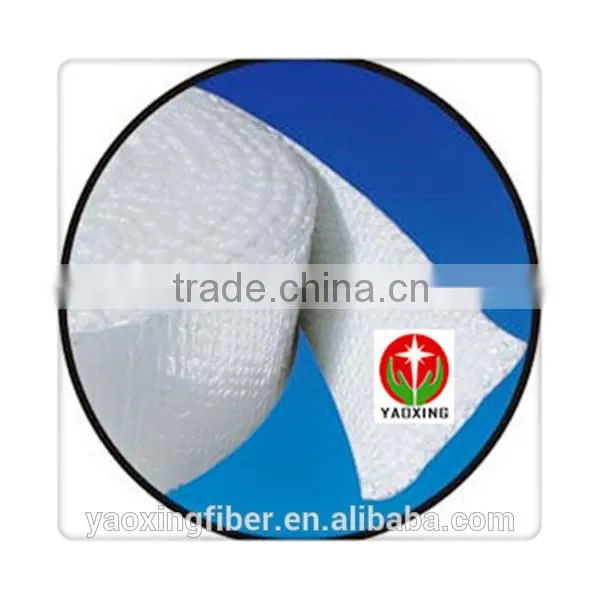

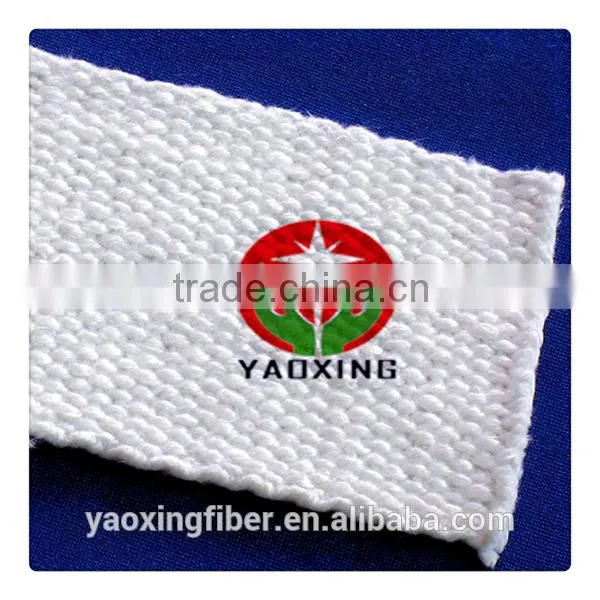

Ceramic Fiber Tape
1.YAO XING 1260 ceramic fiber tape is a cost-effective insulating tape made from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high

temperature applications up to 1260°C.
2.YAO XING 1400 tape is a high performance industrial tape made from zirconia grade ceramicfiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1400°C. YAO XING tape contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking

and outgassing, but the tape retains enough strength to be used as effective insulating cloth

at high temperatures.





Characteristics:

 1.Excellent high-temperature strength

 2.Excellent electric insulation capability

 3.Excellent corrosion resistance to acid oil and steam

 4.Low thermal conductivity

 5.Excellent thermal insulation capability





Applications:

 1.Furnace curtains
 2.Protection against high temperature
 3.High temperature electrical insulation
 4.Cable and fuel line protection
 5.Fire protection
 6.Insulation of industrial chimney





Technical Index:

Classification Temperature

1260

Product

1260 ceramic fiber tape

Code

YXTX-208B1

YXTX-208B2

Service Temperature(℃)

450

1000

Basic Material

Ceramic fiber/

glass fiber reinforced

Ceramic fiber/

stainless steel reinforced

Theoretical Density (kg/m3)

600

Specification (mm)

3000×20/50/75/100×2/3

Moisture Content(%)

≤2

Warp Density

56-60piece/10cm

Weft Density

24-30piece/10cm

Organic Content (%)

≤15





High Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber TapeHigh Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber TapeHigh Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber TapeHigh Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber TapeHigh Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber TapeHigh Pure Ceramic Fiber Tape Refractory Ceramic Fiber tape 1260 Ceramic Fiber Tape
