vertical platform lift for disabled
1. Introduce
Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive
system and easy-to-use operating controls.
Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0-8.0m working range, 150-300kg carrying capacity. Ideal for indoor and outdoor applications.
2. Technical Parameters:
Name |
No. |
Lift capacity (kg) |
Materials |
|
Wheel-chair vertical lift |
LRL0.25-3 |
250 |
Stainless steel |
|
Platform size |
1200mm(L)* 1000mm(W) |
|||
Dimension |
1200mm(L)*1450mm(W)* [Travel height +700mm(H)] |
|||
Max Platform Height |
3000(mm) |
|||
Min Platform height |
60mm |
|||
Configuration |
Open through or front and side entrances |
|||
Speed |
60mm/s |
|||
Load capacity |
250KG |
|||
Control voltage |
24V/DC |
|||
Power Output |
0.75kw-2.2kw |
|||
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|||
Drive System |
Hydraulic |
|||
Control Mode |
Inching Switch or Automatic |
|||
Drive Control |
Self-resetting system |
|||
Overload |
Protection Over current relay |
|||
Material of Platform |
Stainless steel |
|||
Guard panel & drive cabinet (framework) |
304 stainless steel
|
|||
Automatical ramp |
yes |
|||
Column switch |
Two column switch, one is on the ground floor, one on the first floor |
|||
Operation Panel |
Polished Stainless steel(up down and Emergency drop valve) |
|||
Safety Wane Working Range |
75° |
|||
Working Condition |
Both indoors and outdoors |
|||
Working temperature |
From -10°~60°C |
|||
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|||
|
Control Device
|
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|||
|
Emergency Stop
|
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|||
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
||
Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation. |
|||
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|||
Auto-flap |
Turn up after lifting |
|||

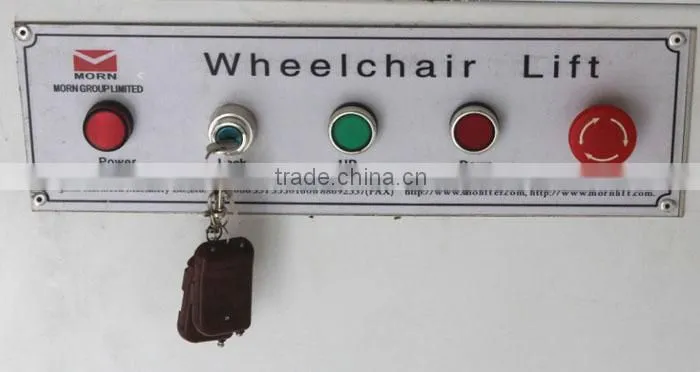

3. Control Panel

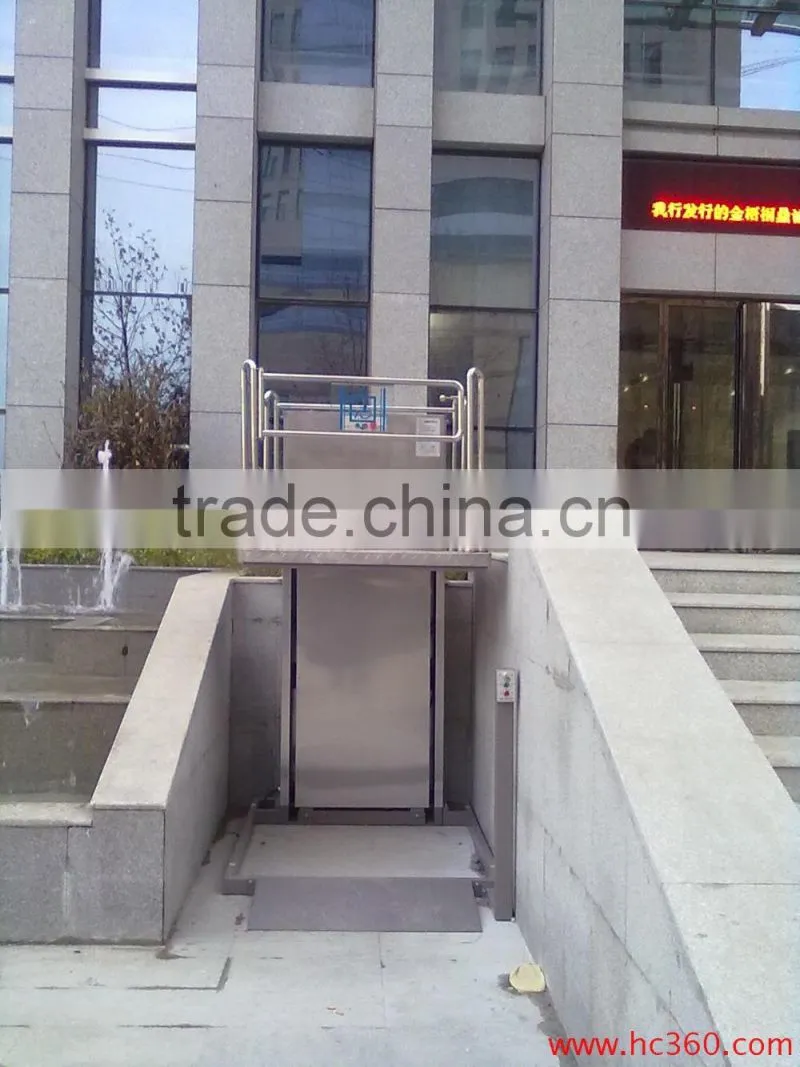

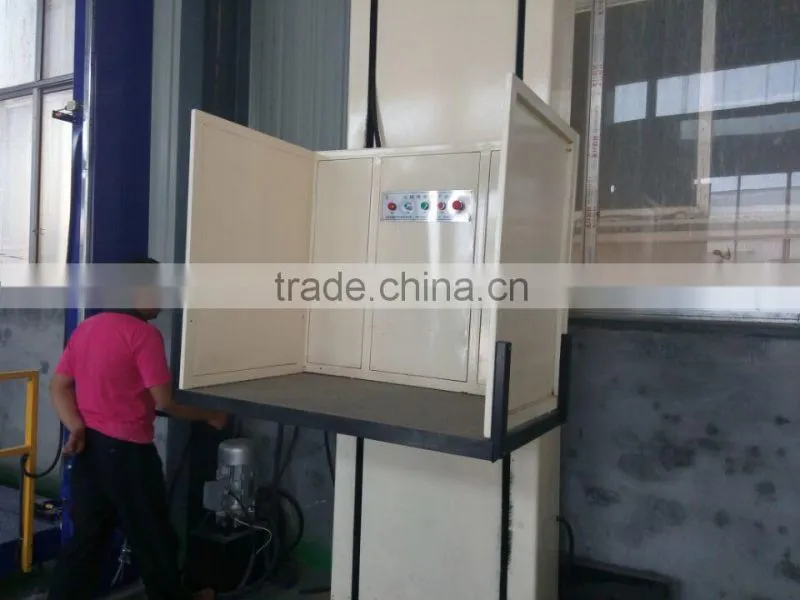

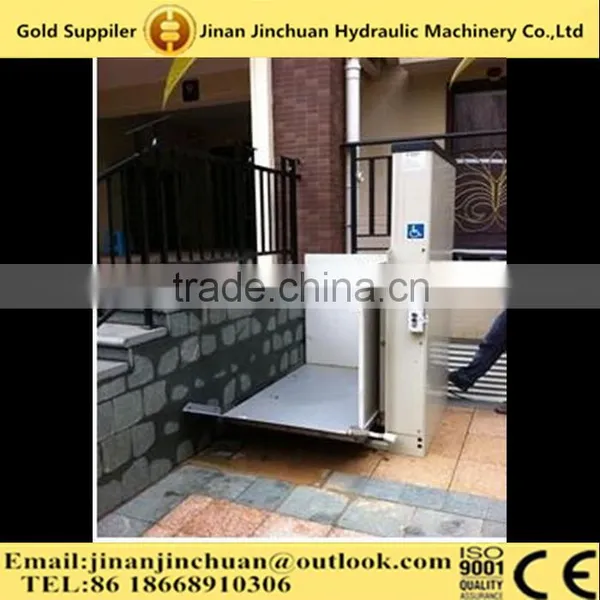

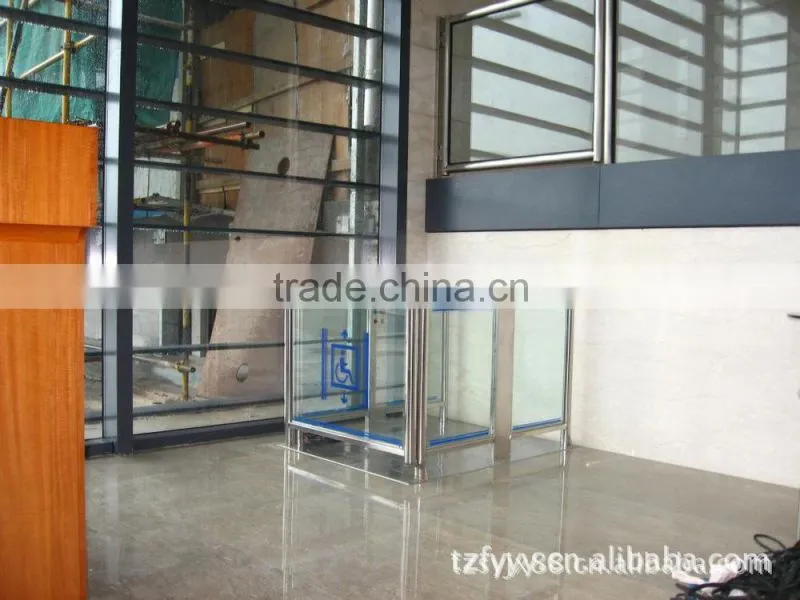

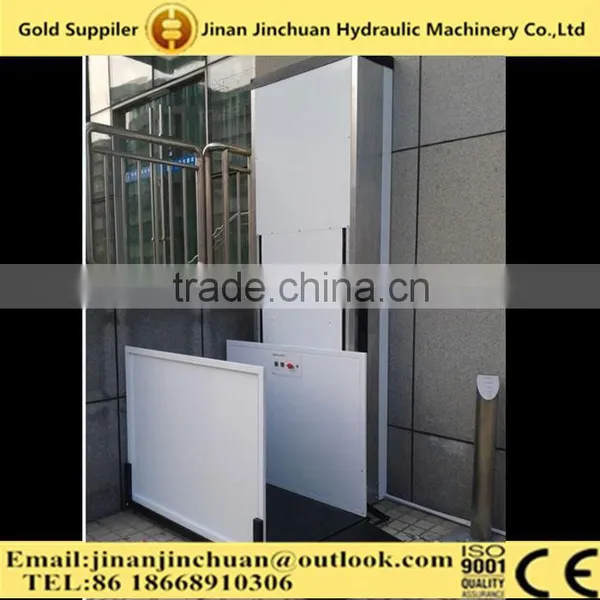

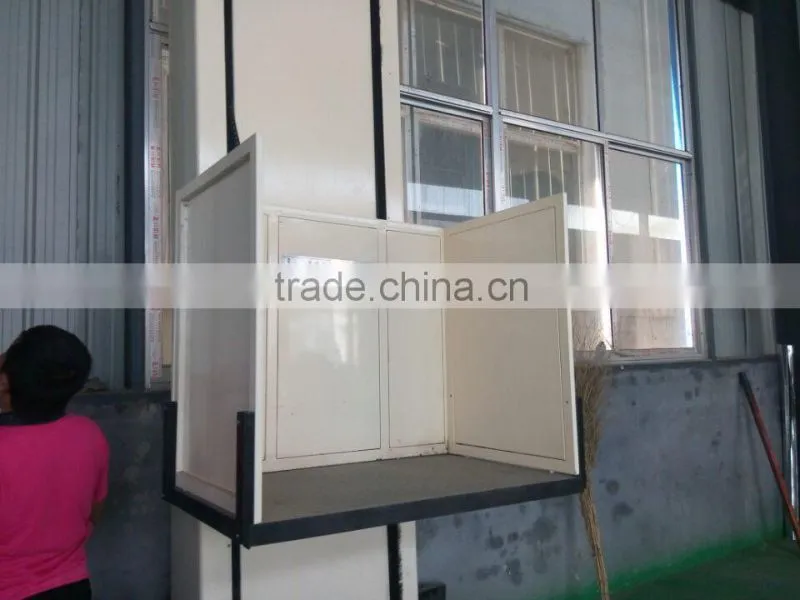

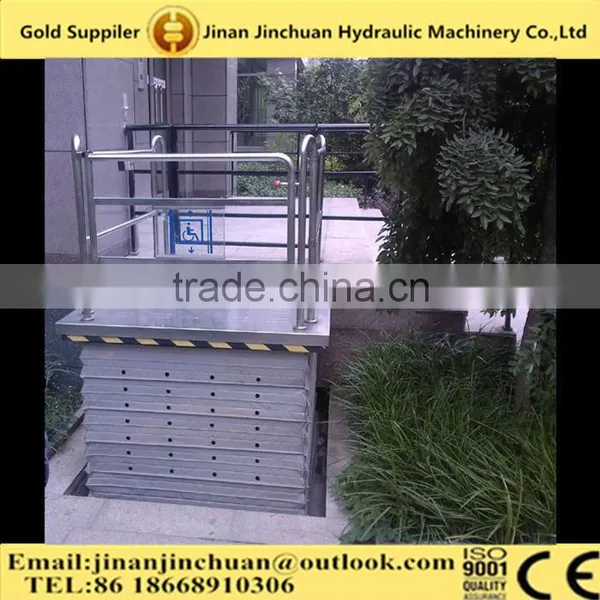

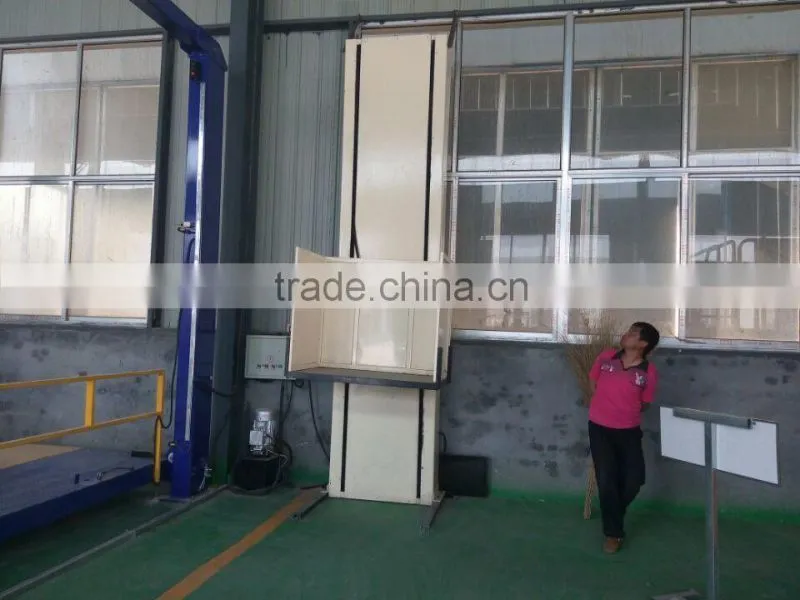

4. pictures
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your arrival! Welcome!
Certificate:
