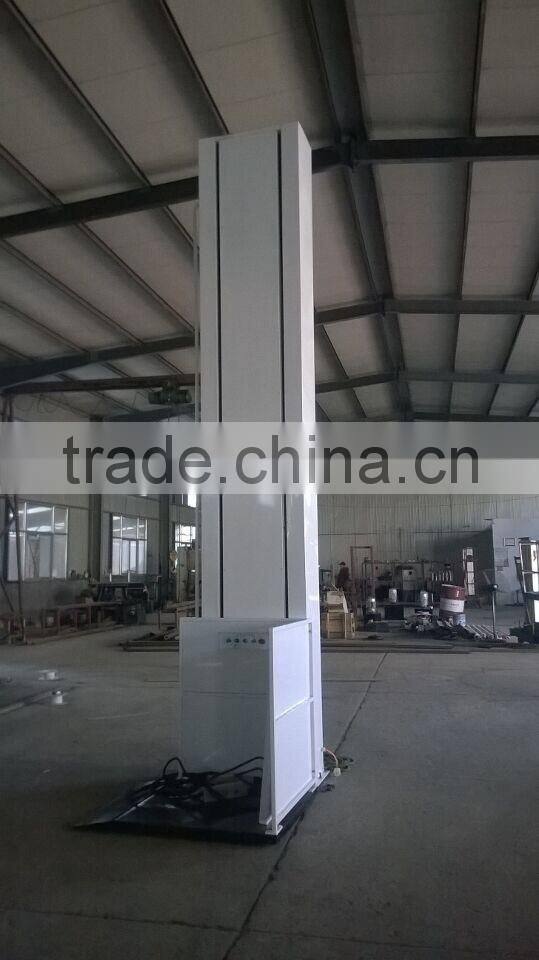

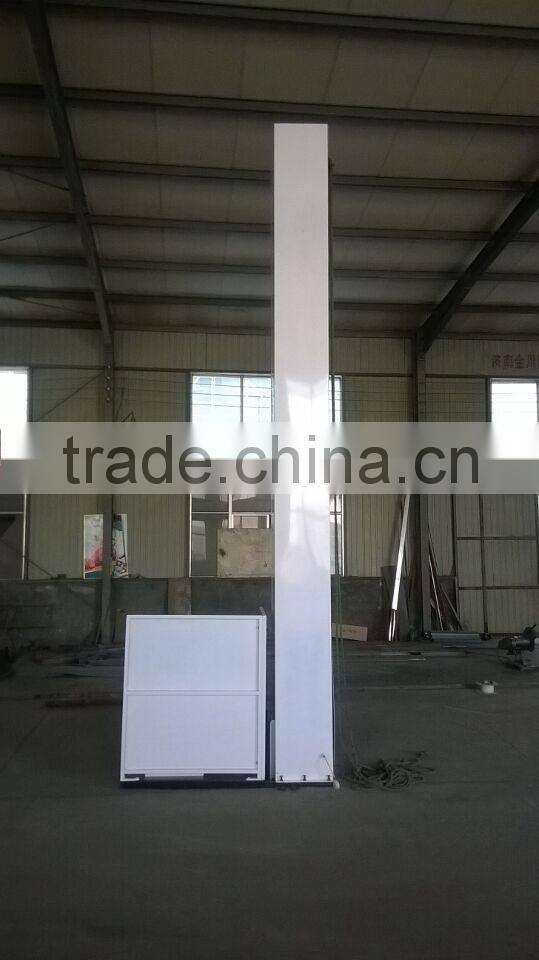

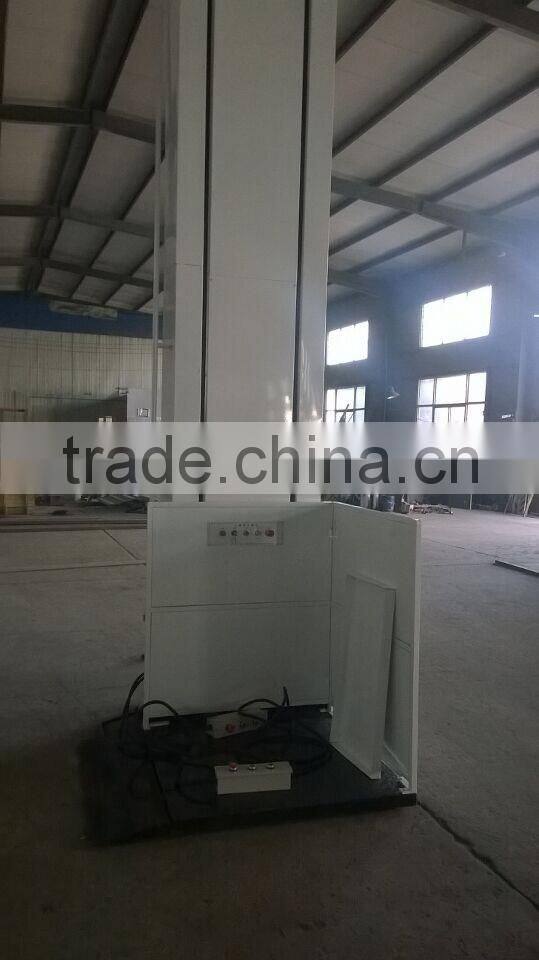

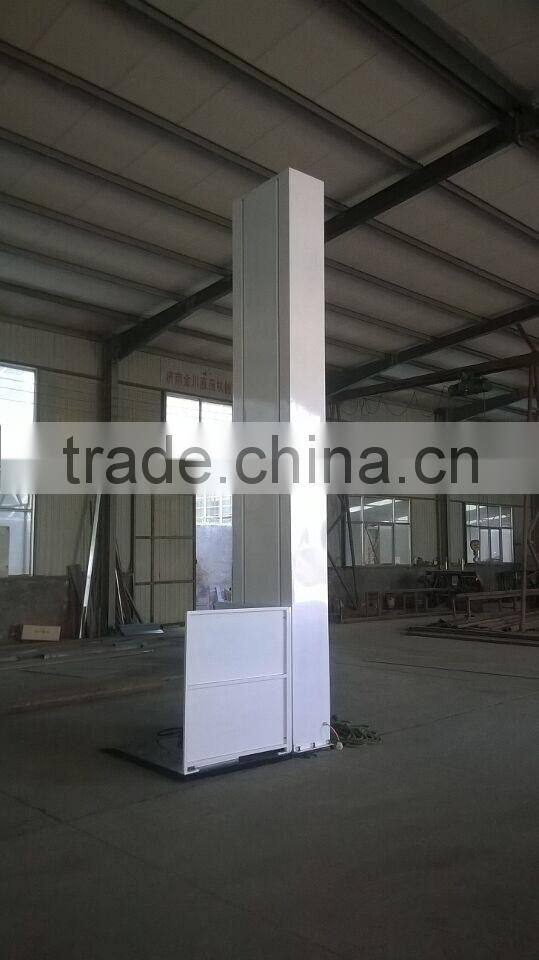

Help Center350kg Vertical Wheelchair Lift for the Disabled
Related Products
-
Good Quality Hydraulic Power Wheelchair Lifts for Disabled in MallsUS$ 800 - 10,000MOQ: 1 Set -
Hydraulic Wheelchair Lifts/ Lift for Disabled People/hydraulic Lifting PlatformUS$ 800 - 10,000MOQ: 1 Set
-
Hydraulic Wheelchair Lift/ Wheelchair Lift for Disabled Handicapped People UsedUS$ 800 - 10,000MOQ: 1 Set
-
Inclined Wheelchair Lift Lift for DisabledUS$ 2,000 - 3,000MOQ: 1 Set
-
Electric Wheelchair Lift Disabled Wheelchair Lift Quality ChoiceUS$ 2,000 - 3,000MOQ: 1 Set
China Used Aerial Lift Platforms Household Lift Platform
1. Main Parameter:
Model |
CJR-2 |
Platform size |
1450x1000mm |
Max Platform Height |
2000mm |
Min Platform height |
80mm |
Configuration |
Open through or front and side entrances |
Speed |
60mm/s |
Load capacity |
250kg~350kg |
Control voltage |
24V/DC |
Power Output |
2.2kw |
Power Input |
220V/50HZ/25A (or customized for local power supply) |
Drive System |
Hydraulic |
Control Mode |
Inching Switch or Automatic |
Drive Control |
Self-resetting system |
Overload |
Protection Over current relay |
Operation Panel |
Polished aluminum Alloy |
Safety Wane Working Range |
75° |
Working Condition |
Both indoors and outdoors |
Working temperature |
From -10°~60°C |
2. Advantage:

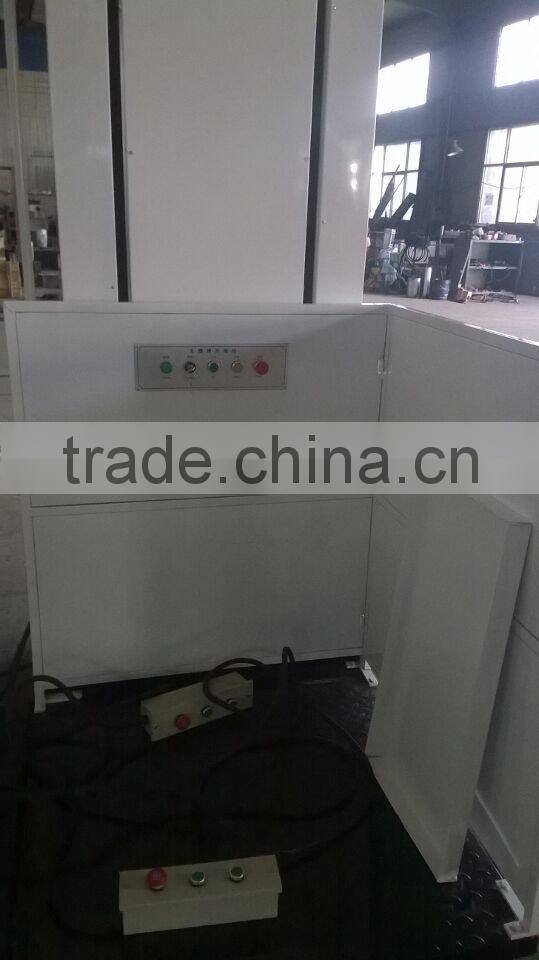

1. You can control lifts for disabled both on ground and platform, and there is remote controller, you can control it within 10m.
2. Installation: Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower), like the picture:
3. Manual down: When the power is failed, the elevators for disabled can down by pulling the manual down.
4. Safety interlock: Lock the platform when it is out of control
5. Safety sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
6. Auto-flap: Keep the person.
7. 90 degree or 180 degree direction for enter or exit
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
6. Our service:
1. All the machines will be full tested before shipment
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online
4. User-friendly English manual for machine using and maintaining
5. Several sets waering parts will be free for you.
