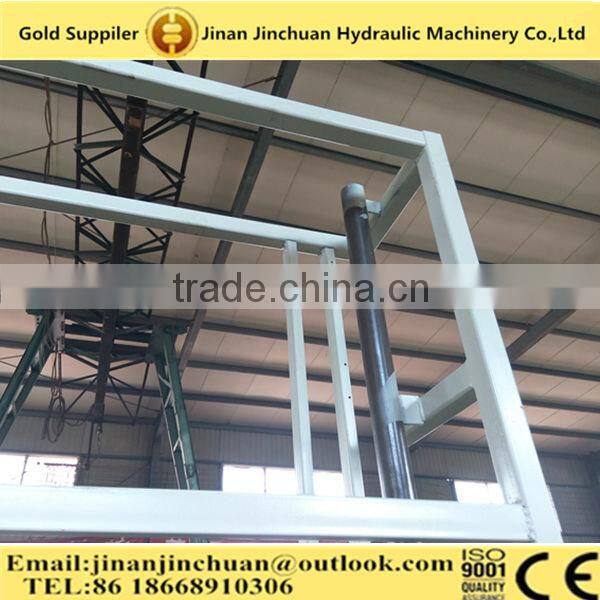

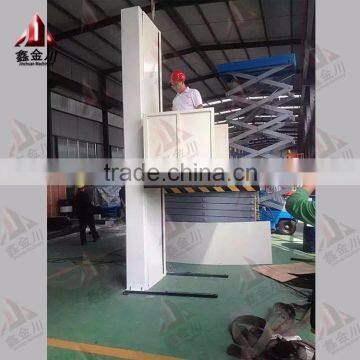

Wheelchair elevator
The Jinan Jinchuan Hydraulic Machinery.,Ltd provides lifts for diabled which it is a convenient, easy and reliable access
to the second floor, it can easily accommodates a wheelchair with the max capacity 550
lbs(250kg). Built with durability in mind, the MORN handicap lift is up for the challenge of
tough climate conditions.
You can count on this lift for reliable performance and ease of operation.
An ideal lift for home use,the handicap lift is approved for certain commercial accessibility
projects as well
Feature:
Safety Interlock: Lock the platform when it is out of control
Emergency Stop: The lifting and lowering process can be stopped immediately by
pressing the emergency button.
Underpan sensors to stop the lift if it senses an obstruction when lifting or lowering.(Optional)
Emergency lowering: The platform can be lowered by opening hydraulic valve manually or
rolling screw rod.

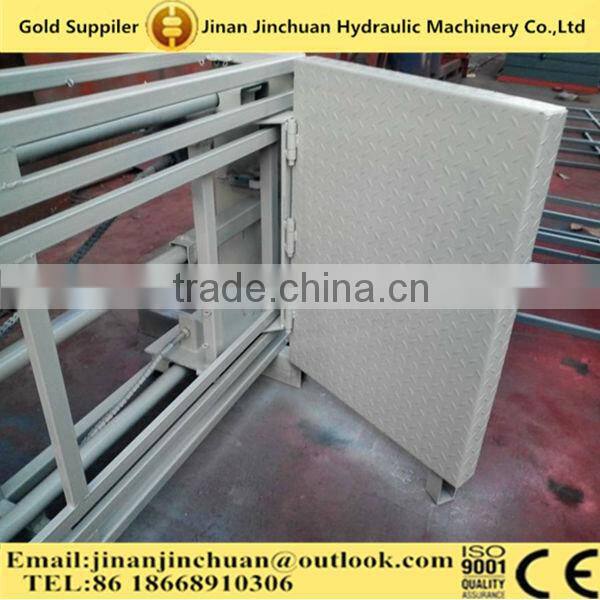

Auto-flap Turn up after lifting, which can prevent the wheelchair rolling.
Column switch: Two column switch, one is on the ground floor, one on the first floor
Speciffications:
| Platform size | 1200-1400mm L* 1000-1100mmW |
| Min Platform height | 20mm |
| Speed | 60mm/s |
| Lift height | 1000 to max 5000mm |
| Power Output | 0.75kw-2.2kw |
| Power Input | 220V/50HZ/25A (or customized for local power supply) |
| Drive System | Hydraulic |
| Material of Platform | Stainless steel or Powder Spraying |
| Operation Panel | Polished Stainless steel(Up Down and Emergency Stop) |
| Working Condition | Both indoors and outdoors |
| Working temperature | From -10°~60°C |
| Non-pit installation | directly fixed to concrete floor |
| Control Device | Calling box and remote controller |
| Optional | Tempered-glass-door; |
| Customerized-LOGO | |
| Interlocking device | |
| Safety senser Extra guardrail for up floor |
