Hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among kinds of foundation projects.
JISAN DLK series high frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,
cofferdam,building foundation etc.
Features:
1.Hydraulic Motor driven turntable
The latest inner gear design, effectively avoid the dirt and collision, gear is changeable,stable and durable, very reliable!
2.Ventage
Ensure the gear box pressure balance,stable heat removal.
3.Adopts highly efficient imported damping rubber block.
Stable quality, long service life!
4.Adopts original imported hydraulic motor.
Double efficiency, superior quality!
5.Powerful hydraulic cylinder,Super durable tooth piece.
Strong and never loose clip mouth is the first condition of safety construction.
We specially add the double pressure protection device, firmly lock the systempressure and then ensure the stability and reliability of the clamping plate pile.
6.Precision oil system
Special designed according to driver functions and features and effectively increasethe use of the pile driver efficiency.
7.Well designed circuit control box
Adopts safety and reliable spaceflight joint, sufficient protects the stability of the circuit.The whole circuit system, not only easy to install but also maintenance is convenient.
8.Adopts original imported control handle
Multifunctional integration, beautiful and practical, easy reliable installation , high reliabilit.
9.Detachable lazy arm and flip axis
Accurate matching with small gap, easy maintenance with no worries.
Parameters:
Item / Model |
DLKP 08 |
DLKP 10 |
DLKP 14 |
DLKP 20 |
Eccentriv Torque(Nm) |
40 |
50 |
65 |
85 |
Vibration Frequency(Rpm) |
2800 |
2800 |
2800 |
2800 |
Operation Pressure(Bar) |
280 |
280 |
300 |
300 |
Exciting Force(T) |
36 |
45 |
58 |
75 |
Flow Demand(Lpm) |
155 |
168 |
210 |
255 |
Main Body Weight(Kg) |
1450 |
1550 |
1650 |
1800 |
Excavator Weight(T) |
20-24 |
24-32 |
30-40 |
40-45 |
Piling Depth(M) |
5-8 |
7-12 |
7-18 |
20 |
Clip mouth Weight(Kg) |
300/360/350 |
|
|
|
Assistance Arm Weight(Kg) |
450/550/600/750/900 |
|
|
|
Advantages:
• Lower cost of maintenance than crane hammer.
• Outstanding workability and mobility.
• Easier operate in critical regions such as chaotic section of city, bridge area and
the vicinity of high-voltage wires than crane hammer does.
• Equipped with high-powered hydraulic piston motor and suitable bearing for
high frequency vibration.
• Install vibro isolating rubber for high frequency purpose.
• Easy connect and disconnect the hammer by the use of excavator’s breaker
hydraulic lines.
• The clamping lug can handle and move construction objects easily.
• Pile driving power 20% up compared to the existing equipments.
• Sufficient wear-resistant design and 360-degree revolution.

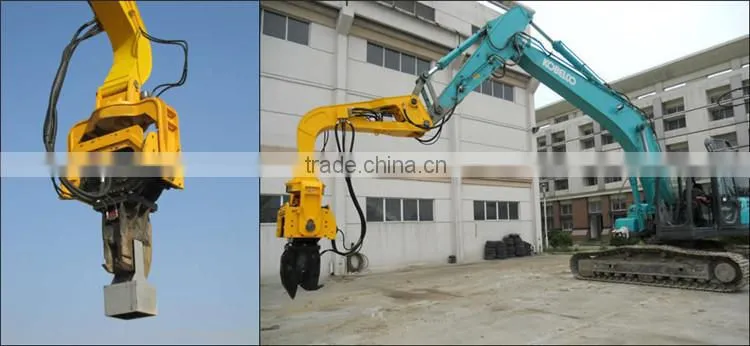

Working scene
The standard set of pile hammer include:
- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.
- The pile diver will be packed by plywood pallet or case
-The pile diver Will be dispatched within 5 workdays after order
1. Manufacturer: as a leading manufacturer of hydraulic attachments on excavator
and its spare parts, we provide full support to our customers includes competitive price, after-sale services, fast delivery and etc.
2. Lead time: we have a great deal of products and spare parts in stock. On leading time we have big advantages as a manufacuturer, usually in 5-7 days after order confirmation.
3. Package: the goods are packed in strong fumigated wooden cases. They could also packed according to customers' request.
4. Payments: we usually accept T/T, L/C or Western Union, other terms also could be negotiated, such as Alibaba trade assurance, will guarantee buyer's interest.
5. Reassurance: we are Alibaba golden supplier, we can protect your interest. If there is any quality problem, we will refund you.
If you are interested in our products, please feel free to contact me.
