Product Details
Place of Origin: | Shandong, China | Brand Name: | DLK | Model Number: | DLKP10 |
Product Description

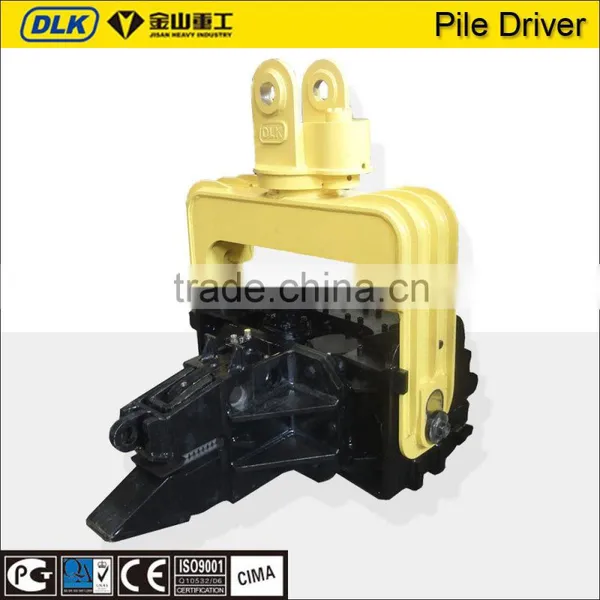

excavator mounted hydraulic piling hammer for sheet piling
Advantages
1. Applied to driving and pulling steel plate, cement pile, steel rail, round pipe, steel H-pile, Lasson pile
2. fast conversion between driving and pulling work
3. less tension when pulling piles
4. No damage to the bottom or top of steel plate and steel rail pile
5. No damage to the buildings even working frequently nearby
6. Silent work and short construction period, overcome environmental problems
Features
1. High efficiency: driving and pulling speed generally 4 to 7 m/min, fastest 12 m/min(except sludge), construction speed much faster than other piling machinery
2. Applied to wide range of geology except rock, easy to through pebble bed and Clip sand bed etc
3. Multiple use: Besides piling, can be applied to special fields such as building thin anti-seeping walls, deep density treatment and ground compact improvement treatment.
4. Little vibration, lower noise, Environmentally Friendly
5. Wide application range, applied to any shape and material pile, any kind of soil, underwater pipe pile
Parameters
Item / Model | DLKP 08 | DLKP 10 | DLKP 14 | DLKP 20 |
Eccentriv Torque(Nm) | 40 | 50 | 65 | 85 |
Vibration Frequency(Rpm) | 2800 | 2800 | 2800 | 2800 |
Operation Pressure(Bar) | 280 | 280 | 300 | 300 |
Exciting Force(T) | 36 | 45 | 58 | 75 |
Flow Demand(Lpm) | 155 | 168 | 210 | 255 |
Main Body Weight(Kg) | 1450 | 1550 | 1650 | 1800 |
Excavator Weight(T) | 20-24 | 24-32 | 30-40 | 40-45 |
Piling Depth(M) | 5-8 | 7-12 | 7-18 | 20 |
Clip mouth Weight(Kg) | C12-300 CHB-360 C30-350 | |||
Assistance Arm Weight(Kg) | A150-450 A200-550 A250-600 A300-750 A350-900 |

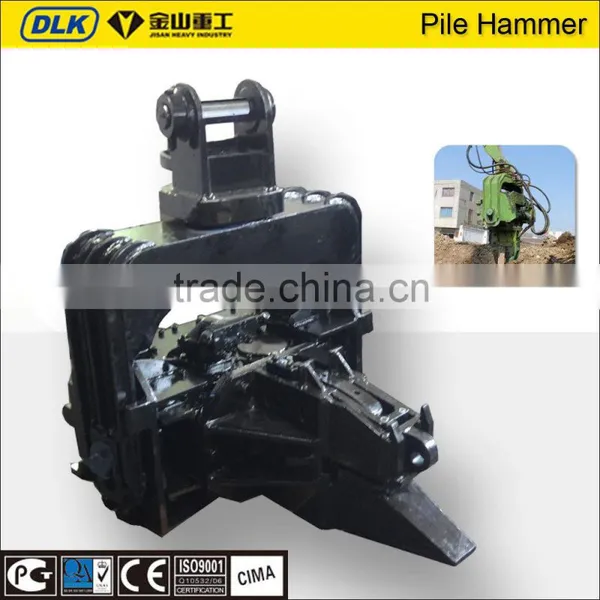

JISAN DLK series high frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.
The standard set of pile hammer include:
- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.
JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional excavator attachment manufacturers with ten years experience, specialized in R&D and manufacture of excavator attachment equipments.
Our products have been exported to many countries in the world including India, Saudi Arabia, Iran, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for pile driver, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
6. Trade Assurance: we are Alibaba VIP golden supplier, our trade assurance will guarantee your benefits.
If you have any questions, please contact me by below ways:
Mr. Scott Ning
Mobile: 0086-18615951533
Skype: scott5650
Website:
