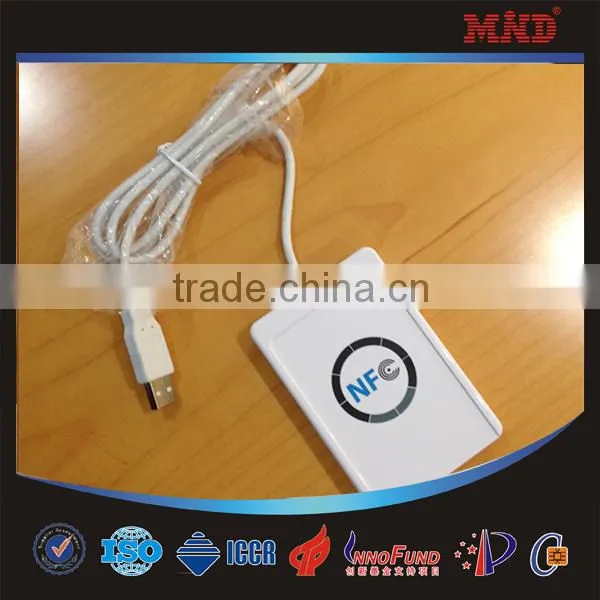

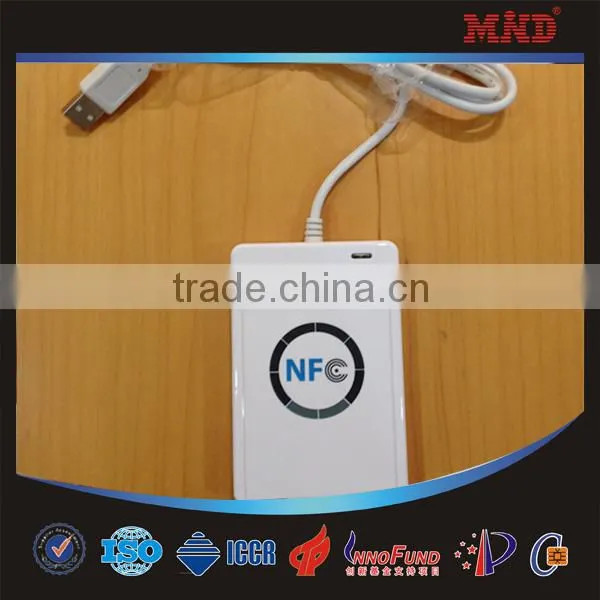

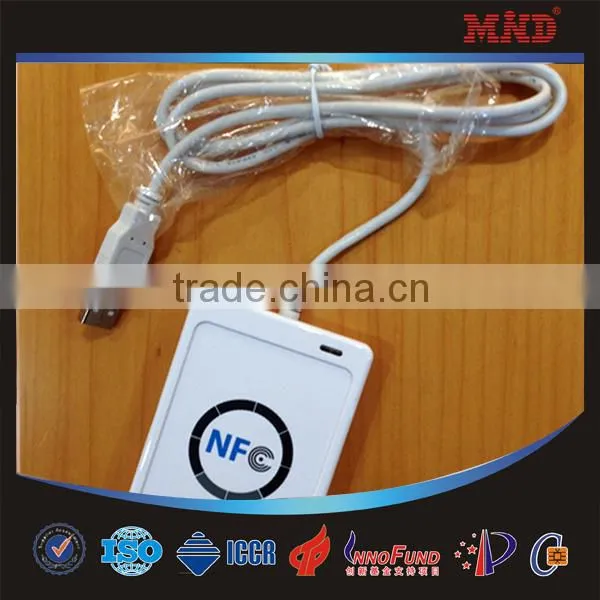

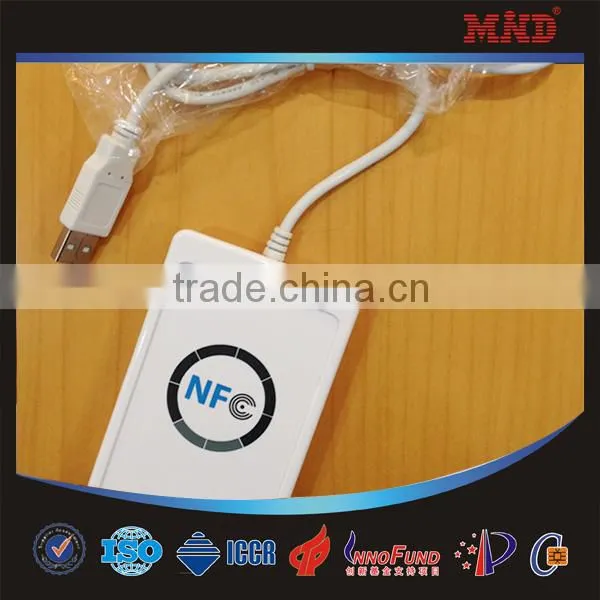

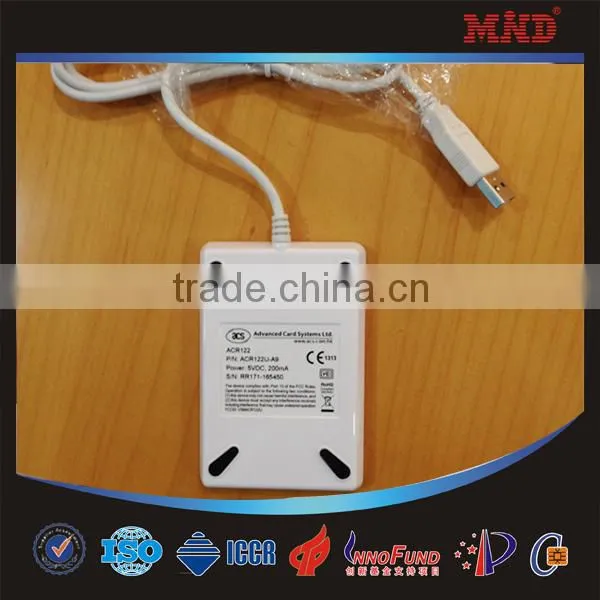

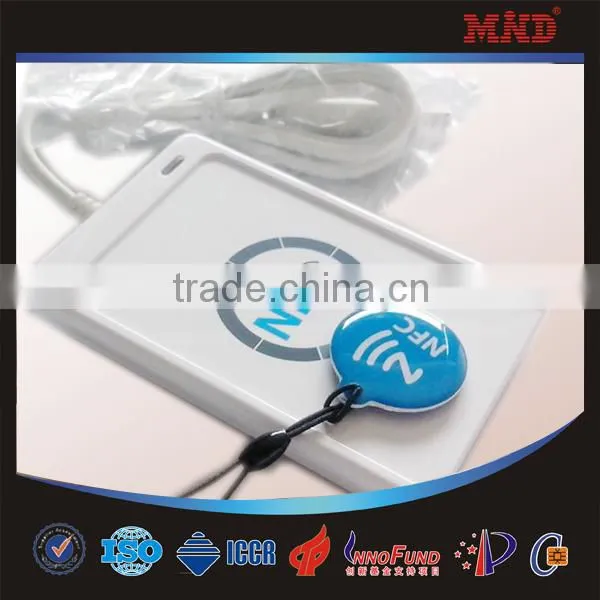

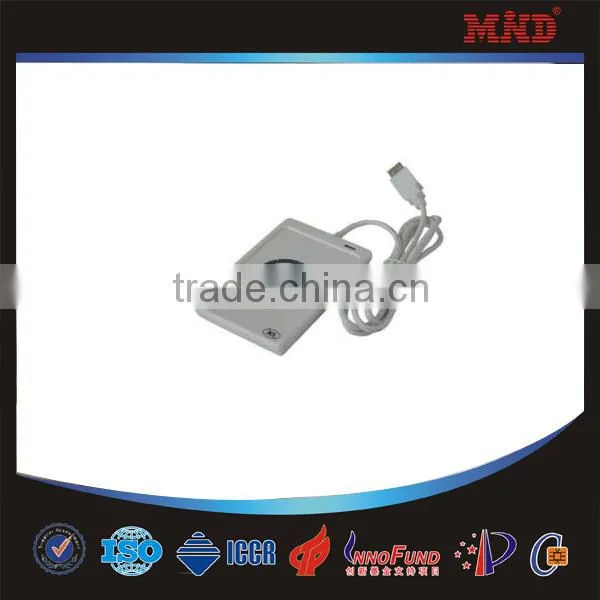

Help CenterMDR2 13.56mhz Long Range Rfid Reader/rfid Contactless Smart Card Reader
Related Products
-
MDR1 USB Rfid Reader/D8 Contactless Smart Card ReaderUS$ 48.5 - 63.3MOQ: 1 Piece -
MDR11 13.56mhz Long Range Rfid Reader/rfid Contactless Smart Card Reader Quality ChoiceUS$ 48.5 - 63.3MOQ: 1 Piece
-
MDR10 Acr122 Nfc Contactless Smart Card Reader Quality ChoiceUS$ 48.5 - 63.3MOQ: 1 Piece
-
MDR23 Track 1/2/3 Magnetic Card Reader/writer/magnetic Stripe Card Reader Writer Quality ChoiceUS$ 68 - 120MOQ: 1 Piece
-
MDR22 Track 1/2/3 Magnetic Card Reader/writer Quality ChoiceUS$ 68 - 120MOQ: 1 Piece
MDR16 White NFC ACR122U RFID smart card reader
Features
- USB 2.0 Full Speed Interface
- CCID Compliance
- Smart Card Reader:
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED
- User-controllable buzzer
Dimensions | 98 mm (L) x 65 mm (W) x 12.8 mm (H) |
| Weight | 70 g |
| Interface | USB Full Speed |
| Operating Distance | Up to 50 mm (depends on the tag type) |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0-50 °C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support | ISO14443 Type A & B |
| FeliCa | |
| 4 types of NFC (ISO/IEC18092) tags | |
| Compliance/Certifications | ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed |
| Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012 | |
| Operating System Support | Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win 7 x64, |
| Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, | |
| Windows CE 5.0 and 6.0,, Win Vista, Win 2008, Win 7, Win 8,Win 8 x 64, Win 2012 x64 | |
| Mac | |
| Linux | |
| Android 3.1 and above | |
| Application | e-Government |
| e-Healthcare | |
| Transportation Network Security |
1. Adopting raw material from the supplier of national citizen id card , which is safety and environmental protection of PVC material.
2. Anti scratch, more durable with overlay and protect film.
3. Best printing machine: Germany Heidelberg four-color printer, exquisite printing quality.
-Why Choose us?
-Cuz we have best sevice and quality!
1. Warranty date: 3 years
2.Free Replacement: If have inaccurate card within order, Chengdu Mind Golden System CO., LTD will provide free replacements.
3. On-time Delivery Guarantee: delay over 1 week, provide 3% free cards; delay over 2 weeks, provide 6% free cards.
Established in 1998, Chengdu Mind Golden Card System Co.,Ltd has own factory with 20000 sqaure meters. It is a leading card manufacturer. Chengdu Mind is specialized in the designing, researching, manufacturing and selling of RFID products and PVC cards over 16 years.
Our Team and Factory:
