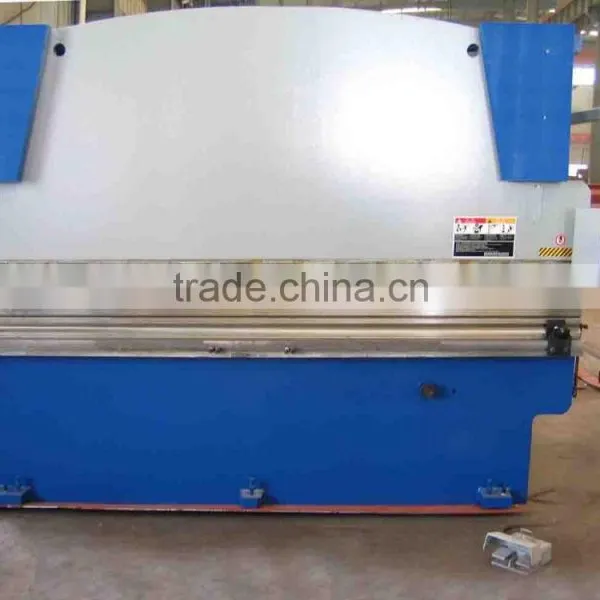

WF67Y-63/2500 Hydraulic Plate Bending Machine With CE

WF67Y-63/2500 Hydraulic Plate Bending Machine With CE thumbnail-1
WF67Y-63/2500 Hydraulic Plate Bending Machine With CE photo-1
US$ 13,500 - 13,832 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
LFM
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Liaoning, China
Brand Name LFM
Model Number WF67Y-63/2500
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Power Hydraulic
Automation Manual
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

WF67Y-63/2500 Hydraulic Plate Bending Machine

Characteristics

1. Steel welding frame, sufficient strength and rigidity.

2. Hydraulic driving system, safety and reliable operation, and fine appearance.

3. A motor-driving adjustment device of slipper stroke;

4. A motor-driving adjustment device for the plate-length positioning device, a manual fine adjuster, a counter, a wedge-type  precision adjustment device over an upper mould.

 Thus, processing precision can be assured.

5. The machine tool about the engine bed and behind is equipped with safety feature in the left and right as well as behind, the electric apparatus cabinet is equipped with circuit breaker and around is equipped with the emergency switch to install the system, and have the pedal switch, to guarantee operational safety.

6. Digital display device(DRO) is equipped;

7. CE is approved;

8. Kinds of colors for your choice/can be Customized according to user's demand;

9. CNC types are available, too;

Real Photos:

Kinds of colors for your choice/can be Customized according to user's demand;WF67Y-63/2500 Hydraulic Plate Bending Machine with CEWF67Y-63/2500 Hydraulic Plate Bending Machine with CE

WF67Y-63/2500 Hydraulic Plate Bending Machine with CE

Main Technical Data

Specifications

Unit

Parameter

Nominal Pressure

KN

630

Bench length

mm

2500

Pole distance

mm

2880

Slipper stroke

mm

100

Throat depth

mm

250

Max. opening height

mm

335

Max. stroke of Slipper

mm

100

Stroke times

time/min

10

Main power

KW

5.5

Pole thickness

mm

45

Slipper thickness

mm

45

Workbench thickness

mm

45

Dimension (L×W×H)

mm

2505×1725×2200

Package dimension (L×W×H)

mm

2800×1925×2300

N.W/G/W

T

5.7/7.5
Main Components

1. Hydraulics: Shanghai Yeer Hydraulic Co. Ltd.

2. Main electrical parts: CHINT GROUP(Zhejiang Xi'ou Electrical Appliance Co, Ltd)

3. Press-button: CHINT GROUP(Zhejiang Xi'ou Electrical Appliance Co, Ltd )

4.Oil pump: Shanghai Jisheng Hydraulic Pump Company

5. Transformer: Wuxi Zhenghuang Machine Co., Ltd.

6.Hydro-cylinder: Ma’anshan Yuhua Hydraulic Company

7. Main Hermetic Documents: imported from Japan

Factory Overview

WF67Y-63/2500 Hydraulic Plate Bending Machine with CE

WF67Y-63/2500 Hydraulic Plate Bending Machine with CE

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Packaging & Shipping

WF67Y-63/2500 Hydraulic Plate Bending Machine with CE

WF67Y-63/2500 Hydraulic Plate Bending Machine with CE

 WF67Y-63/2500 Hydraulic Plate Bending Machine with CE
