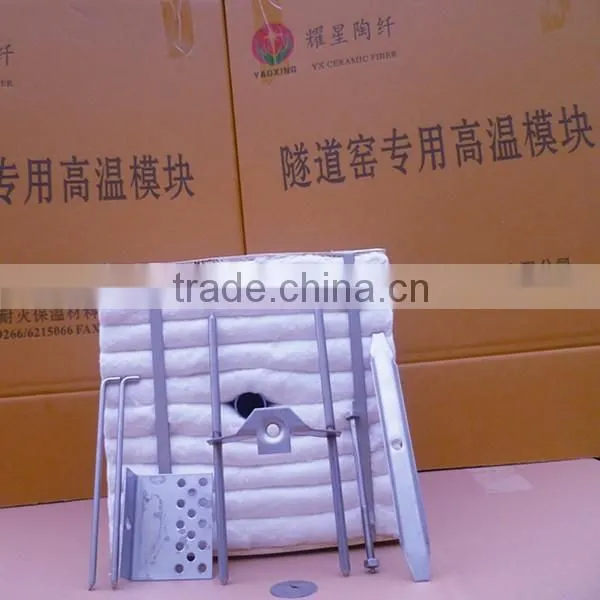

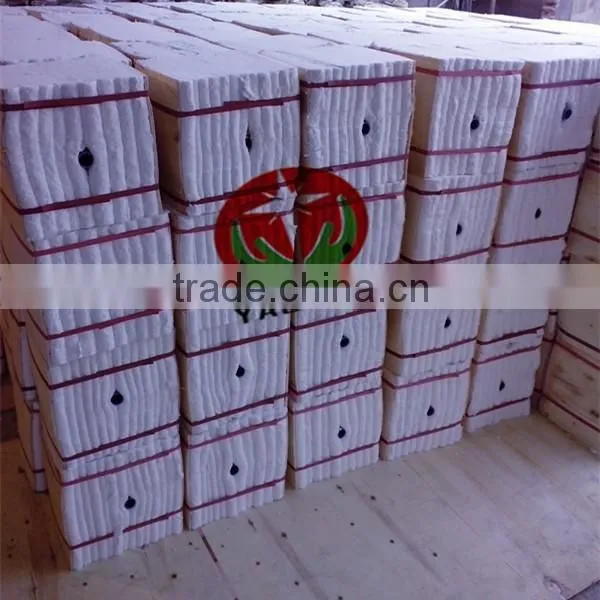

HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace

HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-1
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-2
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-3
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-4
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-5
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace thumbnail-6
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-1
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-2
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-3
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-4
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-5
HZ Ceramic Fiber Module Furnace Ceramic Fiber Module Heat Insulation Furnace photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yao Xing
Model Number:
YXTX-589
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Yao Xing
Model Number YXTX-589
Application heat insulation material, Tunnel Kiln
Grade HZ (High Zirconium)
Dimensions 300*300*200/250mm
Working Temperature 1350℃, 1300℃
Fiber Diameter 3μm
Thermal Conductivity 0.045
Shrinkage (1800℉, 3h) <3%



Product Description





Product Series:



1050 Ceramic Fiber Module YXTX-189

1260 Ceramic Fiber Module YXTX-289

1260 Ceramic Fiber Module YXTX-389

1400 Ceramic Fiber Module YXTX-489

1400 Ceramic Fiber Module YXTX-589







Technical Index:



Classification

Temperature

1050

1260

1400

Code

YXTX-189

YXTX-289

YXTX-389

TXTX-489

TXTX-589

Shrinkage

on

Heating (%)

950°C×24h

≤-3

1000°C×24h

≤-3

1100°C×24h

≤-3

1200°C×24h

≤-3

1350°C×24h

≤-3

Theoretical

Density

(kg/m3)

200±10

Shot Content

(φ≥0.25mm)(%)

≤15

Theoretical

Thermal Conductivity

(W/m·k)

0.050-0.060(200°C)

0.095-0.120(400°C)

0.160-0.195(600°C)

 Al2O3 (%)

≥44

≥45

≥45

52-55

38-40

Al2O3+SiO2 (%)

≥96

≥97

≥99

≥99

-

ZrO2 (%)

-

-

-

-

15-17

Al2O3+SiO2+ ZrO2 (%)

-

-

-

-

≥99

Fe2O3 (%)

≤1.2

≤1.0

≤0.2

≤0.2

≤0.2

K2O+Na2O (%)

≤0.5

≤0.5

≤0.2

≤0.2

≤0.2

 Specification (mm)

300×300×200,According to your requirements

Package

Woven Bag/Carton

Quality Control System

ISO9001-2000 ,ISO14001-1996

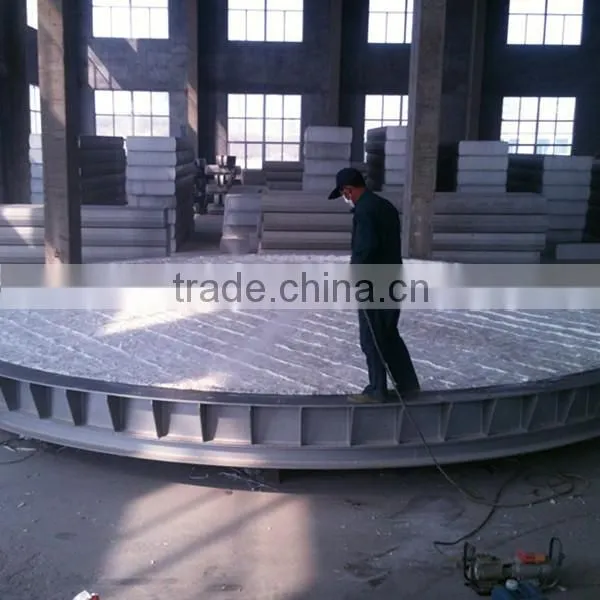

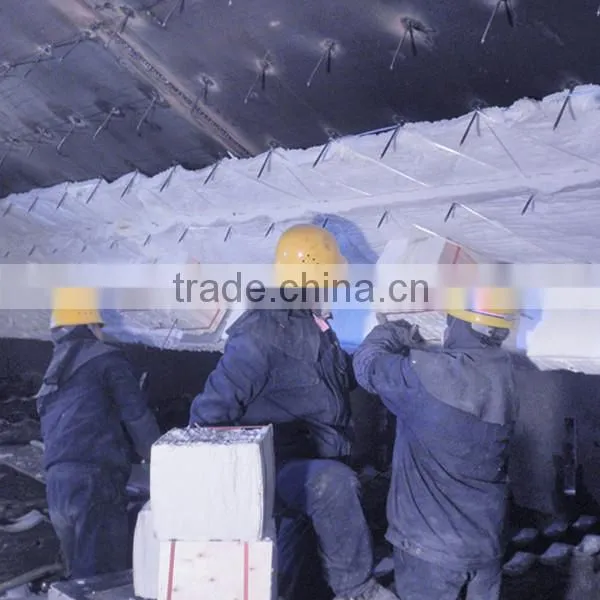

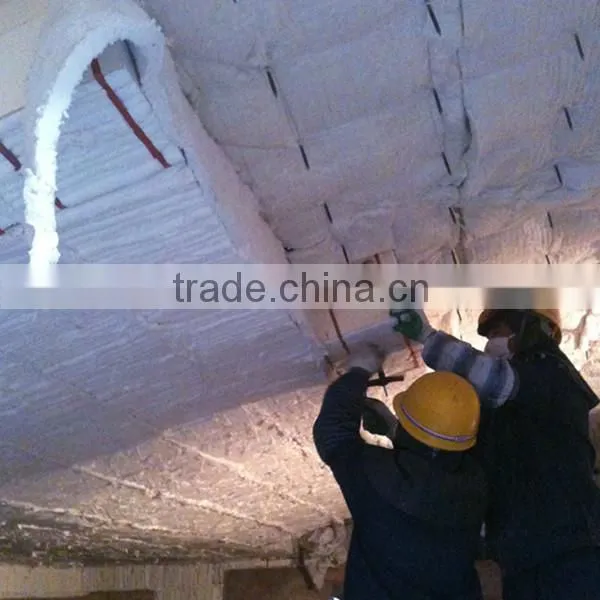

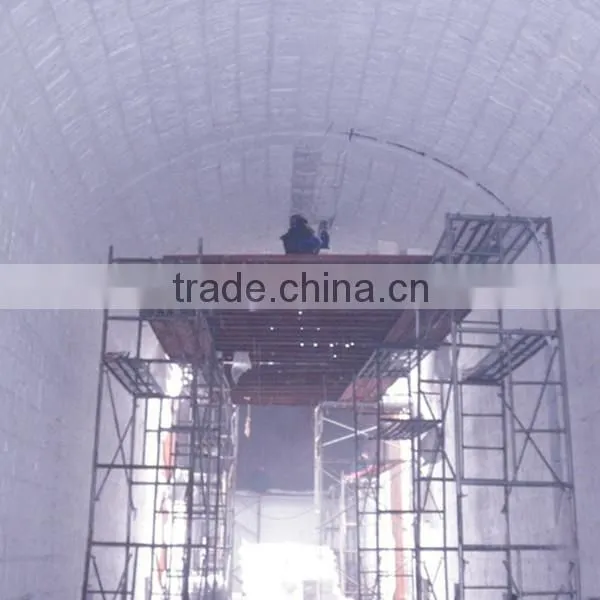

Application:

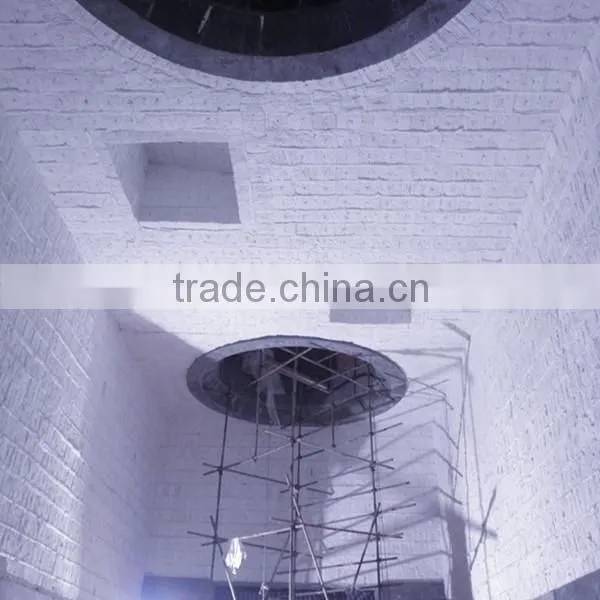

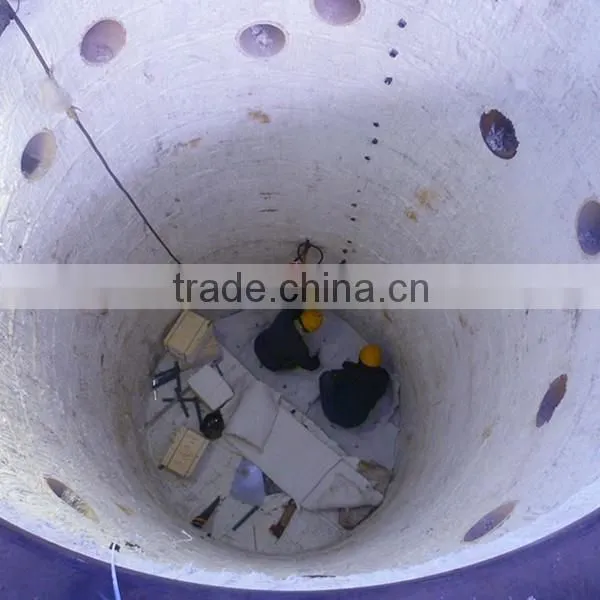

Furnace lines of various industrial furnace and heating equipment in metallurgy,

machine, construction and material, petrol-chemical and ferrous metal industry.



1.Oil heaters

2.Reformer

3.Forge furnaces

4.Process heaters

5.Preheating furnaces

6.Crude oil heaters

7.Fume incinerators

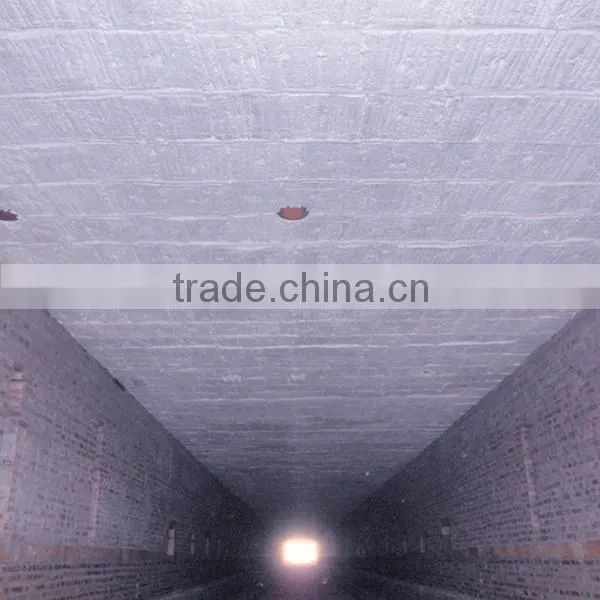

8.Tunnel kilns

9.Cracking Furnaces

10.Shuttle kilns

11.Annealing furnaces



HZ ceramic fiber module furnace ceramic fiber module heat insulation furnaceHZ ceramic fiber module furnace ceramic fiber module heat insulation furnaceHZ ceramic fiber module furnace ceramic fiber module heat insulation furnaceHZ ceramic fiber module furnace ceramic fiber module heat insulation furnace
