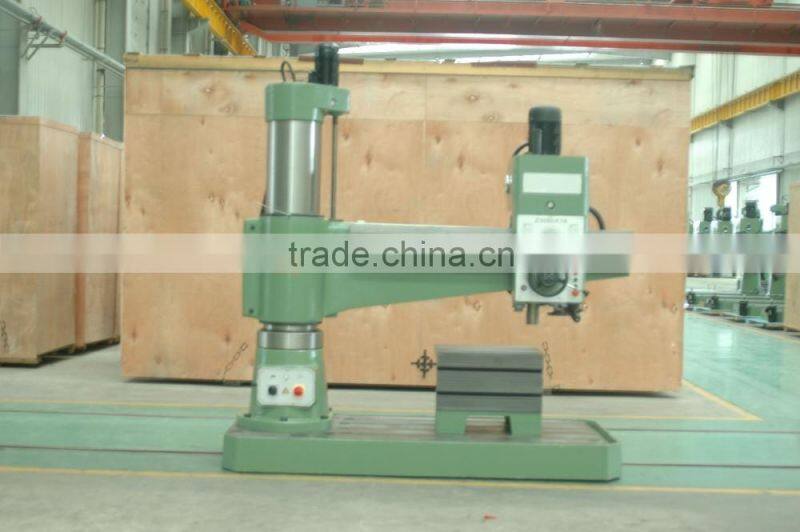

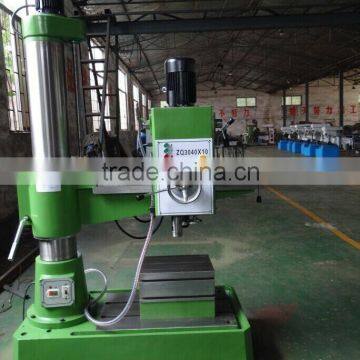

ZQ3040 Light Duty Radial Drilling Machine for Sale

FOB Price

US$ 4,300 - 5,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	0.10~0.25mm/r	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	ZQ3040x12 ZQ3040x13 radial drilling machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	2.2 kW
Dimension(LWH)	1800x810x2220mm	Weight	2000kg
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	No overseas service provided

ZQ3040 Light-duty radial drilling machine Technical Data

Product Introduction

ZQ3040 radial drilling machine has following features:

For drilling, counterboring, reaming, boring, spotting, tapping.
Optimum design conforming to international standard.
Flexible reliable; perfect feature.
High precision; high strength.
Economical cutting; long life.
Main parts and key parts are made by high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specialized equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable.
Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.

Main Technical Data

Specifications	Unit	ZQ3040×12 radial drilling machine	ZQ3040×13 radial drilling machine
Max. drilling dia. (steel/cast iron)	mm	Φ35 / 40 mm	Φ35 / 40
Spindle taper		MT.4	MT.4
Motor power	kW	2.2	2.2
Spindle speed	r.p.m	75-1200	75-1200
Spindle speed steps		6	12
Spindle feeds	mm/r	0.10,0.15,0.25	0.10,0.15,0.25
Spindle travel	mm	200	200
Distance from spindle centerto column surface	mm	300-1000	360-1300 mm
Distance from spindle nose to base surface	mm	260-1000	260-1050
Overall dimensions	mm	1600×705×2020	1800×810×2220
N.W.	kg	1530	2000
G.W.	kg	1600	2200
