Z3050/63/80 mid-sized hydraulic radial drilling machine for sale

FOB Price

USD $5,509 - $7,509 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	16~1250r/min	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Z3050/63/80 radial drilling machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	4~7.5kW
Dimension(LWH)	2500/3600x1450x3300mm	Weight	3500~11000kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

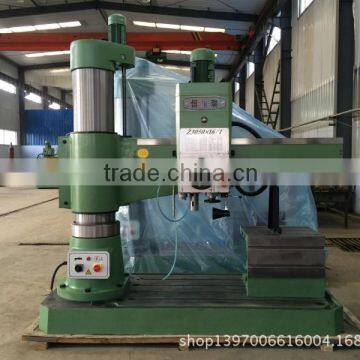

Z3050/63/80 mid-sized hydraulic radial drilling machine

Product Introduction

Z3050/63/80 radial drilling machine has following features:

Major parts and critical parts are made of high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specialized equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable. Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.
New painting technology and improved outward appearance reflects the specialty of machines.

Main Technical Data

Specifications	Unit	Z3050x16	Z3063 x18	Z3063 x20	Z3080 x 20	Z3080 x 25
Max. drilling dia	mm	50	63	63	80	80
Distance from spindle nose to table surface	mm	320~1220	450~1675	400~1600	550~1600	550~2000
Distance from spindle axis and column surface	mm	350~1600	360~1730	450~2000	450~2000	500~2500
Max. drilling dia	mm	50	63	63	80	80
Distance from spindle nose to table surface	mm	320~1220	450~1675	400~1600	550~1600	550~2000
Distance from spindle axis and column surface	mm	350~1600	360~1730	450~2000	450~2000	500~2500
Rocker rotary angle		360°	360°	180°	180°	180
Spindle travel	mm	315	280	400	400	450
Spindle speeds range	rpm	25~2000	34~1280	20~1600	20~1600	16~1250
Spindle speed step		16	12	16	16	16
Taper of spindle bore		MT5	MT5	MT5	MT6	MT6
Spindle feeding range	mm/r	0.04~3.20	0.10~1.00	0.04~3.20	0.04~3.20	0.04~3.2
Spindle feeding step		6	6	16	16	16
Main motor power	KW	4	5.5	5.5	7.5	7.5
power of radial lift motor	KW	0.75	1.5	1.5	1.5	3
Power of coolant motor	KW	0.09	0.09	0.09	0.09	0.09
