High Reliability Rectifier High Voltage Silicon Diode

High Reliability Rectifier High Voltage Silicon Diode thumbnail-1
High Reliability Rectifier High Voltage Silicon Diode thumbnail-2
High Reliability Rectifier High Voltage Silicon Diode thumbnail-3
High Reliability Rectifier High Voltage Silicon Diode thumbnail-4
High Reliability Rectifier High Voltage Silicon Diode thumbnail-5
High Reliability Rectifier High Voltage Silicon Diode thumbnail-6
High Reliability Rectifier High Voltage Silicon Diode photo-1

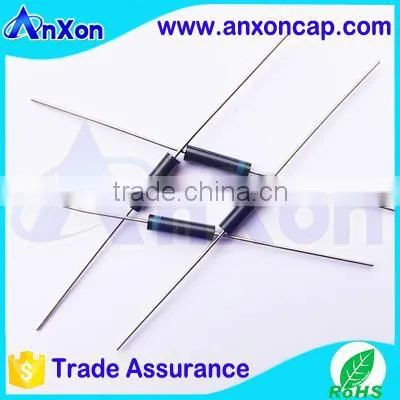

High Reliability Rectifier High Voltage Silicon Diode photo-2
High Reliability Rectifier High Voltage Silicon Diode photo-3
High Reliability Rectifier High Voltage Silicon Diode photo-4
High Reliability Rectifier High Voltage Silicon Diode photo-5
High Reliability Rectifier High Voltage Silicon Diode photo-6
US$ 0.1 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HVCA
Model Number:
HV37-10
Contact Supplier Request Quote Chat Now
Cixi AnXon Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HVCA
Model Number HV37-10
Type Rectifier Diode
Package Type Through Hole
Max. Forward Voltage 25V
Max. Reverse Voltage 10KV
Max. Forward Current 350mA
Max. Reverse Current 5uA/50uA
Product Description

1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate



Product name

 Rectifier Diode

Repetitive Peak Reverse Voltage (VRRM)

10KV

Average Forward Current (IF(AV))

350mA

Maximum Surge Current (IFSM)

30A

Peak Forward Voltage (VFM)

25V

Peak reverse current (IRRM1)

5uA

Peak reverse current (IRRM2)

50uA

Maximum Reverse Recovery Time (Trr)

100nS

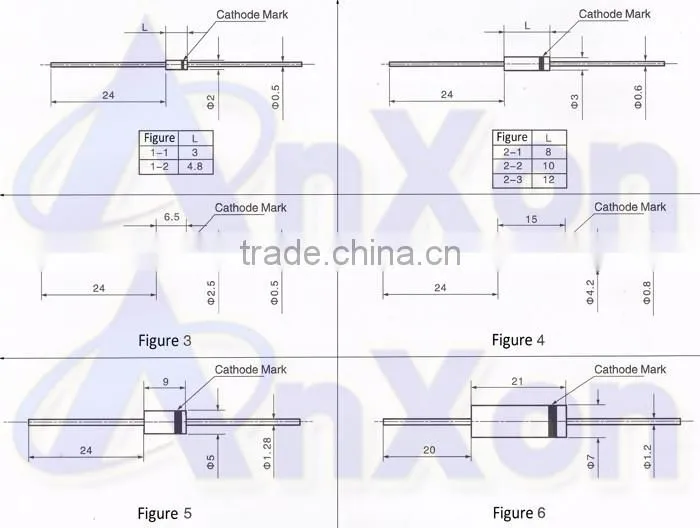

Dimension

 D4.2xL15mm

Operating Temperature

-40~+100℃

High reliability Rectifier High Voltage Silicon Diode

High reliability Rectifier High Voltage Silicon Diode

High reliability Rectifier High Voltage Silicon Diode

High reliability Rectifier High Voltage Silicon Diode

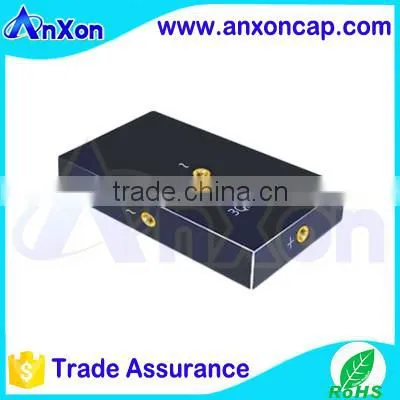

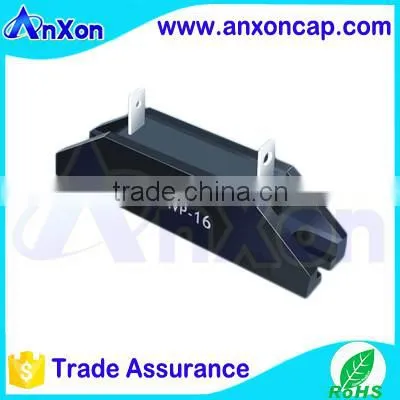

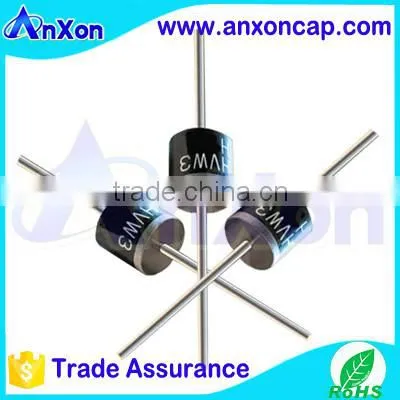

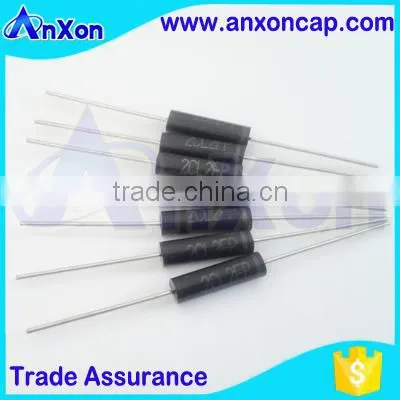

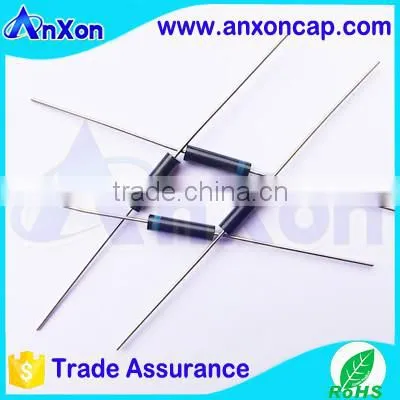

Photos

High reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon DiodeHigh reliability Rectifier High Voltage Silicon Diode

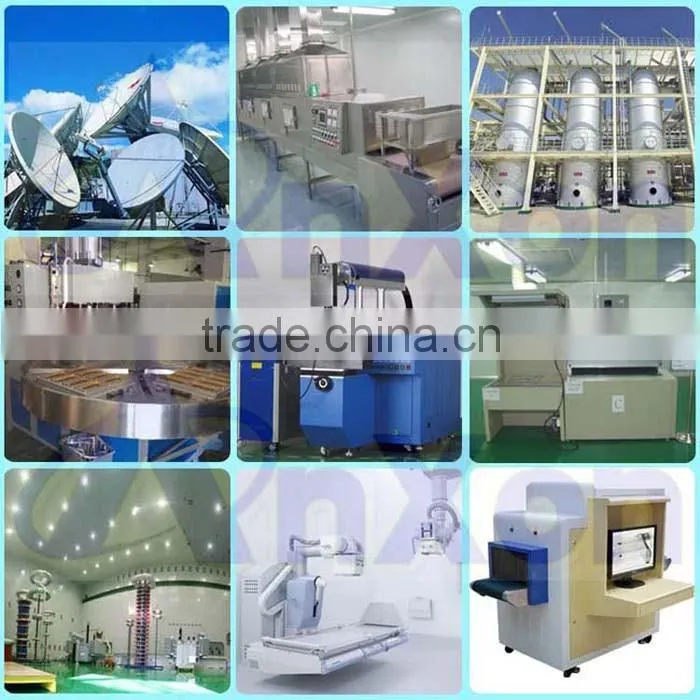

Application

High reliability Rectifier High Voltage Silicon Diode

Shipping

 High reliability Rectifier High Voltage Silicon Diode

FAQ



Q1: What is your MOQ?

A1: Normally, 50pcs-100pcs is our MOQ, but for samples, we will give you special MOQ.



Q2: Which port you ship?

A2: Ningbo or Shanghai.



Q3: What payment you use?

A3: T/T or Western Union both ok. If you would like place order on Alibaba, also acceptable.



Q4: How long is your lead time?

A4: Normally 10-20 days.



Q5: How long warranty for your products?

A5: One year.

Our Service

 High reliability Rectifier High Voltage Silicon Diode

Contacts

High reliability Rectifier High Voltage Silicon Diode

High Quality,Good Price,Fast Delivery,Please send us your RFQ!
