Specifications
1.lifting weight:100kg2.lifting height:6-10m
3.lightsome and beautiful
4.easy to operate
Specifications:
Single Aluminum-alloy-mast Lifts are made up of high grade aluminum profile and equiped with the universal wheels, easily pushed around to the designated sites,beautiful structure,compact mainbody,light weighted,safe and reliable;The control panels are available on the lift platforms and ground, it is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations,exhzibition hall and shopping malls, it is a good helper for the equipment maitenance,paint decoration; Easily go through the regular doors and elevators,of low energy consumption, no pollution, do no damage to the grounds.The lifting height ranges from 3m to 10m and lifting capacity varies from 100 to 150kg.The power sources could be 220V,380V or chargeable battery.
Models:
Item |
SJYL0.1-6 |
SJYL0.1-8 |
SJYL0.1-10 |
|
Capacity(kgs) |
100 |
|||
Min.Lifting height(m) |
1.98 |
1.98 |
2.3 |
|
Max.Lifting height(m) |
6 |
8 |
10 |
|
Working Height(m) |
7.5 |
9.5 |
11.5 |
|
Platform size(m) |
0.55*0.55 |
0.55*0.55 |
0.55*0.55 |
|
Overall dimension(m) |
1.26*0.8*1.98 |
1.4*0.85*1.98 |
1.5*0.87*2.3 |
|
Net weight(kg) |
380 |
450 |
480 |
|
|
Power |
Current |
AC |
||
Voltage |
220 |
|||
Kilowatt |
0.75/1.1 |
|||
Phase |
2 |
|||
Main material |
High strength aluminum alloy |
|||
Frame materail |
High strength steel |
|||
Oil cylinder |
Accurate grinding hydraulic oil cylinder |
|||
Power supply |
Italian joint venture pumping station |
|||
Control mode |
Using control pane and control box,all ok! |
|||

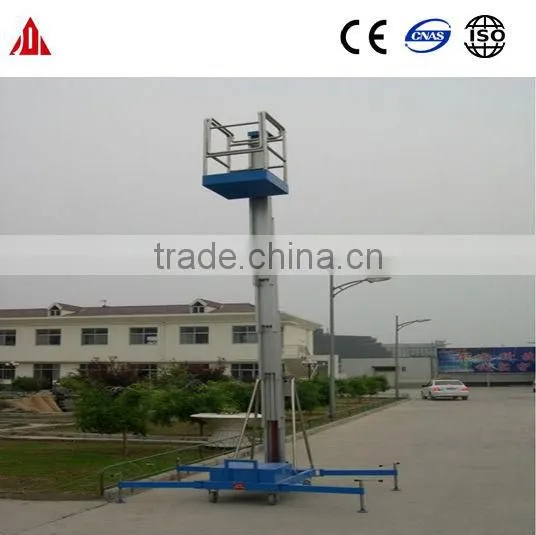

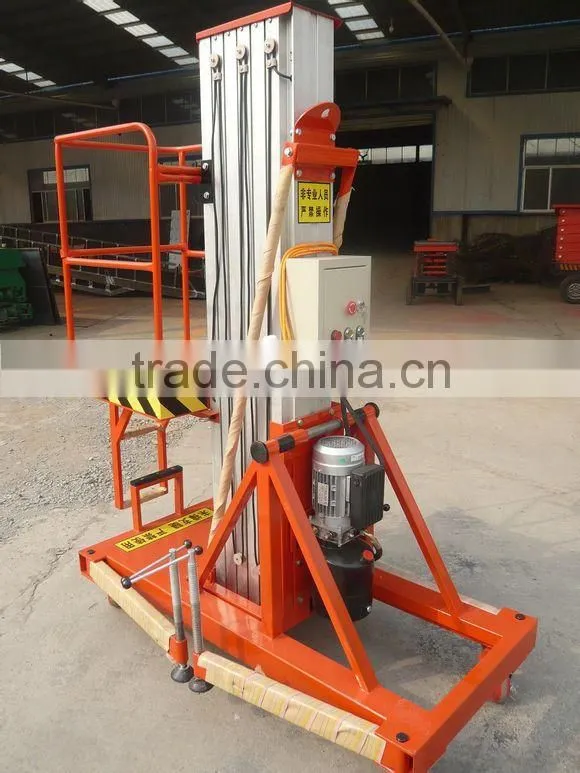

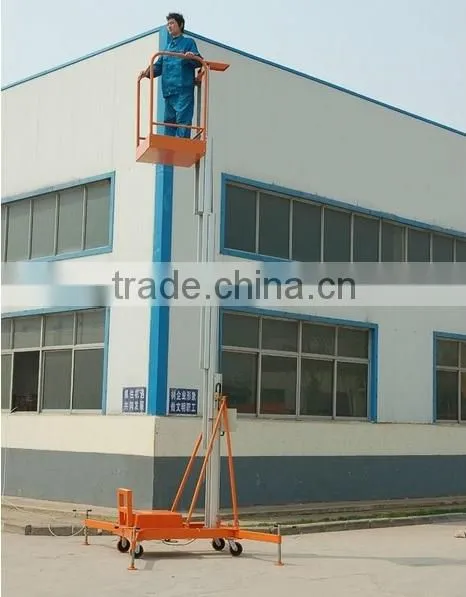

Pictures show:
