Specifications
telescopic aerial work platform:pact main body
b.easily pushed
c.beautiful structure
d.light weighted
aerial working platform:

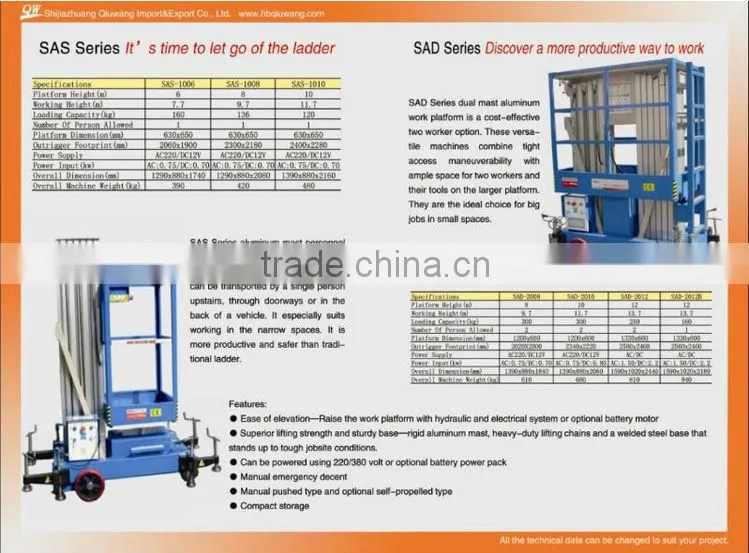

SAS Series aluminum mast personnel work platform. One worker can climb in the platform and get straight to work. It can be transported by a single person upstairs, through doorways or in the back of a vehicle. It especially suits working in the narrow spaces. It is more productive and safer than traditional ladder.
The detailed information is as follow:
Model |
|
SJYL0.1-6 |
SJYL0.1-8 |
SJYL0.1-10 |
Lift Rated Capacity |
kg |
100 |
||
Working Height |
mm |
7500mm |
9500mm |
11500mm |
Platform Height |
mm |
6000 |
8000 |
10000 |
Overall Length |
mm |
1260mm |
1400mm |
1500mm |
Overall Width |
mm |
800 |
850 |
850 |
Overall Height |
mm |
1980 |
1980 |
2300 |
Overall Net Weight |
kg |
380 |
450 |
480 |
Ground Clearance |
mm |
80 |
||
Platform Size |
mm |
550*550 |
||
Wheel Base |
mm |
1184 |
1444 |
|
Lifting Motor(AC) |
V/KW |
110-230/1.5 |
||
Lifting Motor(DC) |
V/KW |
12/2.5 |
||
Max Lifting speed (up/down) |
Sec |
58/40 |
62/43 |
70/46 75/54 |
Tyre Size (Front/Back) |
mm |
Ø180x50/Ø200x50 |
||
Battery |
V/Ah |
2x12/150 |
||
Integrated Charger |
V/A |
12/15 |
||
Features:
A. Ease of elevation—Raise the work platform with hydraulic and electrical system or optional battery motor
B. Superior lifting strength and sturdy base—rigid aluminum mast, heavy-duty lifting chains and a welded steel base that stands up to tough jobsite conditions.
C. Can be powered using 220/380 volt or optional battery power pack
D. Manual emergency decent
E. Manual pushed type and optional self-propelled type
F. Compact storage
All the technical data can be changed to suit your project,A comprehensive one year structural and components warranty is offered for all QW platform.
