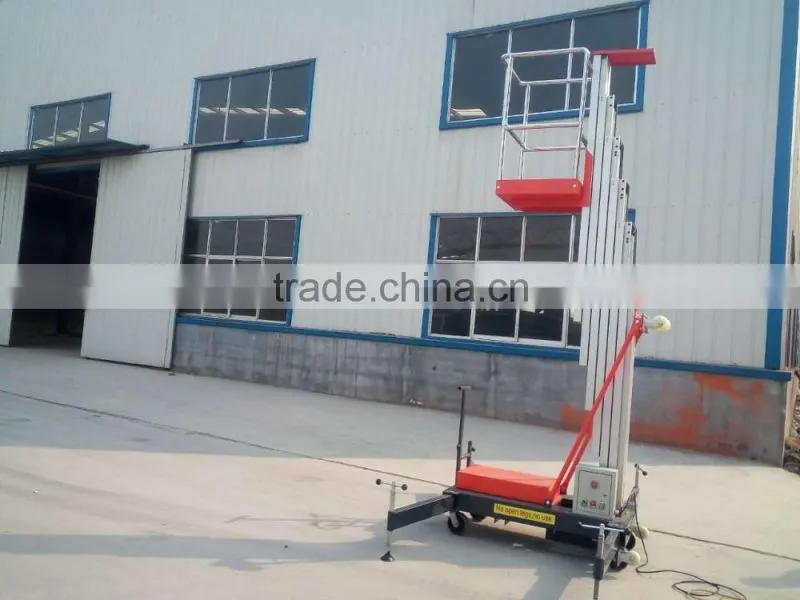

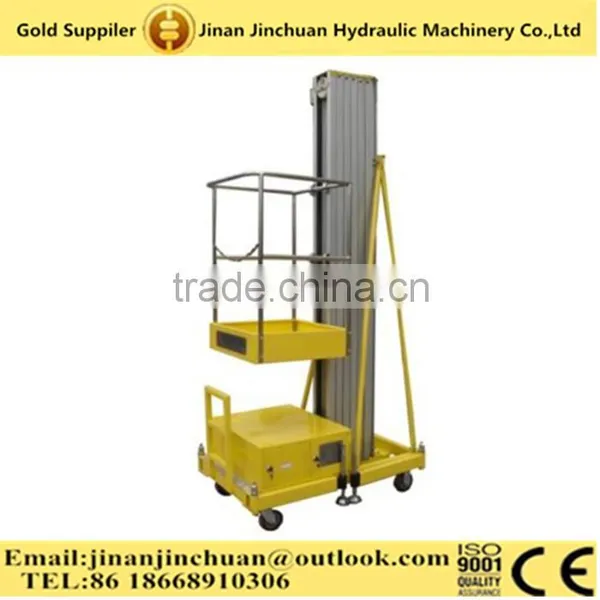

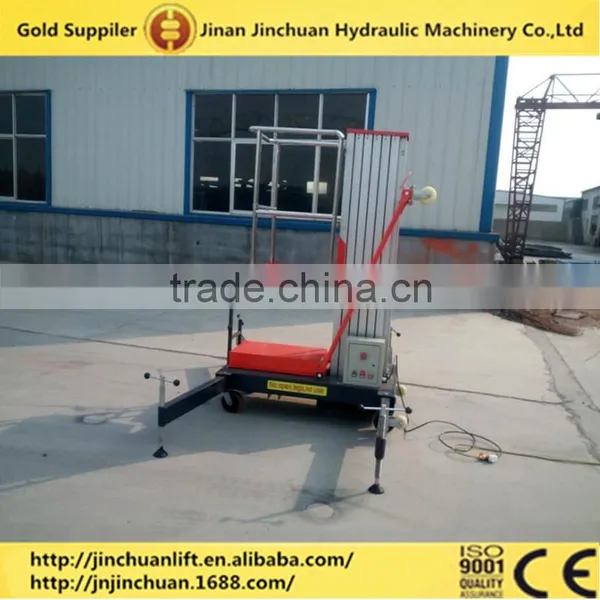

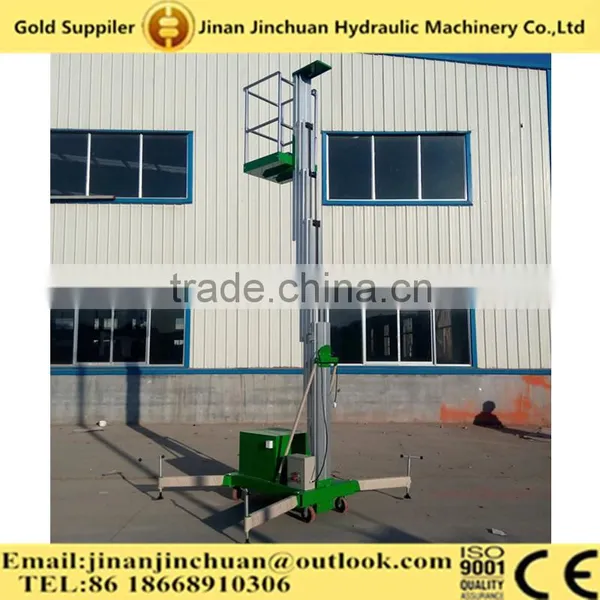

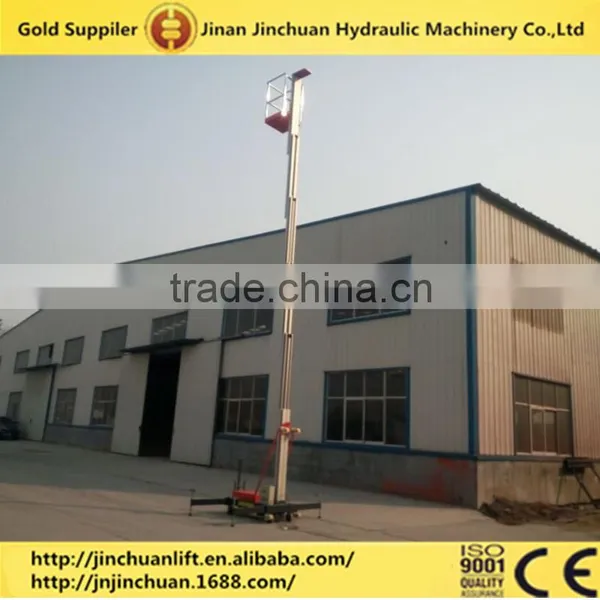

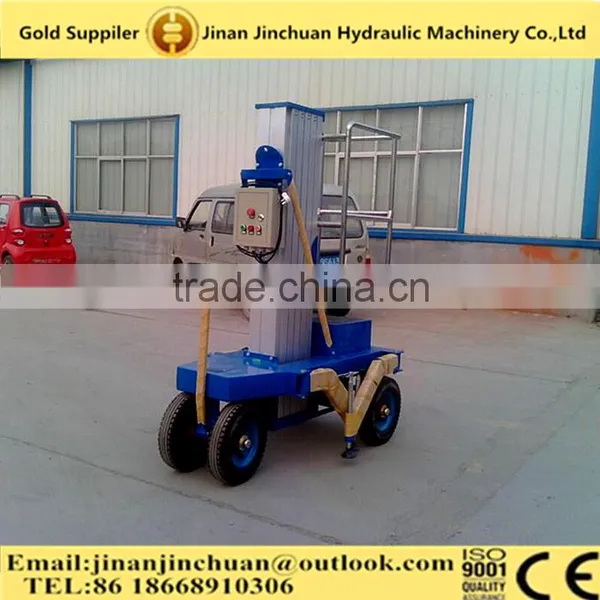

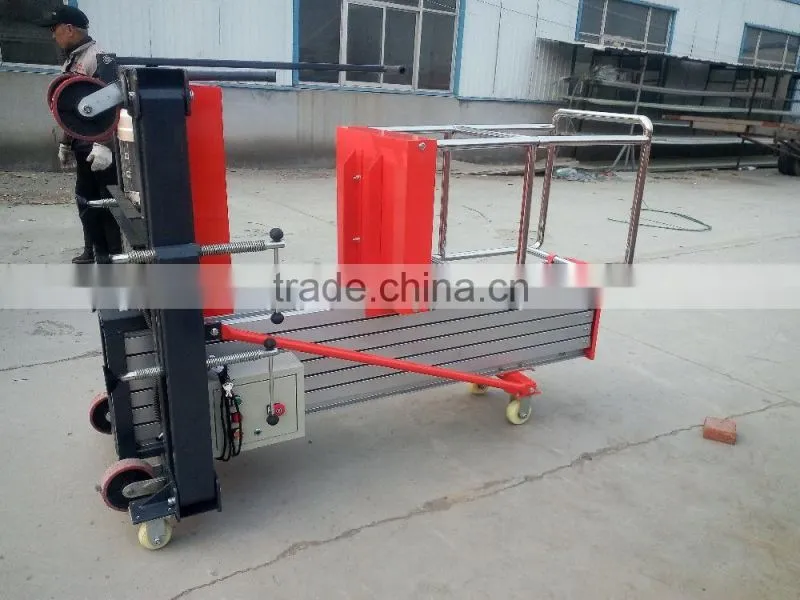

Help CenterHydraulic One Mast Aluminum Alloy Lift Platform/single Column Aluminum Alloy Lift Platform
Related Products
-
Hydraulic Double Mast Aluminum Alloy Lift Table/ Small ElevatorsUS$ 4,400 - 5,400MOQ: 1 Set -
Van Wheelchair LiftUS$ 1,000 - 10,000MOQ: 1 Set
-
Outdoor Elevator for HomeUS$ 1,000 - 10,000MOQ: 1 Set
-
Single Mast ElevatorUS$ 800 - 10,000MOQ: 1 Set
-
Double Mast Hydraulic Mobile Aliminum Aerial Work LiftUS$ 3,500 - 5,000MOQ: 1 Set
1. This series of products subject structure using high-strength aluminum alloy material.
2. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
3. Electrical control or manual pump control when the electricity is not available.

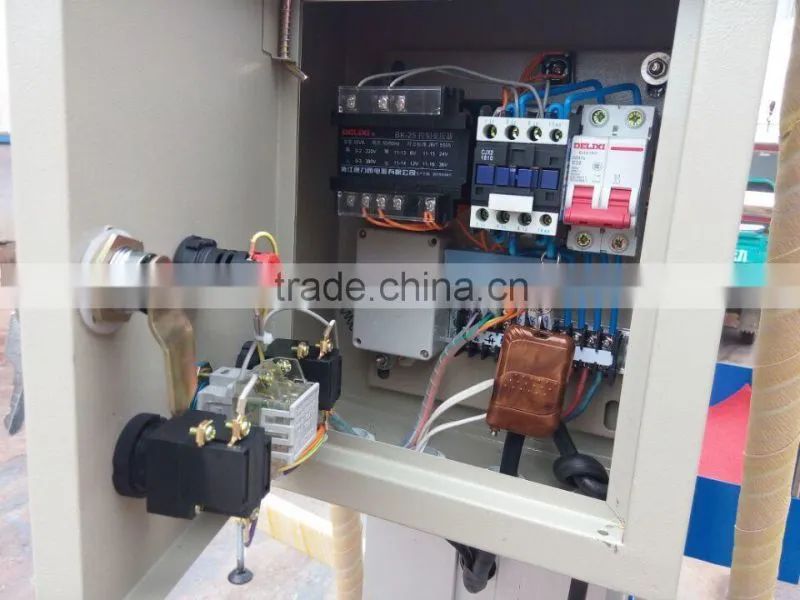

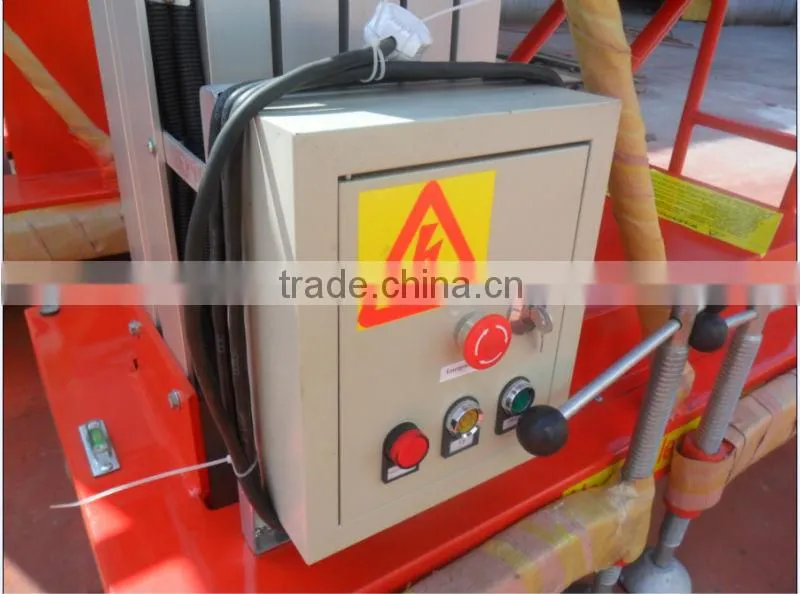

4. Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.

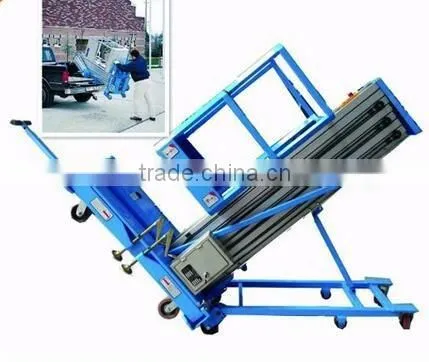

5. Easily pushed around to the designated sites
6. Low energy consumption, no pollution, do no damage to the grounds
7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources
| mast | type | platform height(m) | load capcity(kg) | platform size(m) | power(kw) | weight(kg) | dimension(m) |
| single mast | QYLH6-100-1 | 6 | 100 | 0.6*0.6 | 1.1 | 320 | 1.3*0.82*1.98 |
| QYLH8-100-1 | 8 | 100 | 0.6*0.6 | 1.1 | 320 | 1.3*0.82*1.98 | |
| QYLH10-100-1 | 10 | 100 | 0.6*0.6 | 1.1 | 360 | 1.3*0.82*2.2 | |
| double mast | QYLH6-250-2 | 6 | 250 | 1.37*0.6 | 1.5 | 450 | 1.55*0.85*1.65 |
| QYLH8-250-2 | 8 | 250 | 1.37*0.6 | 1.5 | 560 | 1.55*0.85*2.0 | |
| QYLH10-250-2 | 10 | 250 | 1.37*0.6 | 1.5 | 680 | 1.65*0.85*2.0 | |
| QYLH12-200-2 | 12 | 200 | 1.47*0.6 | 1.5 | 720 | 1.65*0.85*2.0 | |
| QYLH14-200-2 | 14 | 200 | 1.47*0.6 | 1.5 | 780 | 1.55*0.85*2.5 | |
| three mast | QYLH10-250-3 | 10 | 250 | 1.58*0.8 | 1.5 | 1080 | 1.88*1.0*2.05 |
| QYLH12-250-3 | 12 | 250 | 1.58*0.8 | 1.5 | 1160 | 1.88*1.0*2.05 | |
| QYLH14-200-3 | 14 | 200 | 1.6*0.8 | 2.2 | 1060 | 1.9*1.2*2.5 | |
| QYLH16-200-3 | 16 | 200 | 1.6*0.8 | 2.2 | 1120 | 2*1.2*2.5 | |
| four mast | QYLH12-250-4 | 12 | 250 | 1.58*0.8 | 2.2 | 1050 | 1.95*1.2*2 |
| QYLH14-200-4 | 14 | 200 | 1.6*0.8 | 2.2 | 1250 | 1.9*1.2*2.5 | |
| QYLH16-200-4 | 16 | 200 | 1.6*0.8 | 2.2 | 1480 | 2*1.2*2.5 | |
| QYLH18-250-4 | 18 | 250 | 1.58*0.8 | 2.2 | 1700 | 2.15*1.35*2.96 | |
| six mast | QYLH18-160-6 | 18 | 160 | 1.6*0.9 | 2.2/1.5 | 1450 | 2.1*1.2*2.1 |
| QYLH20-160-6 | 20 | 160 | 1.6*0.9 | 2.2/1.5 | 1520 | 2.26*1.4*2.3 | |
| QYLH22-160-6 | 22 | 160 | 1.58*0.88 | 2.2/1.5 | 1880 | 2.26*1.4*2.5 | |
| QYLH24-160-6 | 24 | 160 | 1.58*0.88 | 2.2/1.5 | 1980 | 2.26*1.4*2.7 |
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your
If you like our lift platform or you have any questions, pls feel free to ask me, I will answer you as soon as possible. You can contact me by Skype or Email, other methods.
