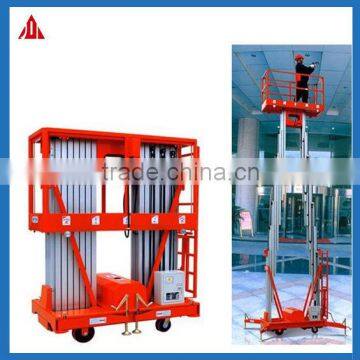

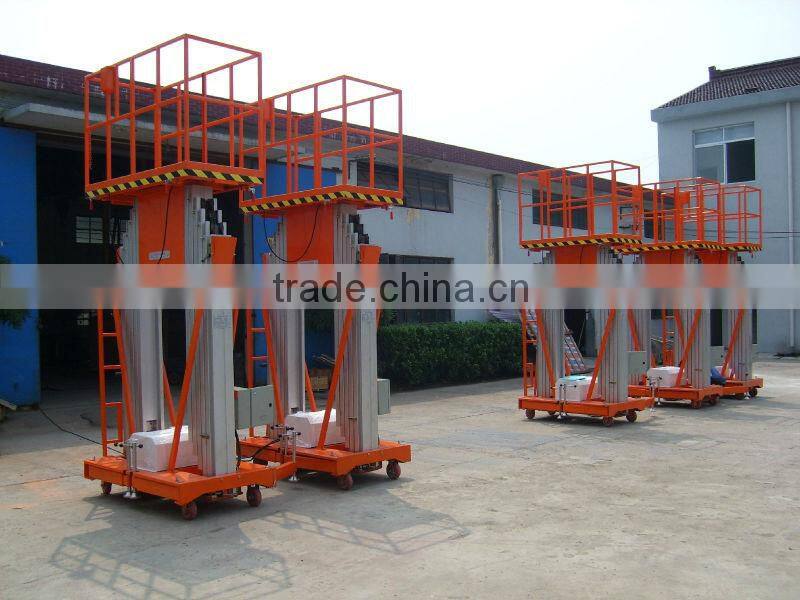

9meter Single Mast Lift Mobile Portable Aluminum Work Platform

Name: 9meter Single Mast Lift Mobile Portable Aluminum Work Platform
Brand: jinchuan
SKU: 102709901
Availability: InStock

Jinan Jinchuan Hydraulic Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

jinchuan

Model Number:

SJYL0.2-12

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name jinchuan

Model Number SJYL0.2-12

Lift Mechanism Telescoping Lift

Lift Drive / Actuation Hydraulic

Power 1.5kw

Rated Loading Capacity 200klg

Min. Lifting Height 1.98m

Max. Lifting Height 10m

Table Size 1.55*0.6m

Overall Dimensions 1.8*0.87*1.98m

Weight 800kg

Certification ISO9001

Warranty 12months

Model	Lifting height	Capacity	Platform size	Overall dimension	Power supply	Net weight
SJYL0.2-6	6m	200kg	1.3*0.6m	1.350.851.98m	AC220v,1.5kw,2ph	600
SJYL0.2-8	8m	200kg	1.4*0.6m	1.450.851.98m	AC220v,1.5kw,2ph	700
SJYL0.2-10	10m	200kg	1.45*0.6m	1.550.87198m	AC220v,1.5kw,2ph	760
SJYL0.2-12	12m	200kg	1.55*0.6m	1.800.901.98m	AC220v,1.5kw,2ph	800
SJYL0.2-14	14m	200kg	1.55*0.6m	1.850.902.3m	AC220v,1.5kw,2ph	860
Features 1)Adopting high strength aluminum molding material keeps deflecting degree and swing tiny. 2)Equipped with overload safety protection device 3) Equipped with safeguard valve to avoid hydraulic pipe rupture 4)It installs the emergency manual hydraulic valve to cope with power cut. 5)It also can add stretch platform to extend to the desired place when the platform length isn’t enough. 6)Double chains greatly improve the safety factor. 7)Adopt emergency stop button multiple safety protection measures. 8)The translatable supporting legs can ensure working dead zone minimization . 9)Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.

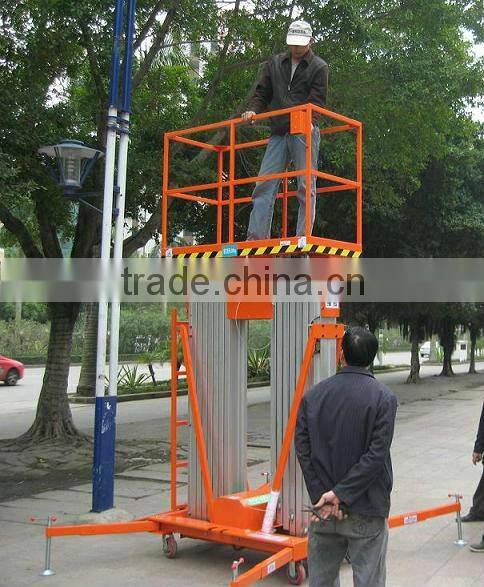

Applications They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters , exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses.
Power 1)Depending on the local power sources. 2)The power sources can be 110V 220V 380V AC power, DC power
