Telescopic Aluminum Double Man Hydraulic Lift Table/skylift Hydraulic Electric Man Lift
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
jinchuan
Model Number:
SJYL0.2-8
Lift Mechanism:
Lift Chain
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6-14m Aluminum Two Man Lift/mobile Telescoping Man Battery Lifter /two Man SkyliftNegotiableMOQ: 1 Set -
Movable Hydraulic Aluminum Double Person Lift Table LifterNegotiableMOQ: 1 Set
-
Double Columns Electric Hydraulic Aluminum Alloy Table Lifter for Lifting One Person up to 12-15 MetersNegotiableMOQ: 1 Set
-
Hydraulic Single Mast Aluminum One Man Lift Platform/mobile Aerial Aluminum Elevated Work PlatformUS$ 2,200 - 2,600MOQ: 1 Set
-
6-10 Meter Protable Single Mast Aluminum Telescoping Lift TableUS$ 1,800 - 2,500MOQ: 1 Set
Brand Name
jinchuan
Model Number
SJYL0.2-8
Lift Mechanism
Lift Chain
Lift Drive / Actuation
Hydraulic
Power
AC220v,2phase,1.5kw
Rated Loading Capacity
200kg
Min. Lifting Height
1980mm
Max. Lifting Height
8000mm
Table Size
1400*600mm
Overall Dimensions
11450*850*1980mm
Weight
550kg
Certification
CE ISO9001
Warranty
12months

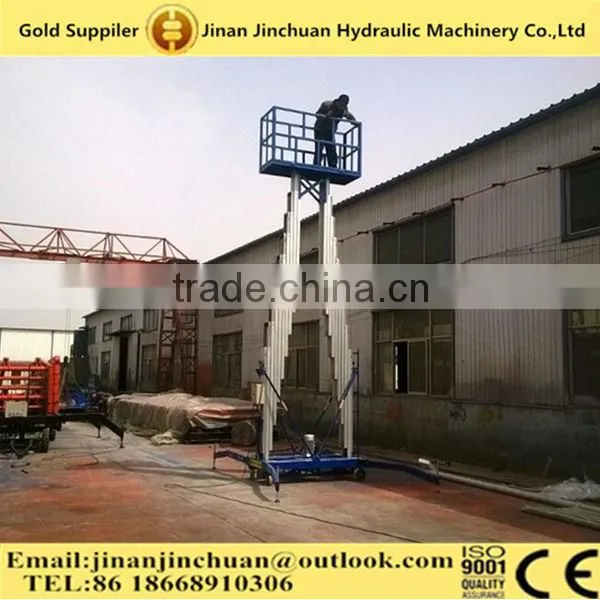

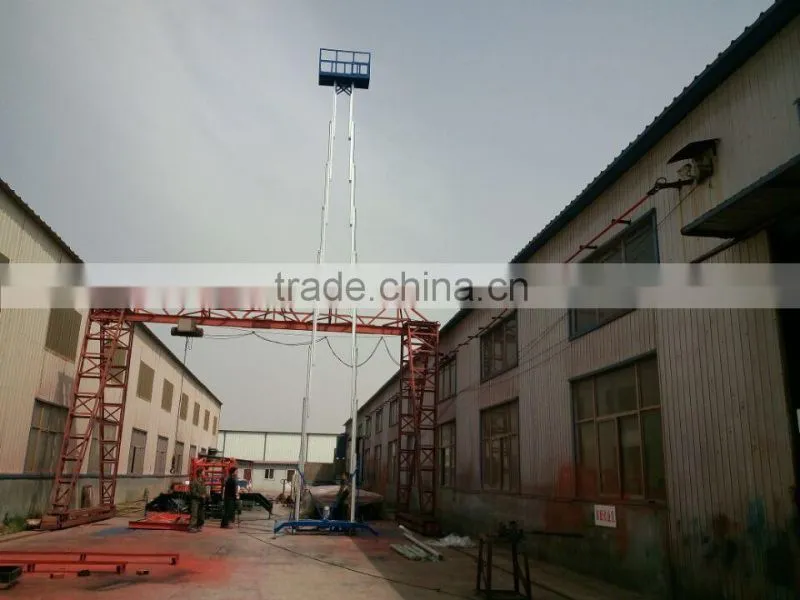

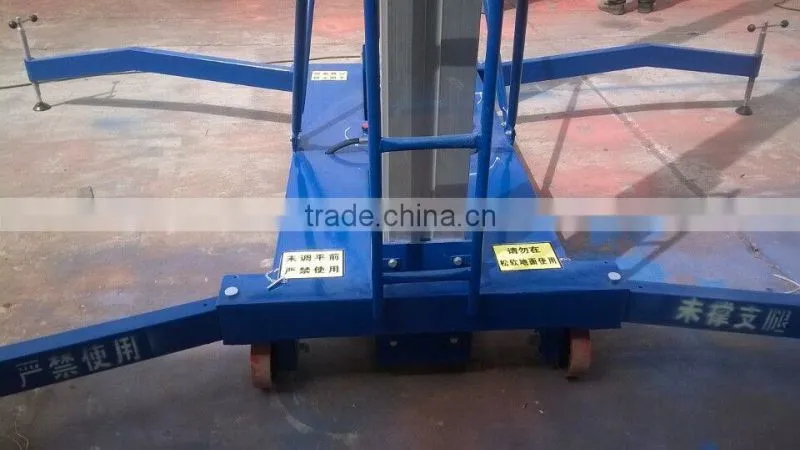

Aluminum alloy hydraulic lift table: It is a new-era product through brand-new design, adopts new aluminum molding material. The lift table has tiny swing, because of high-strength molding material. Handy and light appearance makes it freely exert maximum lifting ability in limited room. As a result, this product makes it easy to carry out high-altitude working by one person. The power sources could be 220V/380V or chargeable battery.
Introduction:
1. This lift's working height: 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m; Can be controlled on the table or on the ground by remoter control.
2. The lift platform, high-duty aluminum alloy structure is suitable for aloft work. It is equipped with security rope and safety protection devices. Even if working at the 30 meter high, it's very safe and reliable. Our wheels can be moved easily.
3. It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.
4. This kind of platforms has 2 types, one is equipped with single ladder and the other has double ladders on both sides. The biggest lifting height is 30 meters, the lifting capacity ranges from 100kg to200kg.
Advantage:
Mobile Aluminum Lifts with high-strength aluminum alloy high-quality aluminum alloy, beautiful in appearance, small size, light weight, lifting balance, safe and reliable, no pollution and can operate from up to down, smooth lifting, Operate conveniently in narrow space, Work efficient and balance well.
They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters, exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses
Introduction:
1. This lift's working height: 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m; Can be controlled on the table or on the ground by remoter control.
2. The lift platform, high-duty aluminum alloy structure is suitable for aloft work. It is equipped with security rope and safety protection devices. Even if working at the 30 meter high, it's very safe and reliable. Our wheels can be moved easily.
3. It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.
4. This kind of platforms has 2 types, one is equipped with single ladder and the other has double ladders on both sides. The biggest lifting height is 30 meters, the lifting capacity ranges from 100kg to200kg.
Advantage:
Mobile Aluminum Lifts with high-strength aluminum alloy high-quality aluminum alloy, beautiful in appearance, small size, light weight, lifting balance, safe and reliable, no pollution and can operate from up to down, smooth lifting, Operate conveniently in narrow space, Work efficient and balance well.
They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters, exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses
|
Type |
Capacity(kg) |
Table size(mm) |
lifting height(mm) | Working height(mm) |
Weight(kg) |
| SJYL0.2-8 | 200 | 1470*800 | 8000 | 9850 | 500 |
| SJYL0.2-10 | 200 | 1470*800 | 10000 | 11500 | 520 |
| SJYL0.2-12 | 200 | 1470*800 | 12000 | 13500 | 530 |
| SJYL0.2-14 | 200 | 1470*800 | 14000 | 15500 | 550 |
| SJYL0.2-16 | 200 | 1470*800 | 16000 | 17500 | 570 |

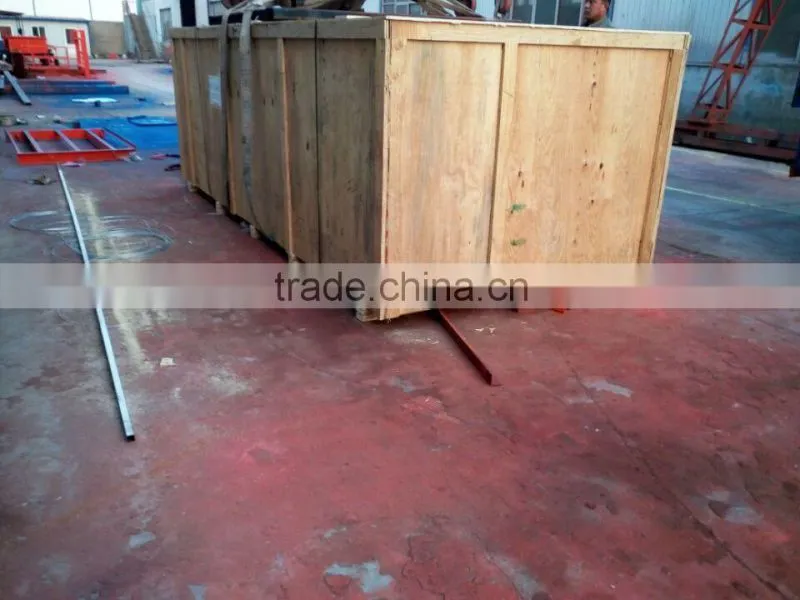

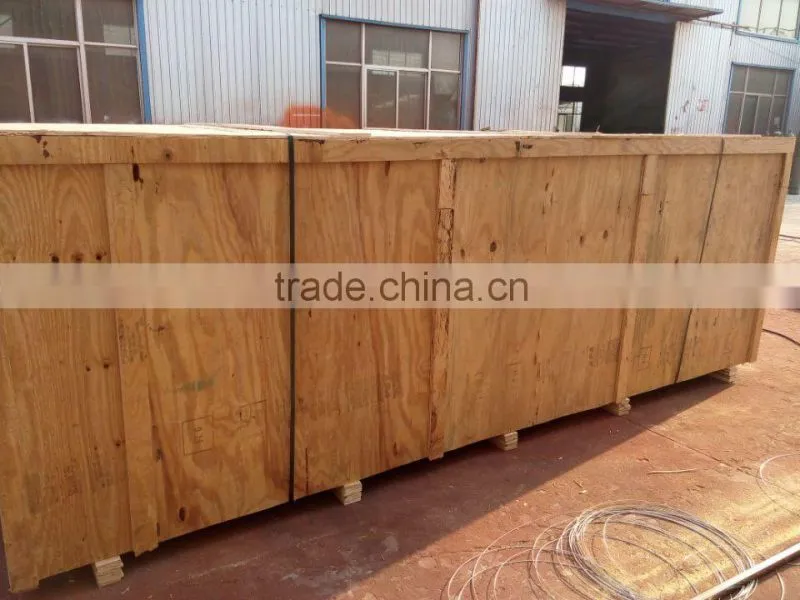

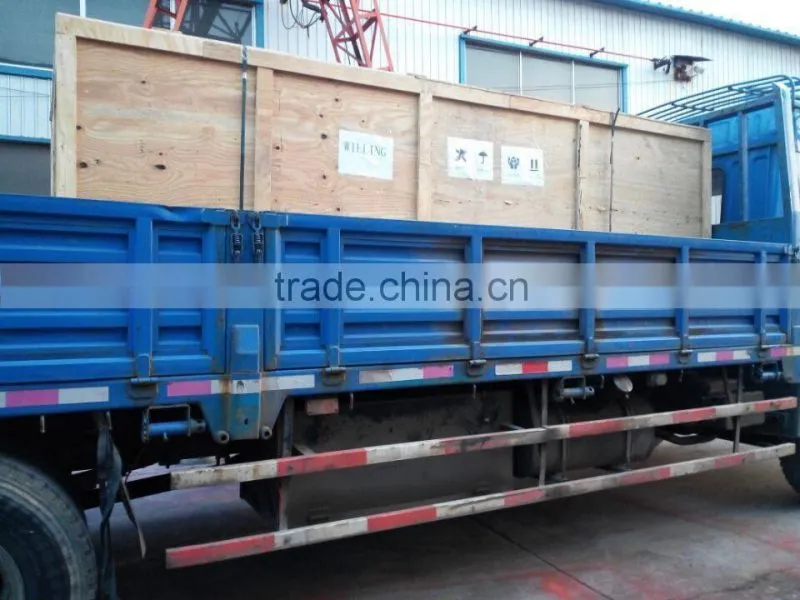

Pack using wood case
