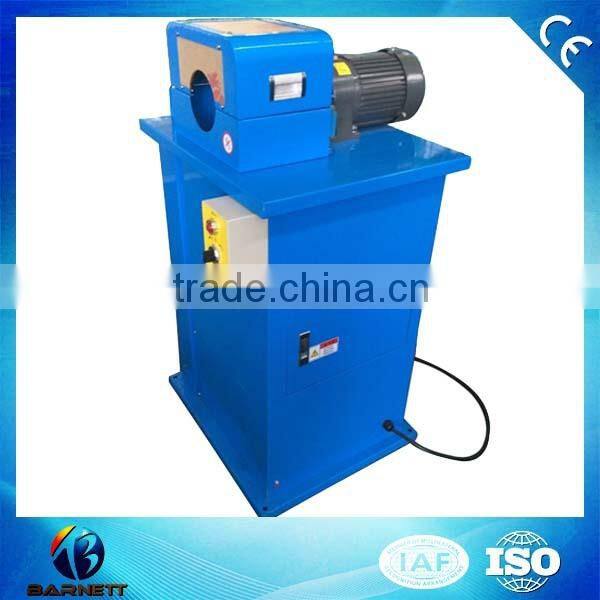

BARNETT hose skiver up to 2" Skiver51
FAQ: skving hoses vs non-skive hose? Which is better? If we skive hose,We need to invest on skiving machine and we can use poor quality machined hose fittings crimp any brand hoses, am i right?
Answer 1: It depends on the manufacturer of the hose and coupling system. Crimping recomendations will always advise if you need to skive or not. Mixing and matching hose and fittings from differnt suppliers and then decidicing to skive or not is a sure fire way to head towards leaks or blow off. Stick with one brand of hose and fittings and follow their directions on crimping and skiving. Gates offer a full range of non skive hose and fittings on all braided and spiral hose up 2" (including 6 wire). If you have a brand that does require skiving then a skiving machine is safer and faster than knives.
Different hose manufacturers have different outside diameters on 2 wire hose for example. You can over crimp on some and under crimp on others if you use the same crimp specifications. And keep in mind all makes of collars are also different again in regards to wall thickness etc.
If you are going to use old hose ( and yes I have seen customers insisting on using an existing hose ) to fit a new fitting on or change to a different fitting you have to skive since the outside rubber gets hard and brittle and most of the time blows off or leaks after a while, and make the customer sign a waiver if he insists on this or send him away!
If you are however planning to make up large 400bar+ (5800psi+) hoses some fittings require an internal skive. This you can't do with a knife and you will need to invest in a skiving machine.
Answer 2:
Different hose manufacturers have different outside diameters on 2 wire hose for example. You can over crimp on some and under crimp on others if you use the same crimp specifications. And keep in mind all makes of collars are also different again in regards to wall thickness etc.
If you are going to use old hose ( and yes I have seen customers insisting on using an existing hose ) to fit a new fitting on or change to a different fitting you have to skive since the outside rubber gets hard and brittle and most of the time blows off or leaks after a while, and make the customer sign a waiver if he insists on this or send him away!
If you are however planning to make up large 400bar+ (5800psi+) hoses some fittings require an internal skive. This you can't do with a knife and you will need to invest in a skiving machine.
Hoping the above information can help you to choose or decide to buy the suitable hose skiving machine or not.
Technical Data of our hose skiver :
Crimp range |
1/8" ~2” 4SH |
Standard voltage & motor |
380V/0.75kw |
Max crimp (outside dia.) |
Φ80mm |
Speed |
284r/min |
Noice level |
60dB |
Weight |
60Kg |
Optional voltage&motor |
as customer’s requirement |
L*W*H |
580mm*570mm*1100mm |
Introduction of our Company:
Tianjin Barnett Trade Co. Ltd. Specialize in manufacturing Hydraulic hose crimping machine, hydraulic hose cutting machine, hose skiving machine,testing machine, cleaning machine, marking machine. We dealt with more than 200 trading Companies in China since 1986 years. We also supply hydraulic hose fittings, hose ferrules, customized hose crimping machine dies, hydraulic hose, teflon hose, o-ring, suction hose, air hose, pvc hose, etc.
All of our machine has 3 Years Warranty. If any quality problem. Money back guarantee.
If it is your first time to import, our agent can guide you easily.

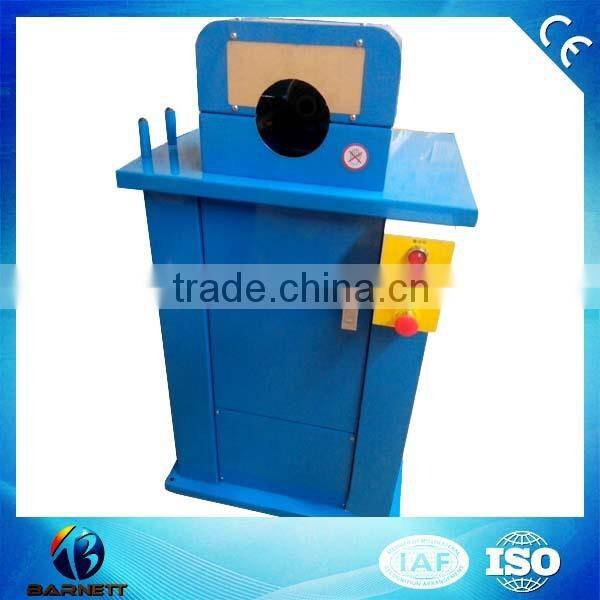

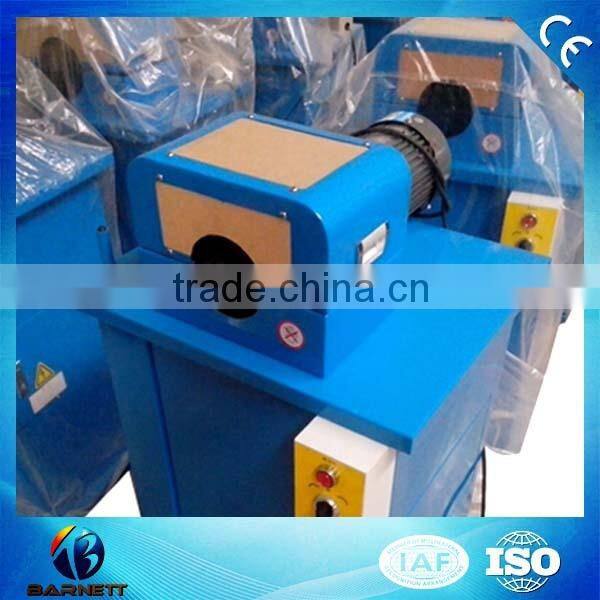

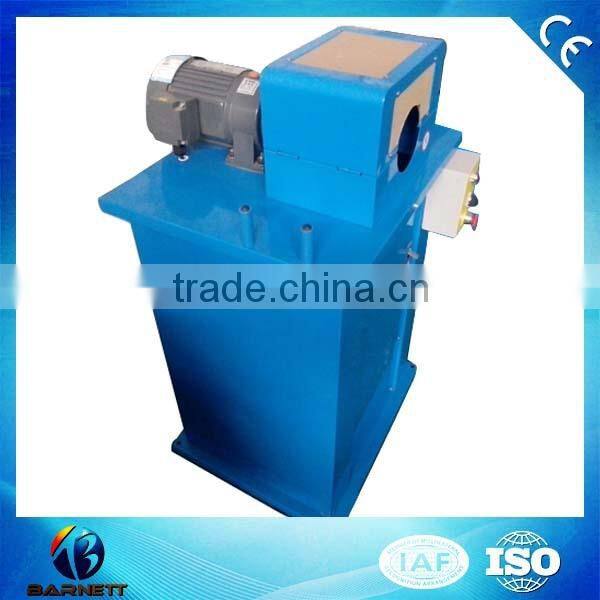

Details of our hose skiver :
hose skiver

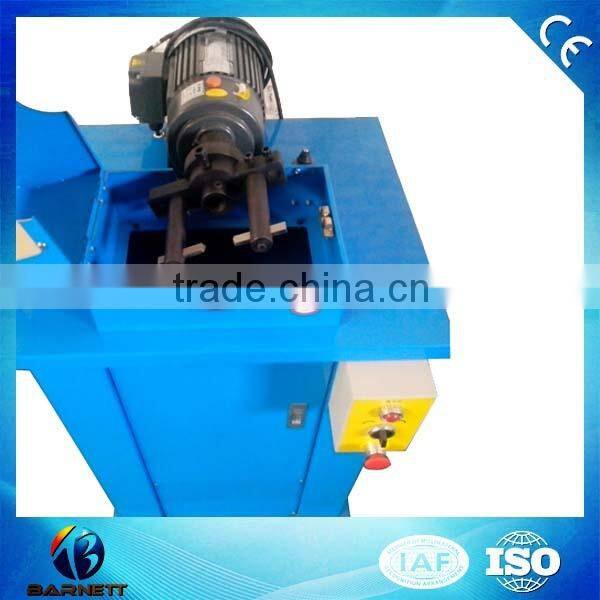

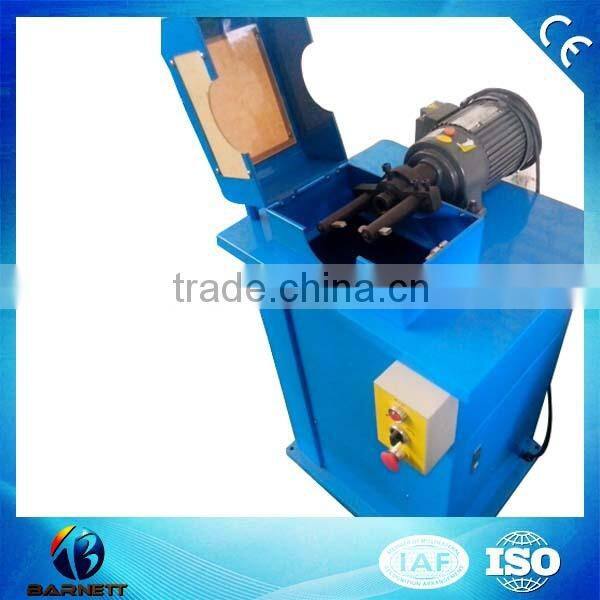

Power will be off, when the hose skiving machine is covered.
hose skiver

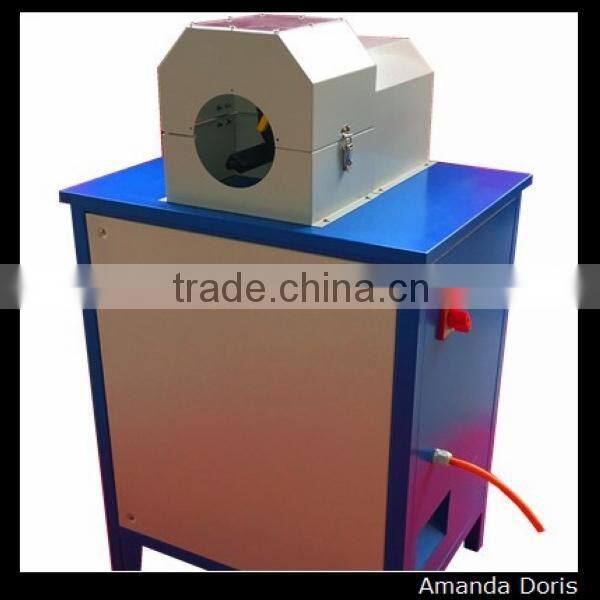

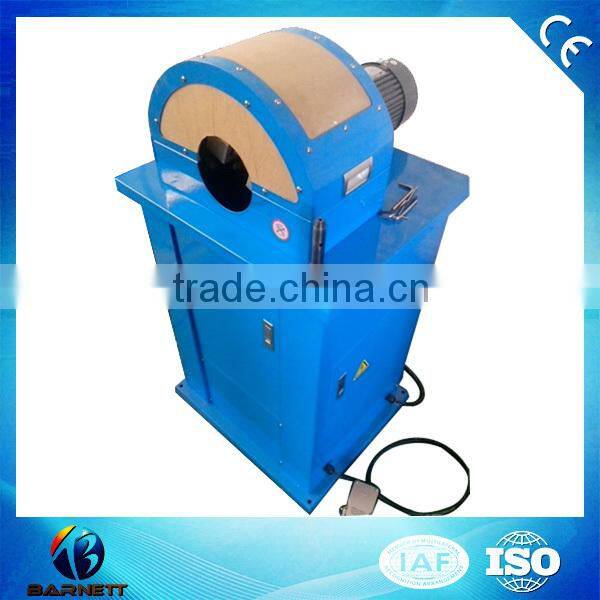

Other designs of our hydraulic hose skiving machine:
hose skiver
PTC FAIR OF OUR HYDRAULIC HOSE SKIVING AND CRIMPING MACHINE:
Contact us freely, If any demands.Eric Is always be here to provide you the timely and the best service.
