Atlas Copco Hammer

Atlas Copco Hammer thumbnail-1
Atlas Copco Hammer thumbnail-2
Atlas Copco Hammer thumbnail-3
Atlas Copco Hammer thumbnail-4
Atlas Copco Hammer thumbnail-5
Atlas Copco Hammer thumbnail-6
Atlas Copco Hammer photo-1
Atlas Copco Hammer photo-2
Atlas Copco Hammer photo-3
Atlas Copco Hammer photo-4
Atlas Copco Hammer photo-5
Atlas Copco Hammer photo-6
US$ 1,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JISAN
Model Number:
JSB seriew
Contact Supplier Request Quote Chat Now
Yantai Jisan Heavy Industry Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
yantai/ qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JISAN
Model Number JSB seriew



Product Description



JSB series  jack hammer atlas copco hammer are compatible with various brand of excavators include: DOOSAN,KOMATSU,CAT,SNAY ,HYUNDAI R ,BOBCAT,CAT PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL ,Liebherr,ZOOMLION,YUCHAI,LG etc.



We have side type breaker ,top type breaker and box(silent) type breaker for your choice.

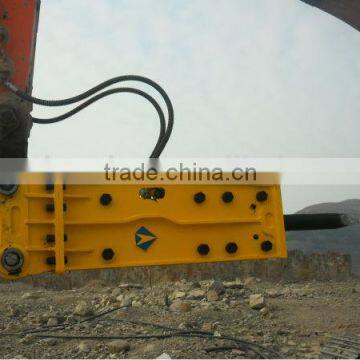

Fig 1  The side type of   excavator jack hammer Atlas copco hammer



Fig 2  The top type of  jack hammer Atlas copco hammer







Fig 3  The box type of  jack hammer Atlas copco hammer







The features of  jack hammer



-less noise



-well heat-treated tool



-piston features powerful impact force and longer stroke



-accumulator less stress to hydraulic components as absorbing pressure fluctuation



-main valve internal control valve system is more efficient by 10% to 15% than other breaker’s valve, stays cooler and makes the breaker quick and harder-hitting



-Cushion damper absorbs repercussion from hammering and increases carrier endurance







The parameters of   jack hammer

                       THE SPECIFICATIONS OF SIDE TYPE BREAKER

ItemModel

Unit

JSB100S

JSB200S

JSB400S

JSB400S

JSB600S

JSB800S

JSB900S

Suitable Excavator

ton

0.8-2.0

1.2-3.0

2.0-4.0

3.0-5.5

4.0-7.0

7.0-14.0

11.0-16.0

Chisel Diameter

mm

40

45

53

68/70

75

85

100

Total   Weight

kg

70

80

165

254

264

486

853

Overall Length

mm

920

1100

1190

1347

1528

1920

2260

Operating Pressure

kg/cm2

90-120

90-120

90-120

110-140

110-160

120-170

150-170

Required Oil Flow

L/min

15-25

15-25

25-50

25-45

30-45

45-85

80-120

Impact rate

bpm

800-1400

700-1200

600-1100

500-900

500-800

400-700

400-700

Hose Diameter

inch

1/2

1/2

1/2

1/2

1/2

3/4

3/4





                         THE SPECIFICATIONS OF SIDE TYPE BREAKER

ItemModel

Unit

JSB1200S

JSB1600S

JSB1900S

JSB2800S

JSB3500S

JSB4500S

JSB5000S

Suitable Excavator

ton

15-18

19-26

19-26

27-38

28-40

36-45

40-55

Chisel Diameter

mm

120

1350

140

150

155

165

175

Total   Weight

kg

1300

1679

1898

2455

2650

3753

3910

Overall Length

mm

2530

2695

2810

2895

3152

3310

3400

Operating Pressure

kg/cm2

150-170

160-180

160-180

160-180

160-180

160-180

160-180

Required Oil Flow

L/min

90-120

120-160

130-170

150-190

170-220

200-300

210-290

Impact rate

bpm

400-700

400-700

400-600

350-500

250-400

250-350

200-350

Hose Diameter

inch

1

1

1

1

1.25

1.25

1.25















Packaging & Shipping

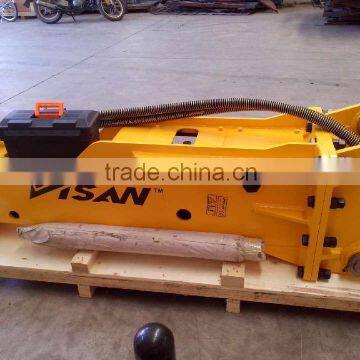

-JISAN BRAND jack hammer atlas copco hammer will be packaged with plywood pallet or case enclosed all hoses

-atlas copco hammer can be delivered within 5 working days after order





Our Services

- One year warranty for main machine of atlas copco hammer

-  One-stop service



The service of  jack hammer Atlas copco hammer









Company Information



Please visit our website: ()

JISAN HEAVY INDUSTARY

JISAN is modernized excavator attachment manufacturer. We are specialized in R&D, production and sale a wide range of excavator front-end attachments such as hydraulic grapple, hydraulic hammer,quick hitch, hydraulic grab bucket, hydraulic compactor, ripper,hydraulic breaker etc. As an original manufacturer, we are able to offer you an attractive price and high quality products.

Our products are widely used for earthmoving ,building demolition,mining,paving road,landscape planting,scrap,dispose waste,sub grade compaction etc.

JISAN HEAVY INDUSTARY is striding toward the world first-class enterprise. We are looking forward to establish closed business relation with you on the multiple benefits basic.









FAQ



Why us?

Attractive price

Professional sale force

Superior quality

Prompt delivery

Intelligence technical team

Atlas copco hammer
