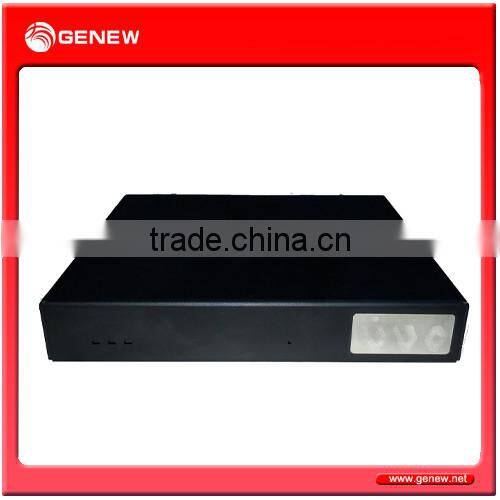

NC5200IP is an all-in-one box solution designed especially for small and medium size enterprises to meet their increasingly diverse demands of communication service. Integrated with various kinds of advanced TDM, VoIP and mobile technologies in communication field, and relying on the existing enterprise intranet, NC5200IP provides an integrative multi-service communication platform to help enterprises to save IT management cost, establish better corporate image and improve work efficiency. At the same time, NC5200IP provides a perfect solution for enterprise-oriented operators.
Using advanced software & hardware technology and carrier-class design, NC5200IP performs with high reliability. The system which uses high-performance CPU and DSP, embedded real-time operating system and efficient algorithm, processes outstanding properties. With multiple plug-in modules, NC5200IP can support many kinds of interface board, provide different services according to different needs, and expand capacity easily.
NC5200I support carrier-class redundant borad and redundant network, any nods in case of disaster or damage, the system standby switchover in time to ensure the normal operation of the system.
System design
- Soho level IP PBX designed for small single office, to connect branch offices to headquaters or as a gateway with special funtions, as SCADA, IoT,..
- Easy to install and to manage by its web interface.
- It manages ISDN, trunk and analog line by internal module or 3G-4G connection by esternal module
Models |
5p |
5i |
Materials: |
Steel |
Steel |
Dimensions (LxPxH) mm : |
165x165x40 |
165x155x30 |
Frontal Panel |
1 Power-ON, 1 Reset, signalling led |
1 Power-ON, 1 Reset, signalling led |
Cooling: |
Fanless |
Fanless |
LAN: |
10/100 Mbps |
10/100 Mbps |
CPU |
500 MHz AMD Geode LX800 |
500 MHz AMD Geode LX800 |
RAM |
256MB |
256MB |
CF/ changeble |
1GB |
1GB |
ALIM |
12V, external AC power adaptor |
12V, external AC power adaptor |
Rear connectors |
2 xUSB 2.0, 2 x LAN, 1 serial port |
2 xUSB 2.0, 2 x LAN, 1 serial port |
Extensions |
2 xISDN-BRI, 2 x Analog (FXs-Fxo) |
Not available |
MAIN SPECIFICATIONS AND ADVANTAGES:
- No limits for licences and numbers of terminals connectable to the PBX;No licences are required to install terminals;
- Every Sip standard device can be set up to the IP PBX;
-
The System is able to manage IP internal phones and it interacts with traditional phone by:
1 Analogue Ports;
2 Digital Ports (BRI and PRI);
3 High performances mobile extensions;
4 Unified messaging gateway to third parts chat line. - The System interacts with IP terminals such as IP Door phones, conference call systems, audio pagers, video survey, etc;
- It is able to interact with building automation system (door opening, lighting control, thermo plant management,
- power consumption management, alarm, events, etc.);
- It allows to customize services by the NFC technology;
- Several software modules equipped;
-
On-Line manuals based on WiKi technology.
Genew Technologies Co., Ltd. designs, manufactures and sells telecommunications infrastructure, handsets and customer premise equipment and provide services associated with their installation, operation, and maintenance. Our portfolio also includes OEM/ODM services with world-class telecommunication partners such as Huawei, ZTE, Datang Mobile, UTStarcom, Nokia-Siemens Networks and Fiberhome.
While historically the vast majority of our sales have been to industrial clients involved in Mining, National Grid and Military in China, we have expanded our focus to build a global presence and currently sell our products in several other established and emerging growth markets, which include Japan, India, Latin America, EMEA and Asia.
Genew Technologies Co., Ltd.
Address: F3, Dazu Creative Building C, NO.9018,Beihuan Ave., Nanshan District, Shenzhen, China
Fax: +86-755-26619963
Attn: Sam zhou
