Y5-48-6.3C Boiler centrifugal induced draft fan model/air blower fan
Model Y5-48 boiler centrifugal draft fan is designed as a part of industrial boiler (1-20tons/hr) burning various coals and equipped with smoke prevention and dust control devices. It can be used for boilers of similar inlet condition and proper performances, but the temperature shall not exceed 250C, the medium of fan is flue gas. For Y5-48 No.4C-6.3C.The gas temperature is up to 200°C, and the density is 0.74 kg/m³.
For No.8C-12.5C, the gas temperature is up to 140°C, and the density is 0.85kg/m³. A dust-removed device is required in front of the draft fan to ensure the flue gas entering the fan has a dust content, less than 400mg/m³.
Parameters of Y5--48 Boiler centrifugal fan:
Model(No.) |
Power (kw) |
Rotation Speed (r/min) |
Volume Flow (m3/h) |
Total Pressure (Pa) |
4C |
5.5 |
3550 |
2932-5564 |
2221-1501 |
4 |
3150 |
2602-4937 |
1746-1180 |
|
3 |
2800 |
2313-4388 |
1377-932 |
|
2.2 |
2500 |
2065-3918 |
1097-742 |
|
5C |
11 |
3150 |
5304-9851 |
2819-1913 |
7.5 |
2800 |
4715-8757 |
2223-1509 |
|
5.5 |
2500 |
4210-7818 |
1769-1202 |
|
4 |
2240 |
3772-7005 |
1419-964 |
|
6.3C |
22 |
2800 |
9432-17516 |
3545-2403 |
15 |
2500 |
8421-15639 |
2819-1913 |
|
11 |
2240 |
7546-14013 |
2259-1533 |
|
7.5 |
2000 |
6739-12511 |
1798-1221 |
|
8C |
30 |
2000 |
13794-25619 |
3323-2253 |
22 |
1800 |
12415-23057 |
2686-1823 |
|
15 |
1600 |
11035-20495 |
2118-1438 |
|
11 |
1400 |
9656-17933 |
1619-1100 |
|
10C |
75 |
1800 |
22250-44634 |
4483-2958 |
55 |
1600 |
19778-39674 |
3531-2332 |
|
37 |
1400 |
17305-34715 |
2696-1782 |
|
22 |
1250 |
15451-30995 |
2145-1419 |
|
12.5C |
110 |
1400 |
33800-67803 |
4234-2794 |
75 |
1250 |
30179-60538 |
3365-2223 |
|
55 |
1120 |
27040-54242 |
2696-1782 |
|
37 |
1000 |
24143-48431 |
2145-1419 |

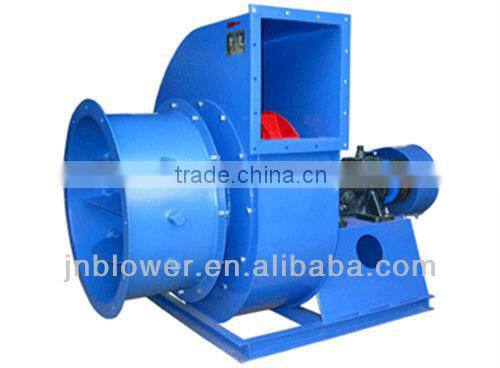

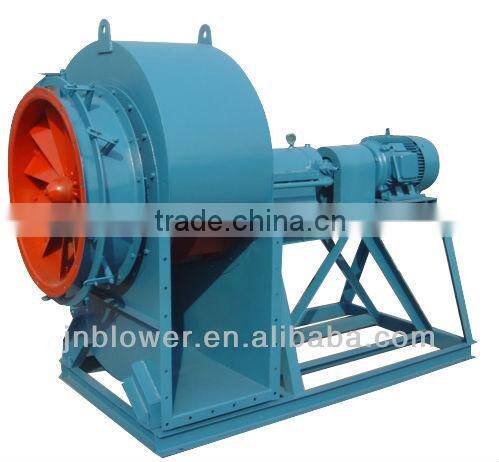

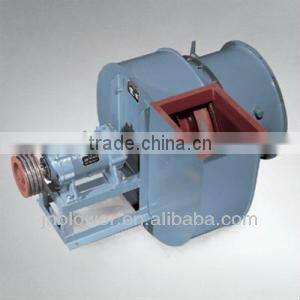

Pictures of Y5-48 boiler centrifugal fan:
Certificate:ISO9001:2008:CE
Company information:
Wuxi luoshe Jiangnan Fan Factory was established in 1997,located in Wuxi City,Jiangsu Province,China,is a ventilation equipment as the center, Research and development,production,sales and service as and integrated enterprise.
After more than 10 years development,at present in the factory with CNC plasma,sheet metal,metal stamping,shear,maohan and dynamic balance,general and numerical control equipment and precise measuring and test equipment. The company has professional technology r&d team,using computer aided design,can provide clients with various ventilation requirements.In line with the principle of quality first,we run our products through a series of rigorous tests,and passed the ISO9001:2008,CE international quality system authentication.Since the establishment of the company,products are widely recognized by the market,win a good reputation.We have received "Jiangsu Province quality products","Jiangsu Famous enterprise","contract trustworthiness enterprise","Jiangsu quality service prestige AAA advanced units", the many honors.
The Jiangsu Fan as always adhering to the "quality first,the customer is supreme,the good faith is gold,service by enterprise core idea,keep pace with the Times,strengthen the brand construction consciousness,positive market with synchronous,keep out newer and better products,together with our customers and create great achievements!
Our factory and outgoing pictures:
1.Price Term:FOB,CFR,CIF.
2.Port of Loading:Shanghai.
3.Payment Term:30% T/T in advance,70% balance against B/L copy.
4.Delivery Time:15-25 days after receiving your deposit.
Welcome to inquiry,we will provide you best service!
