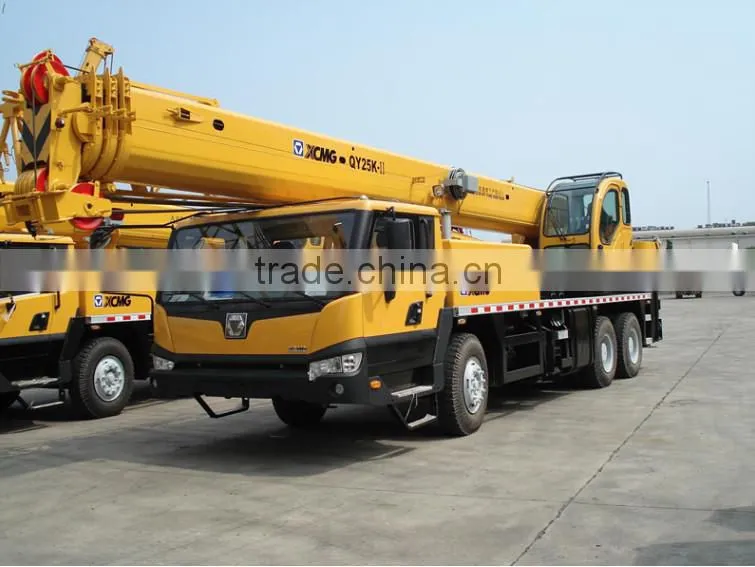

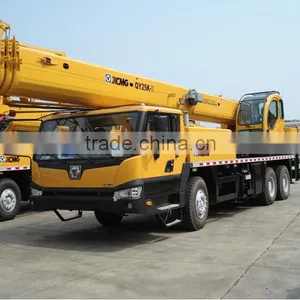

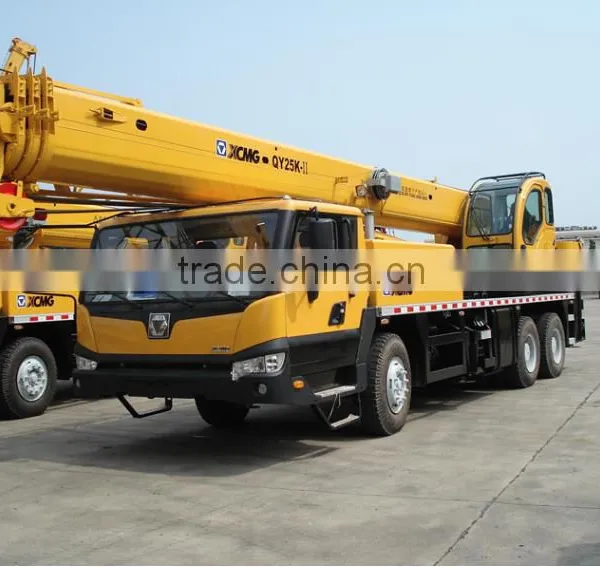

XCMG Qy25k-II Truck Crane, Hydraulic Cranes, Hydraulic Truck Cranes

Name: XCMG Qy25k-II Truck Crane, Hydraulic Cranes, Hydraulic Truck Cranes
Brand: xcmg
SKU: 102659433

US$ 90,000 - 105,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

construction usage

Rated Loading Capacity:

25TON

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction usage

Rated Loading Capacity 25TON

Rated Lifting Moment 1010kN.m

Max. Lifting Load 25TON

Place of Origin Jiangsu, China

Brand Name xcmg

Model Number Qy25k-II

Certification ISO9001

Warranty 6 month

After-sales Service Provided Overseas service center available

XCMG Qy25k-II Truck Crane, Hydraulic Cranes, Hydraulic Truck Cranes

Dimension	Unit	QY25K-II
Overall length	mm	12650
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200 213/2200
Engine rated torque	N.m/(r/min)	1112/1400 1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	21.5
Min. ground clearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1010
Base boom	m	10.7
Fully extended boom	m	34.19
Fully extended boom+jib	m	42.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	≥2.5
Max. speed of main winch (single rope)	m/min	≥120
Max. speed of aux. winch (single rope)	m/min	≥120
