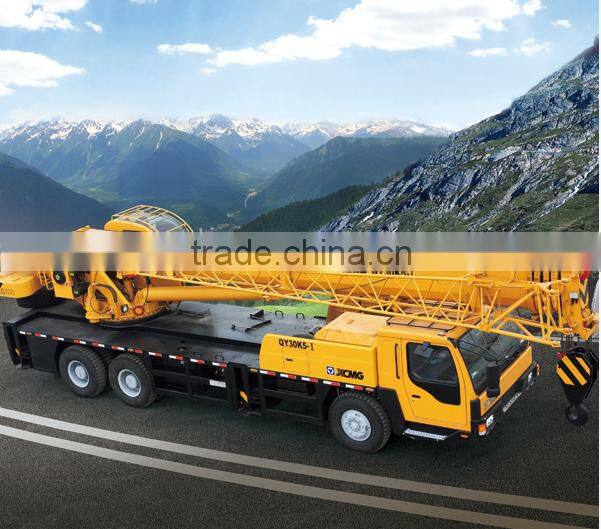

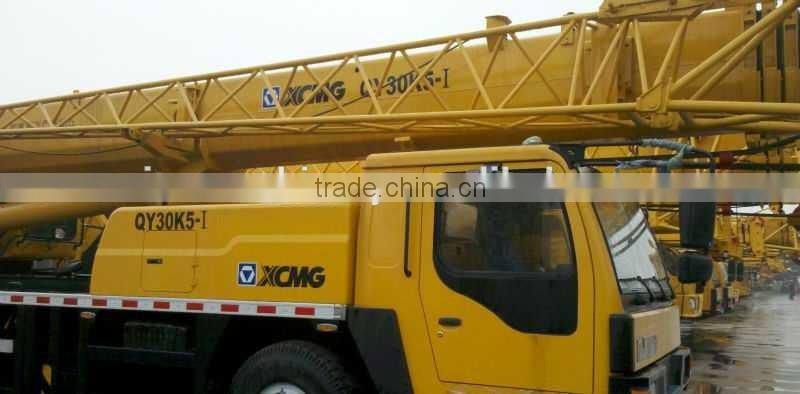

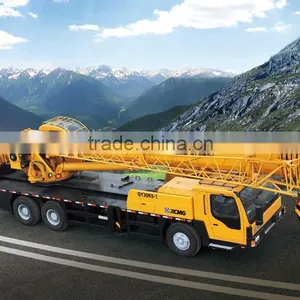

XCMG QY30K5-I TRUCK CRANE

Name: XCMG QY30K5-I TRUCK CRANE
Brand: XCMG
SKU: 102659271
Availability: InStock

US$ 100,000 - 130,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

Construction

Rated Loading Capacity:

30TONS

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Construction

Rated Loading Capacity 30TONS

Rated Lifting Moment 1025kN.M

Max. Lifting Load 30TONS

Max. Lifting Height 40.8M

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY30K5-I

Certification ISO9001:2008

Warranty 6 Months

After-sales Service Provided Overseas service center available

XCMG QY30K5-I TRUCK CRANE

Main Information

Max.lifting capacity:25t,

Max.lifting height:5-section boom--40.4m,

full-extend boom+ 1 jib--48.7m

Parameter:

Dimension	Unit	QY30K5-I
Overall length	mm	12570
Overall width	mm	2500
Overall height	mm	3390
Weight
Total weight in travel	kg	32400
Front axle load	kg	7000
Rear axle load	kg	25400
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	291
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	40
Main performance
Max. rated total lifting capacity	t	30
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1025
Base boom	m	10.6
Fully extended boom	m	40.4
Fully extended boom+ jib	m	48.7
Longitudinal outrigger span	m	5.85
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	120
Max. speed of aux. winch (single rope) (no load)	m/min	120
