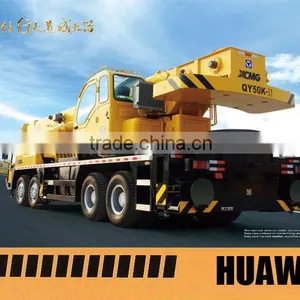

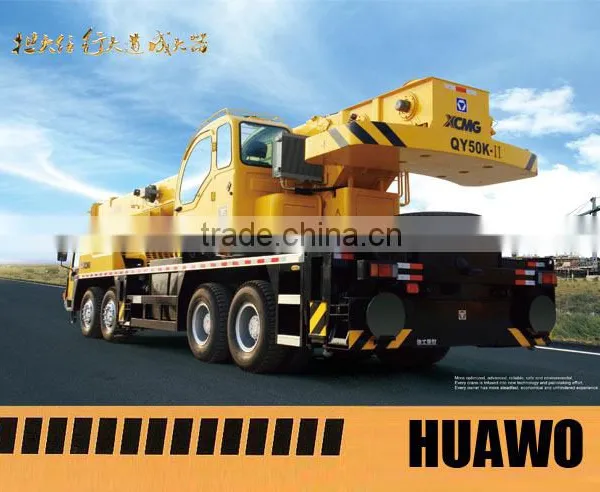

Construction machinery XCMG 50 ton crane truck
50 ton crane truck
TECH PARAMETERS
Model |
QY50B.5 |
Dimensions(mm) |
13270*2750*3300 |
Weight
dead weight in travel state |
39870kg |
Front/axle load |
19395/25935kg |
Power
Engine model |
WD615.334(EURO III) |
Engine rated output |
247/2200 |
Engine rated torque |
1350/1400 |
Travel
Max travel speed |
78km/h |
Min.turning diameter |
24m |
Min. Ground clearance |
291mm |
Approach/departure angle(°) |
16/10 |
Max.gradeability |
40% |
Fuel consumption of per 100km |
about 48L |
Lifting performance
Max. Total rated lifting load |
50T |
Max.load moment |
1509KN.m |
Min.rated working radius |
3000mm |
Turning radius at swing table tail |
3.8m |
Base boom |
11.27m |
Fully-extended boom |
40.31m |
Full-extended boom+Jib |
55.8m |
Outrigger longtudinal distance span |
5.45m |
Outrigger lateral distance span |
6.6m |
Working speed
Boom elevating time |
120s |
Boom full extending time |
184s |
Max.slewing speed |
>=2.0r/min |
Main winch max.speed(single line) |
>=118m/min |
Auxiliary winch max.speed(single line) |
>=118m/min |
50 ton crane truck PARTS SUPPLY
1 Five tracking services are made within guarantee period.
2 Drivers can be trained free of charge according to needs.
3 Excellent part supply system ensures usual operation of machine within and outside guarantee period.
We are the No. one authorized company of China National Heavy Duty Truck Group Co., Ltd.It has an annual output of
180,000 vehicles and 200,000 engines capacity.
The main products include wheel loaders,excavators,bulldozers,road rollers,tower crane, 50 ton crane truck,diesel generators,50 ton crane truck
lifting platform etc.We have excellent part supply system that ensures usual operation of machine within and outside
guarantee period.
Our company consists of Jinan Sinotruk International Imp & Exp Co.,Ltd and SINOTRUK VEHICLES(HONGKONG) CO.,LTD.Two overseas marketing companies.Our products have been exported to over 30 countries in
Asia, Africa, South America,Southeast Asia,The Middle East. The customers are from Nigeria,Zambia,Ghana,Angola,
Uganda,Tanzania,Algeria,Ethiopia,Djibouti,Qatar,Philippines,Sri Lanka,Peru,Bolivia,Chile,and other countries.
We will warmly welcome your arrival and serve you with our sincere hospitality!
1.WARRANTY
we have 6 months warranty for main parts,such as Engine,Gearbox,Chassis, Hydraulic Lifting
System.
2. Maintenance
it is one year or 60000 km whichever comes first.
3.How about your product quality?
The products have passed the ISO,CCC,SGS and SUNCAP CNCA qualification certification,the
quality is 100% guaranteed.
4. How about your company's service, especially after-sale service?
Our promise “Customer first,Quality first and Credit first”
We has been in this field for nearly 20 years and has strong production and distribution capability,
we can satisfy your demand within 7 days.We always do our best to solve all the problems
and put our customer's interests in the first place.
Impression: 50 ton crane truck OEM parts/Good quality/competitive price/Excellent part supply system/
Professional team
We are sure your any inquiry or requirement will get prompt attention.
Kind regards
SINOTRUK VEHICLES (HONGKONG) CO.,LIMITED
Contact person:Ada
Phone number:0086-15063398573
Tel:0086-531-81266628
Whats App& Viber :008615063398573
Wechat: ivy827238120
Skype:Ada_8521
Email: ada(at)
Website:
