Specifications
yarn winder machine1. 1.5-2.2kw main motor
2. double-sided 5-layer rewinding

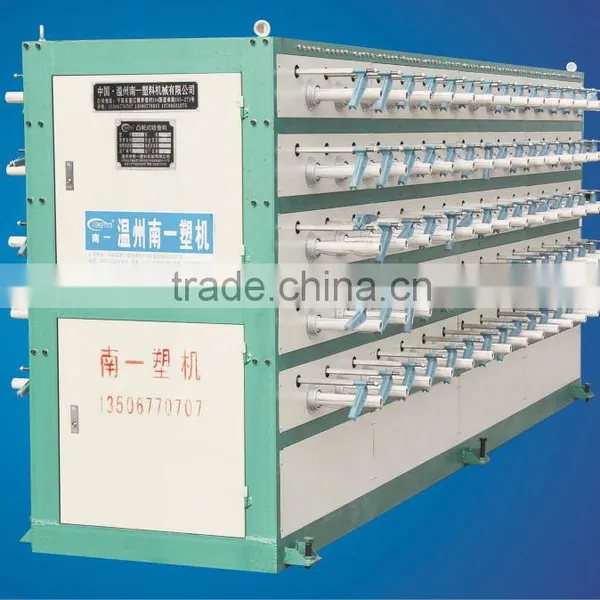

yarn winder machine
Description of plastc drawing machine
1. This machine is our newly developed energy-efficient winding machine with 1.5-2.2kw main motor only
2.It adopts cardioid cam to replace the former reciprocation shaft mechanism of combination winding machine. In this way, the machine can achieve stable movement and flat winding spindle.
3. Its overall length is greatly shortened by adopting 5 winding layers on both sides, which is good for matching with Plastic Tape Drawing Machine.
Main technical parameters
| Type | Layer number of spindle | Number of spindle | Dimension of Bobbin(D*L)(mm) | Linear speed of tape winding(m/min) | Power of main motor(kw) | Power of winding motor(kw) | Weight(kg) |
| S-STL-11/190 | 5 | 190 | 38*230 | 50-160 | 1.5 | 9 | 2800 |
| S-STL-11/240 | 5 | 240 | 38*230 | 50-160 | 1.5 | 11 | 3600 |
| S-STL-11/290 | 5 | 290 | 38*230 | 50-160 | 1.5 | 14 | 4300 |
| S-STL-11/390 | 5 | 390 | 38*230 | 50-160 | 1.5 | 17 | 5800 |
| S-STL-11/430 | 5 | 430 | 38*230 | 50-160 | 2.2 | 19 | 6500 |
| S-STL-11/480 | 5 | 480 | 38*230 | 50-160 | 2.2 | 22 | 7200 |
| S-STL-11/520 | 5 | 520 | 38*230 | 50-160 | 2.2 | 24 | 7800 |
| S-STL-11/600/11 | 5 | 600 | 38*230 | 50-160 | 1.5*2 | 27 | 9000 |
| S-STL-11/720/11 | 5 | 720 | 38*230 | 50-160 | 1.5*2 | 32 | 10800 |
| S-STL-11/760/11 | 5 | 760 | 38*230 | 50-160 | 2.2*2 | 33 | 11300 |
| S-STL-11/800/11 | 5 | 800 | 38*230 | 50-160 | 2.2*2 | 35 | 12500 |
Product Show
Workshop
Contact us
Wenzhou NanYi Plastic Machinery Co.,Ltd
ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China
Website: http://www.nanyijixie.com or
http:// zjnymachine.en.china.cn
Tel: +86-577-63696280 Fax:+86-577-63690818
Mob:+86-13867739043
Skype: lissy.xie
