Specifications
Circular Loom knitting1.small cam type circular loom
2.Smooth weaving flatness

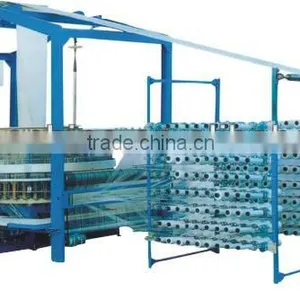

Energy-saving small cam circular loom knitting
The machine is suitable for flat yarn of polypropylene (PP), high density polyethylene (HDPE) as raw materials which produce high efficiency cloth of woven bag.The machine performance is based on research and development of universal small cam circular loom structure, is instead of currently universal small cam circular loom.Its characteristic is using the most advanced small cam,low noise, weaving speed,high efficiency and energy saving.Which can save 10 thousand degrees electricity compared with the original machine whose power is 4kw.
Main Technical parameters:
| Type | Number of shuttle | Lay-flat width (mm) | Max.warp (pcs) | Rotational speed of main motor(r/min) | Capacity(m/min) (40wefts/100mm) | Total power of motor(kw) | Installing dimensions(L*W*H)mm | Weight(kg) |
| NY-XT-850/6S | 6 | 300-850 | 720 | 120-160 | 1.8-2.4 | 2.2 | 8500*2300*2730 | 2100 |
Workshop:
APPLICATION:
Used for FIBC,Tarpaulin,pp woven bag, rice bag, flour bag,Jumbo bag etc
