Watertight Rubber Driverway Expansion Joint in Pavement

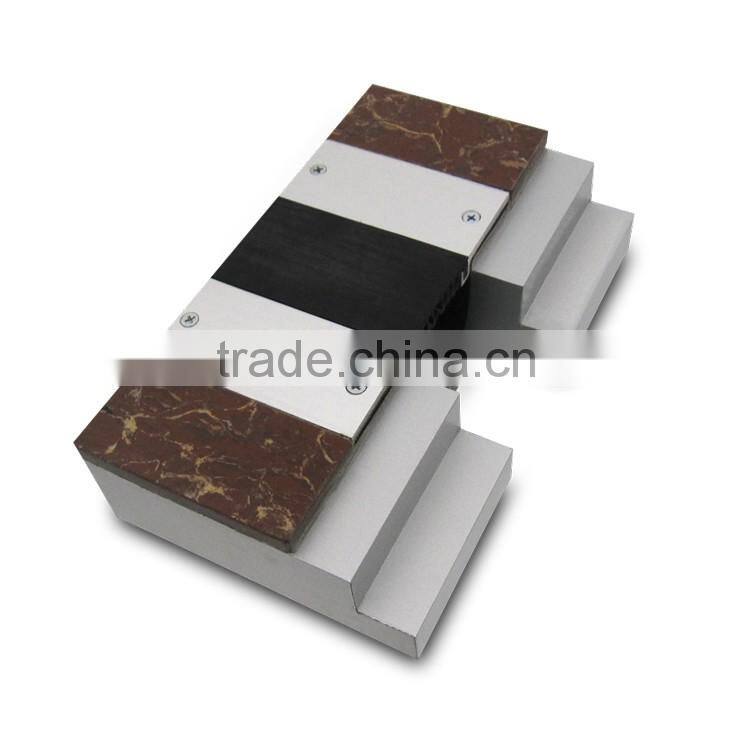

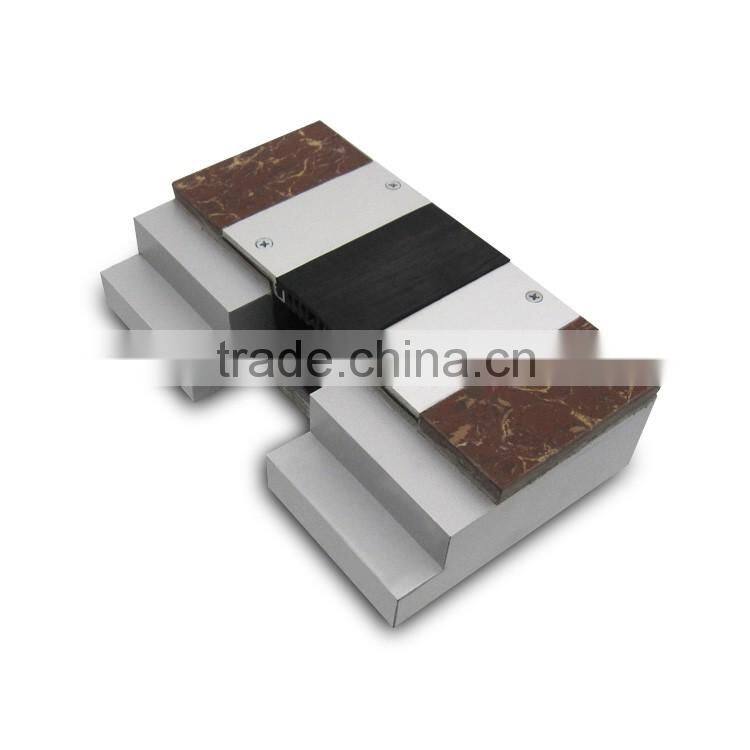

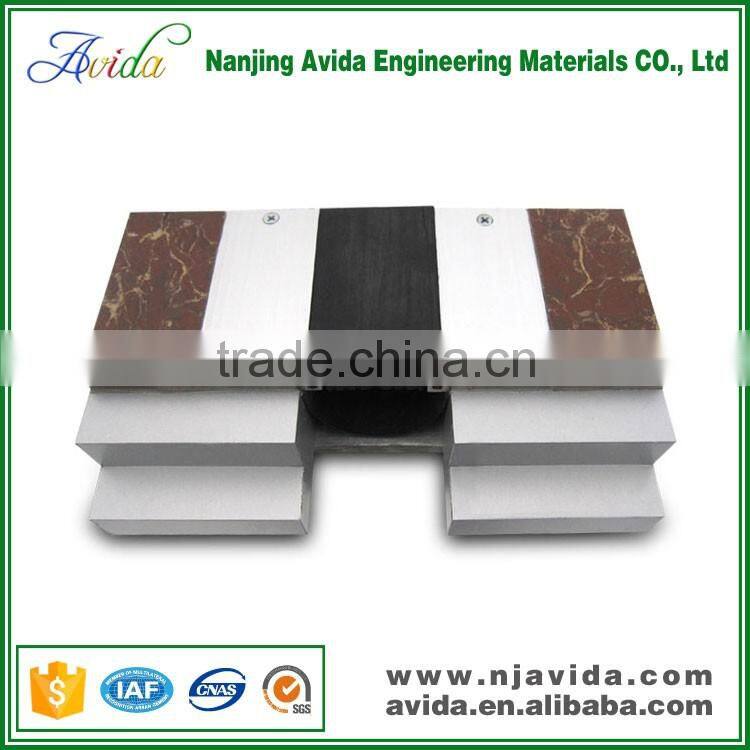

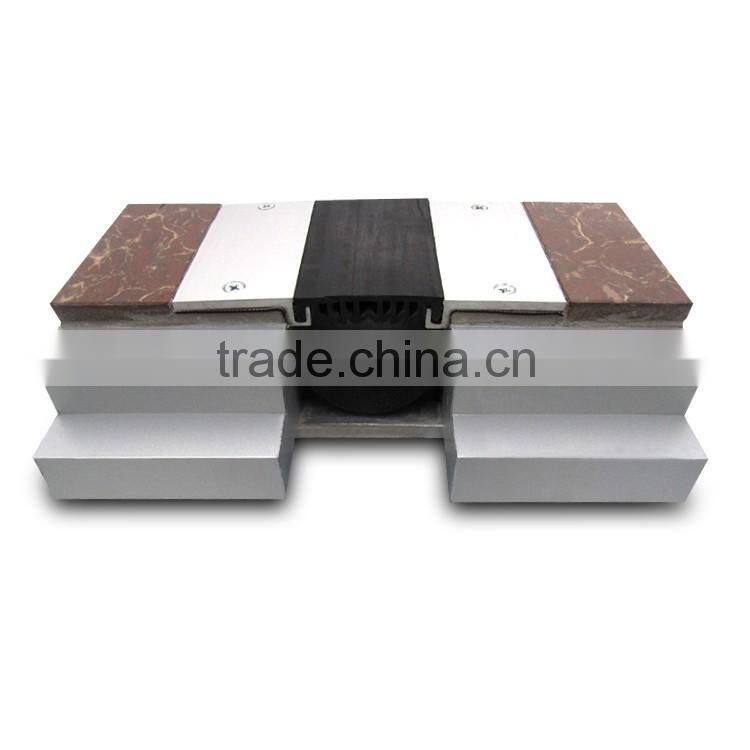

ADDJ-2 is a Watertight Rubber Driverway Expansion Joint in Pavement, consisting of one flush rubbery strip and extruded aluminum plates. Avida floor expansion joint system series are simply designed and accommodate modern architectural amenity. Avida floor expansion joint covers provide solutions not only for construction movement but also for all construction problems being triggered, and reduce lots of floor maintenance work brought by construction cracks, crack leakage, and other latent risks of construction physical expansion or compression.

Its middle rubbery strip adopts elastic neoprene to accommodate construction expansion or compression. This model suits for 25-75mm floor expansion joint width. Its flush surface design is for easy maintenance.

Its side aluminum profile is made of 6063-T5 aluminum alloy. Its design is near to AQTO-1, but instead of bevel side, it is recessed structure forming a whole flush surface. The aluminum is anodized for high corrosion resistance. A sliding groove on other side of bevel profile is for inserting rubbery cover.

Its installation is conducted on job site with screws securing. ADDJ-2 is embedded in floor surface. Securing holes on aluminum profile should be drilled prior to any installation work.

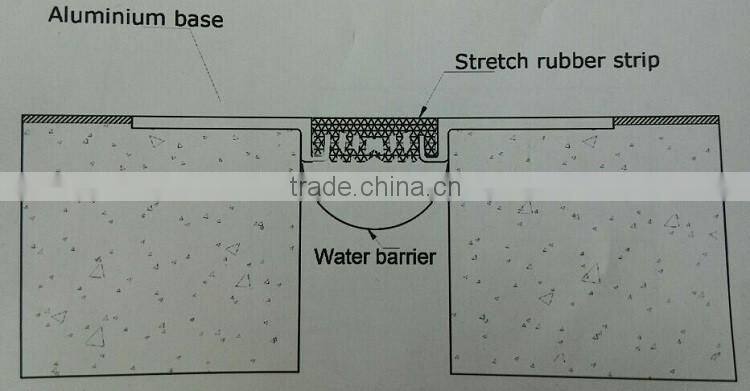

Product Drawing

Features

1.Movement is conducted by elastic neoprene strip.

2.Horizontal design.

3.Sliding groove for inserting rubber strip.

4.Easy to install and do maintenance.

5.Environmental friendly.

6.Elegant outlook.

7.Long-standing performance.

8.For small joint expansion.

Packing Details  : 1.pearl cotton as seperation 2.carton for inner package 3. plywood for outer package

Delivery Details : 1.Safety package, Three steps of packages,pearl cotton,carton and plywood for the transportation
