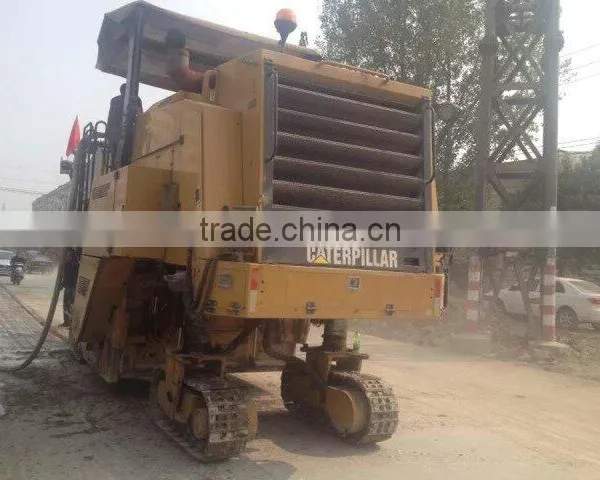

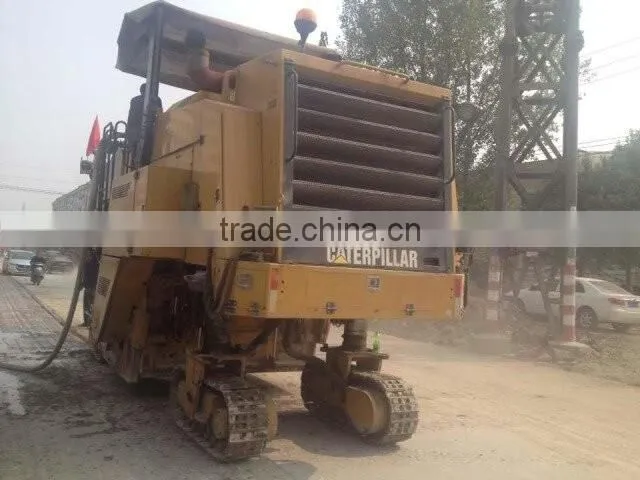

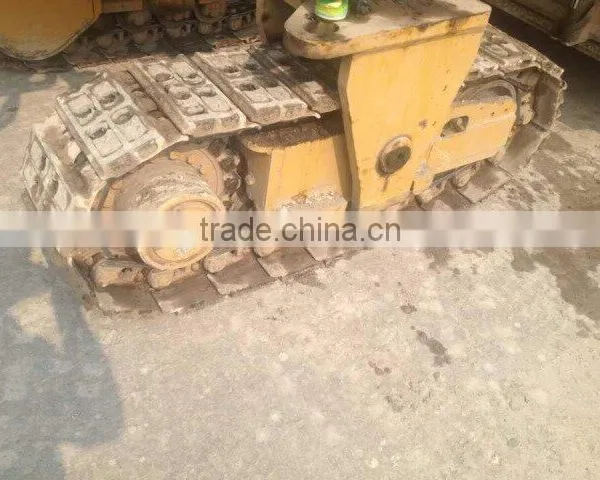

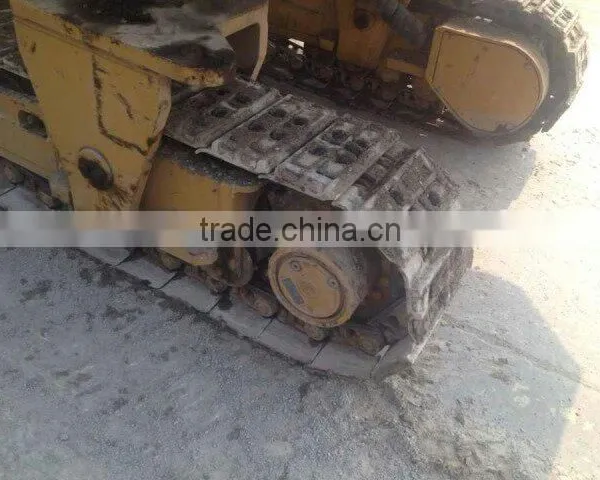

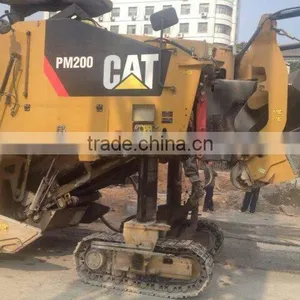

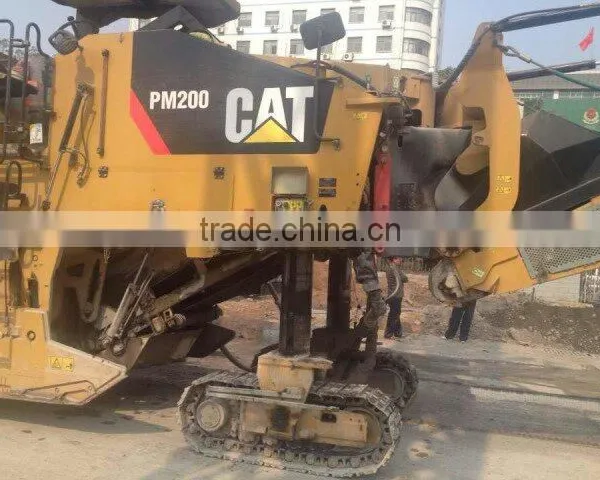

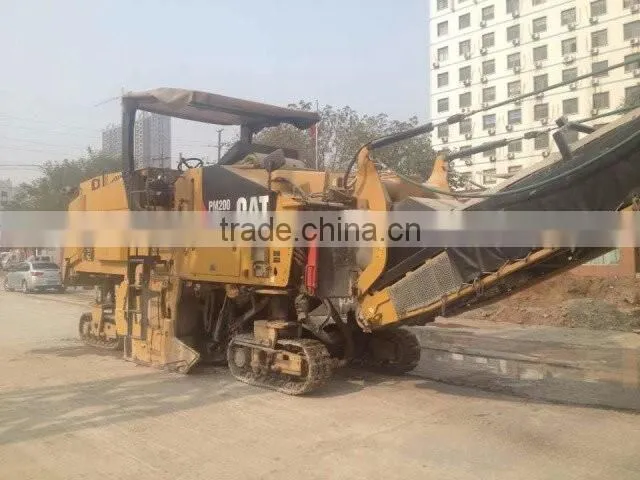

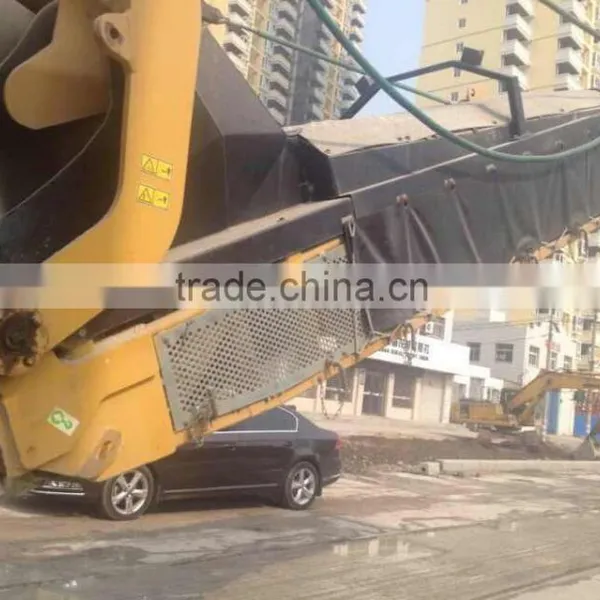

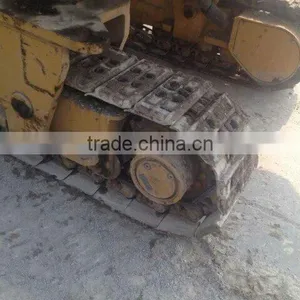

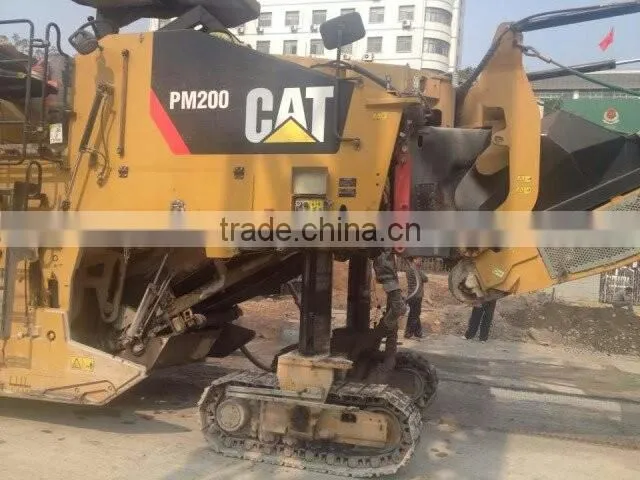

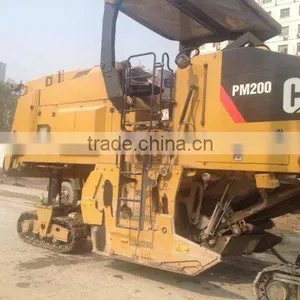

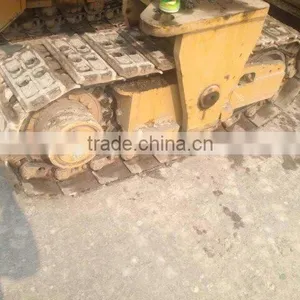

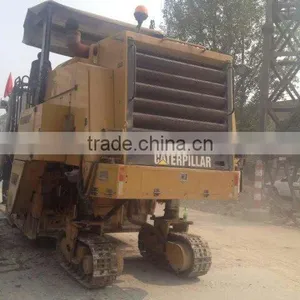

used asphalt equipment cold planers second hand CAT PM-200 (COLD PLANER)
A combination of innovations working at the point of combustion, ACERT? Technology optimizes engine performance while meeting U.S. EPA Tier 3 and European EU Stage IIIa emission regulations for off-road applications.
Operating Weight with full water tank 66359.0 lb
Operating Weight with full water tank on front tracks 34392.0 lb
Operating Weight with full water tank on rear tracks 31967.0 lb
Shipping Weight with empty water tank 61740.0 lb
Shipping Weight with empty water tank on front tracks 27895.0 lb
Shipping Weight with empty water tank on rear tracks 33845.0 lb
OPERATING SPECIFICATIONS
Inside Turning Radius 6.42 ft
Maximum Travel Speed 3.6 mph
Operating Speed 125.0 ft/min
ENGINE
Engine Model C18 with ACERT
Gross Power 575.0 hp
DIMENSIONS
Operating Length (conveyor up) 45.58 ft
Operating Width 9.0 ft
Maximum Operating Height 12.58 ft
Minimum Operating Height 10.5 ft
Maximum Truck Clearance 15.0 ft
Shipping Length - base machine 24.5 ft
Shipping Maximum Height 10.25 ft
Shipping Width 8.17 ft
Shipping Length - with conveyor folded 37.25 ft
ROTOR ASSEMBLY
Cutting Width 79.0 in
Maximum Cutting Depth 12.6 in
Number of Cutting Tools 178

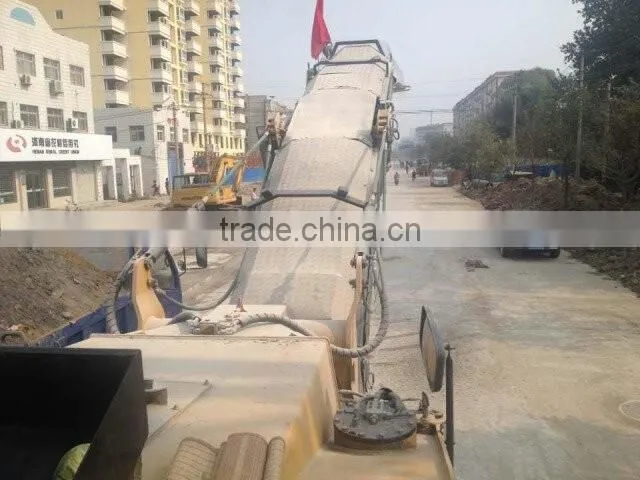

CONVEYOR SYSTEM
Collecting Conveyor Speed 985.0 ft/min
Collecting Conveyor Width 31.5 in
Discharge Conveyor Width 31.5 in
Discharge Conveyor Maximum Speed 985.0 ft/min
Discharge Conveyor Swing (from center) 48.0 Degrees
SERVICE REFILL CAPACITIES
Fuel Tank Capacity 290.0 gal
Water Spray System 925.0 ga
Name : Mark Lee
tell: +86 13917046424
Whatsapp:+86 18217056032
QQ:572988075
skype:tracy
Address: No.2588,Longwu Road,Xuhui District Shanghai China
Q:About the sample.
W:Usually, the sample is free.If the quantity of the sample is big, the sample has to be charged.The cost of the sample and the transportation is negotiable based on the details.
Q: What about the lead time?
A: It depends on the quantity you need.
Q: Do you have discount?
A: Different quantities will have different discount ranges.
Q: What about the payment terms?
A: We accept T/T, L/C.
