Wholesale China Washing Machine Motor Type

Wholesale China Washing Machine Motor Type thumbnail-1
Wholesale China Washing Machine Motor Type photo-1
US$ 3 - 13 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YCB
Model Number:
YYG-B
Contact Supplier Request Quote Chat Now
Zhejiang Yongchang Electric Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YCB
Model Number YYG-B

Specifications

Dryer
1,best quality with good price
2,strong abilty for supply
3.smooth running

wholesale China washing machine motor type

Product Description

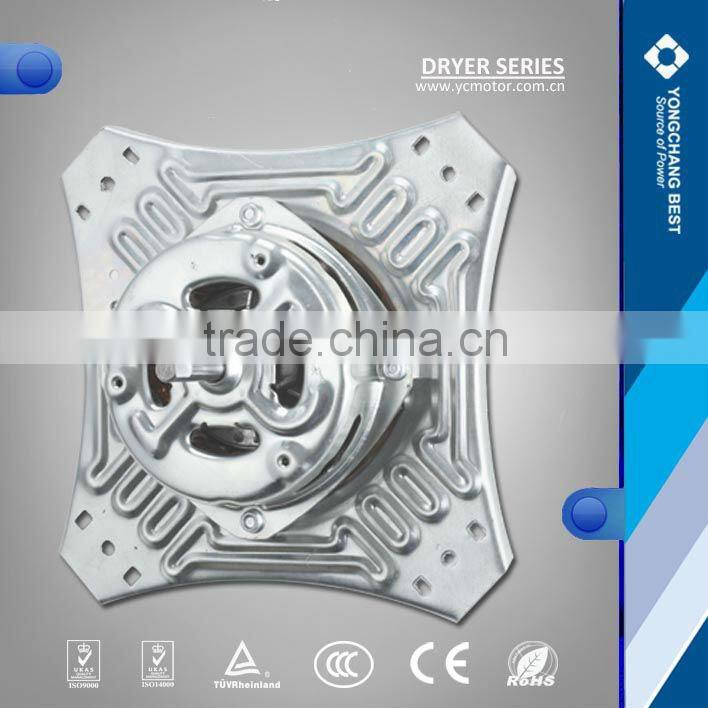

1.Product Pictures of  washing machine motor type



The motors can be customized according to the customers need with different Voltage,Frequency ,etc.

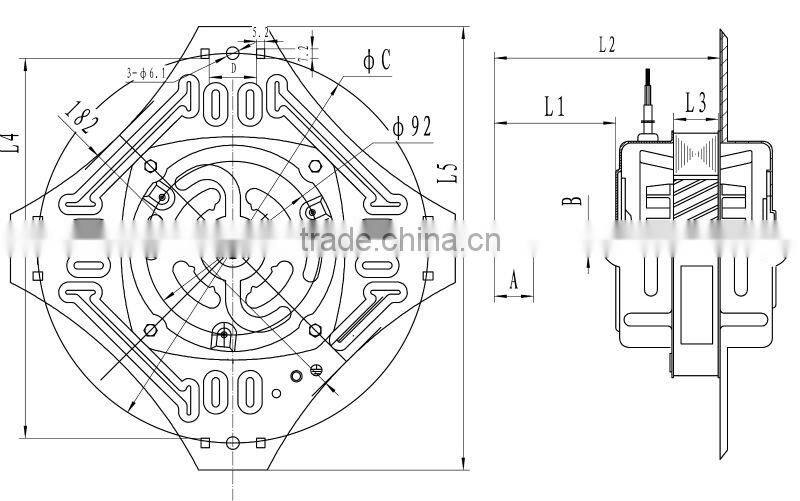

Shape and the size of installation:



wholesale China washing machine motor typewholesale China washing machine motor type







2.Product Description of  washing machine motor type

1.Specification

Code A B C D L1 L2 L3 L4 L5
Size 20 Φ 10 219.5 28 44 99 22 212.5 260
  22 Φ 10 219.5 28 44 101 24 212.5 260
  18 Φ 12 219.5 28 44 107 30 212.5 260

2.Performance parameters

The specification of our general products as below:



Model

Voltage

(V)

Frequency

(Hz)

capacitance

(uF)

Insulation

class

Rated

speed(r/min)

Output

power

(W)

efficiency

(%)

Starting

torque(N.m)

Greatest

torque(N.m)
YYG-90 220 50 8 E 1320 90 45 0.72 1
YYG-80 220 50 6 E 1320 80 43 0.62 0.9
YYG-70 220 50 5 E 1320 70 42 0.52 0.8
YYG-60 220 50 4 E 1320 60 40 0.45 0.7
YYG-45 220 50 4 E 1320 45 36 0.4 0.58

3.Raw Material

Silicon Steel for Rotor and Stator

Steel for Shaft

Iron or Aluminum Cover

Copper or Aluminum enameled wire

3.More Products

wholesale China washing machine motor type

Company Information

About us



1.Why Choose Us

1. Safe and reliable, low noise, good starting, long life, etc.

2. All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV

3. This motor can be designed and produced according to your request.

4. We will send you some samples for your further inspecting.

5. Factory direct ,quality guarantee and best price

2.Yongchang Best view and our team

wholesale China washing machine motor type

wholesale China washing machine motor type



wholesale China washing machine motor type

3.Main clients



wholesale China washing machine motor type

4.Production Process

  wholesale China washing machine motor type

5.Certifications

All our products passed the  CE/CCC/ROHS/SGS/ISO9001:

  wholesale China washing machine motor type

Packaging & Shipping
6.Packaging & Shipping

Packaging Details:

1.4 pcs one carton with foam

2.One container (20GP)containing 6000pcs

3.Can be customized according to customer's requirement packaging

Delivery Detail:15-20days

 wholesale China washing machine motor type

7.Our Markets

Main Markets:South America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe,Domestic Market

 wholesale China washing machine motor type
