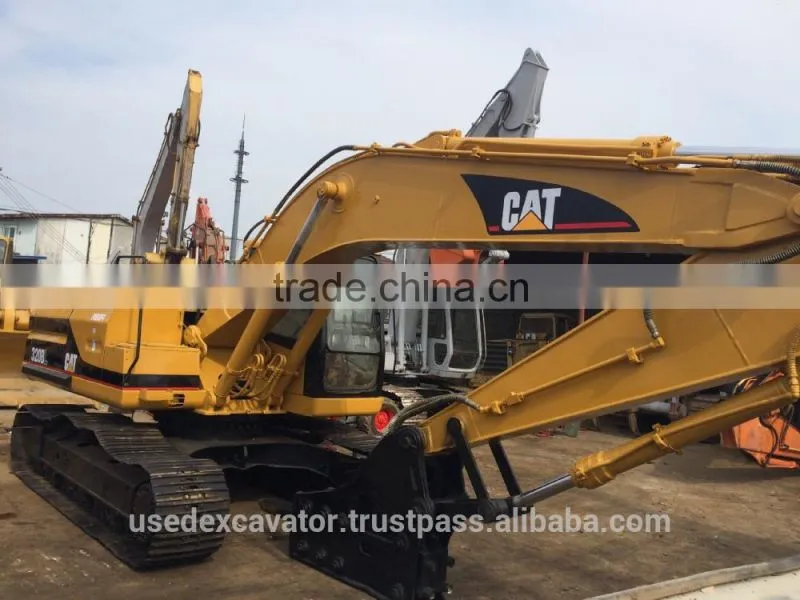

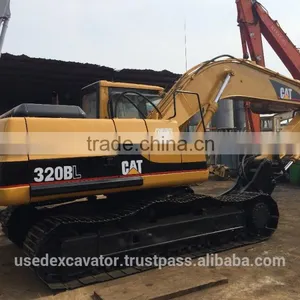

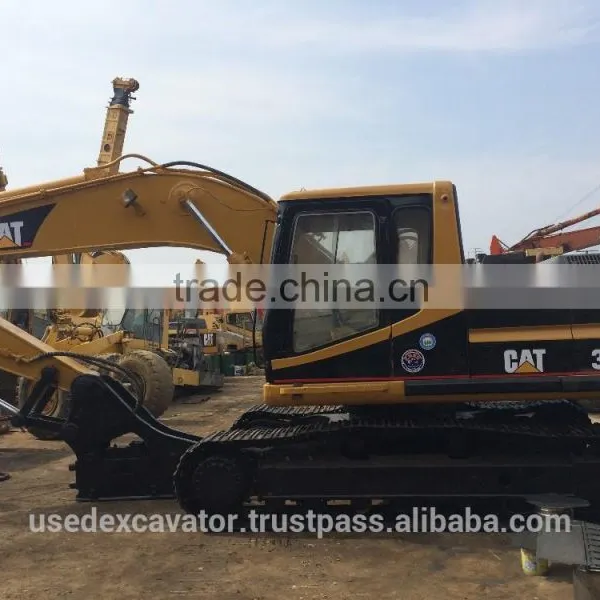

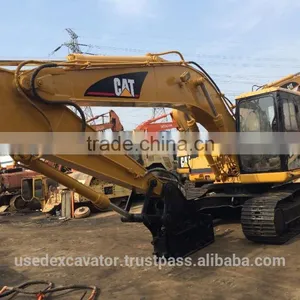

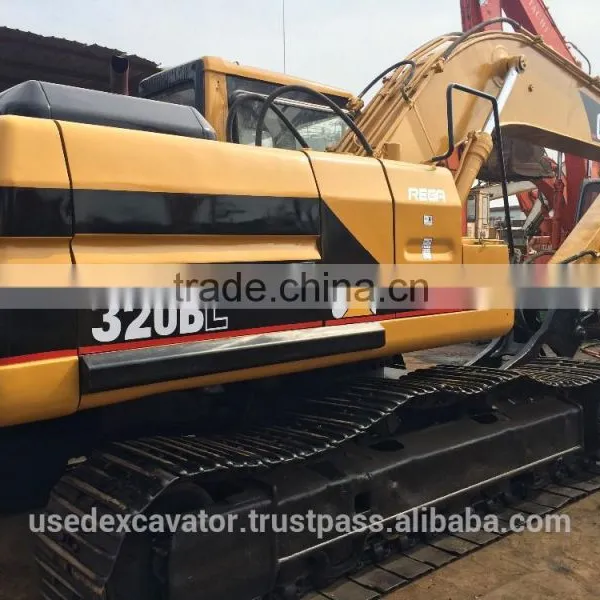

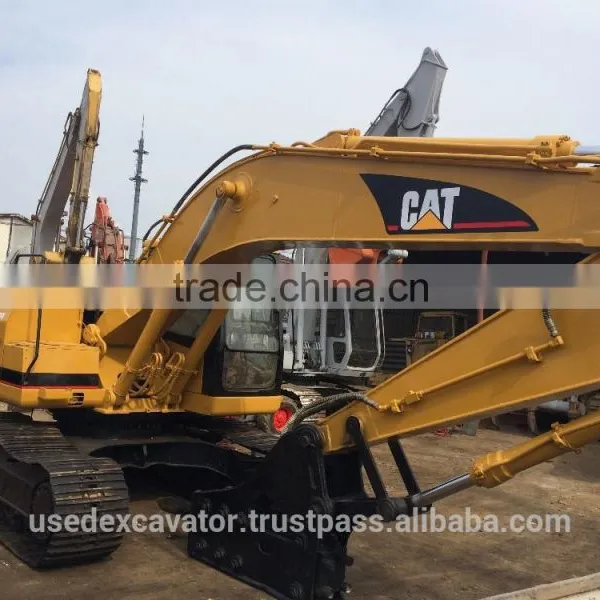

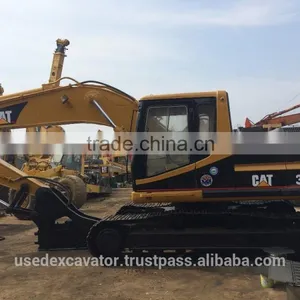

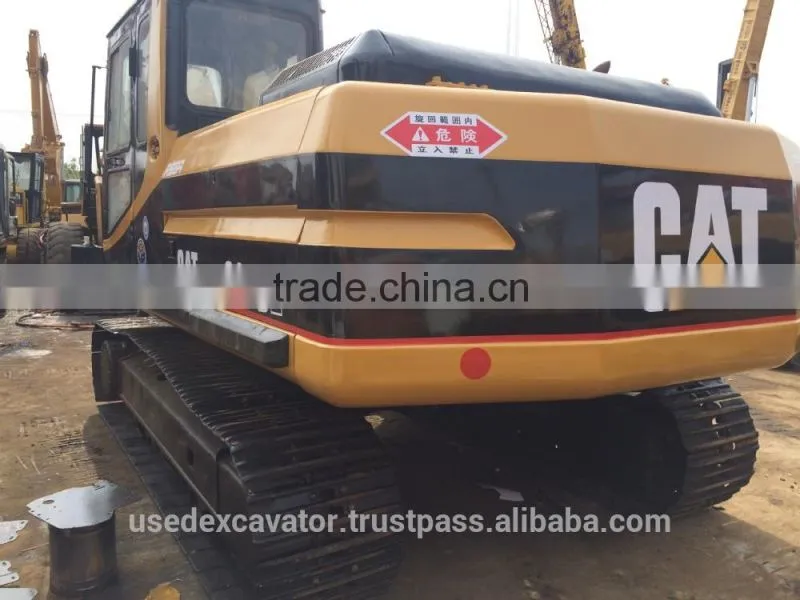

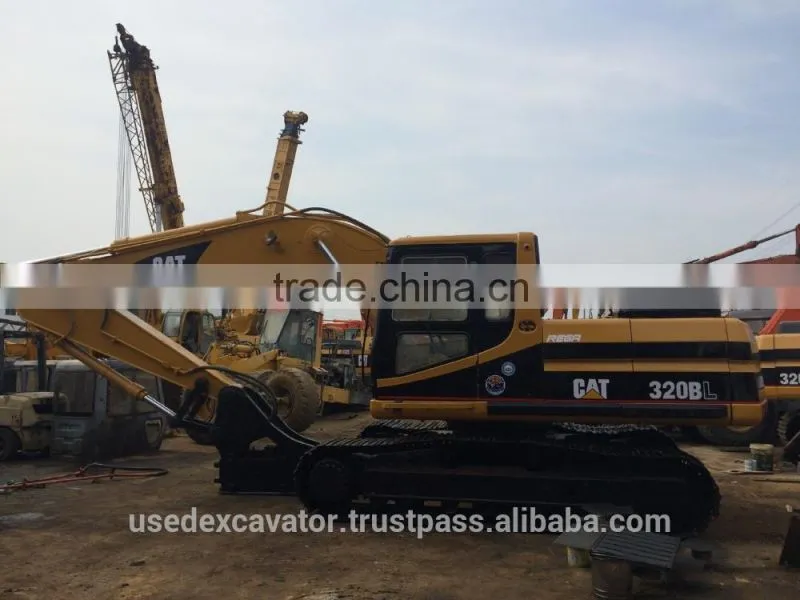

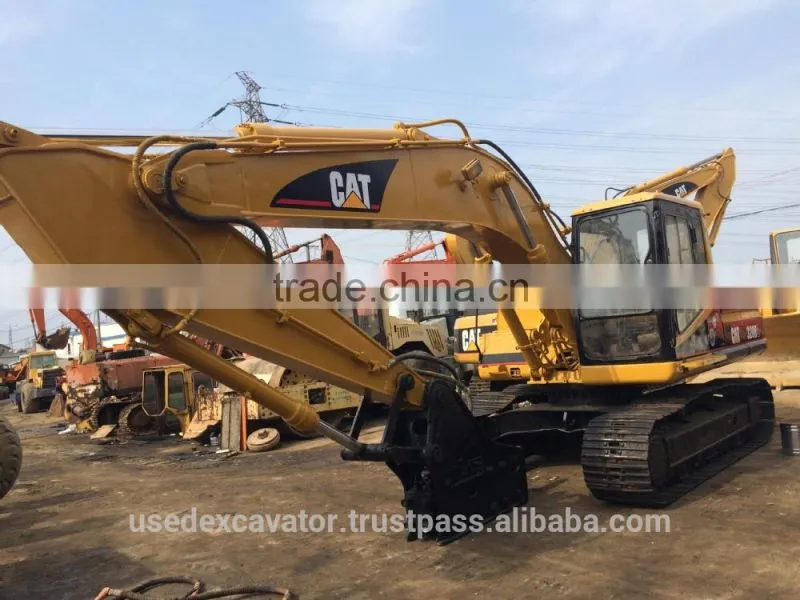

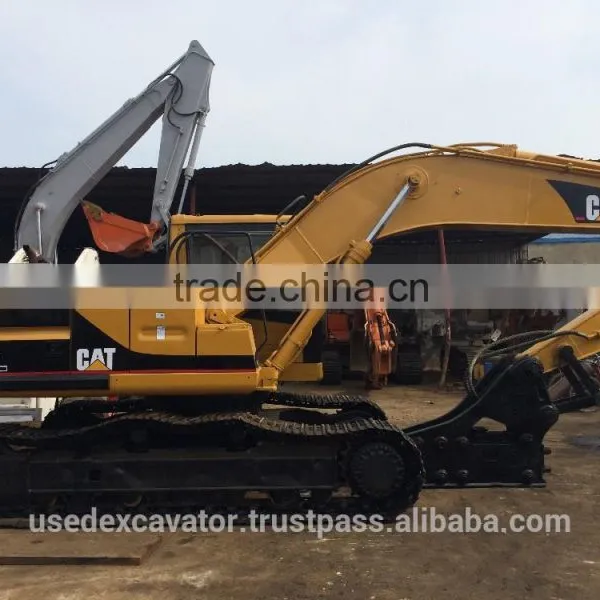

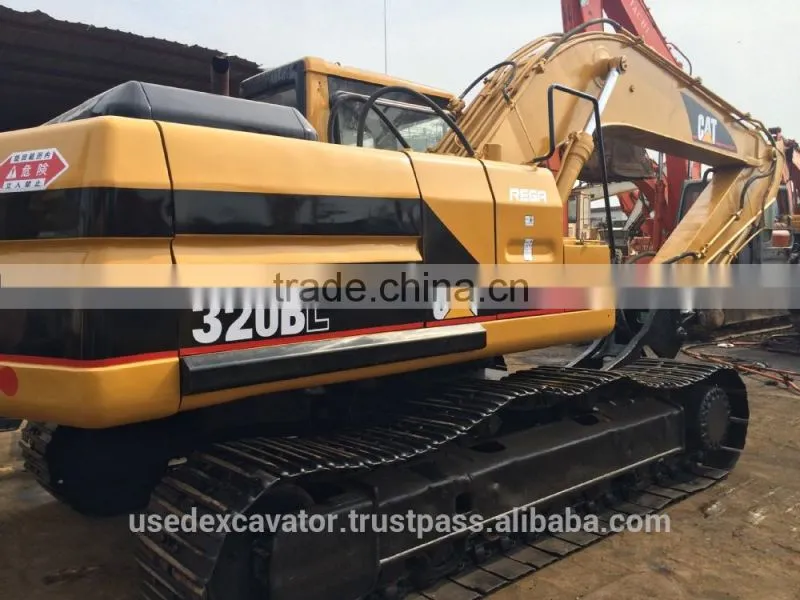

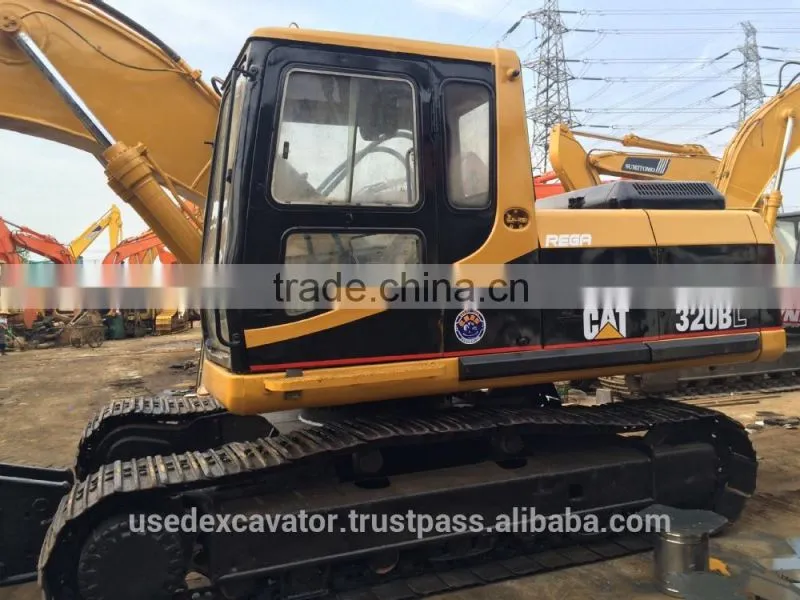

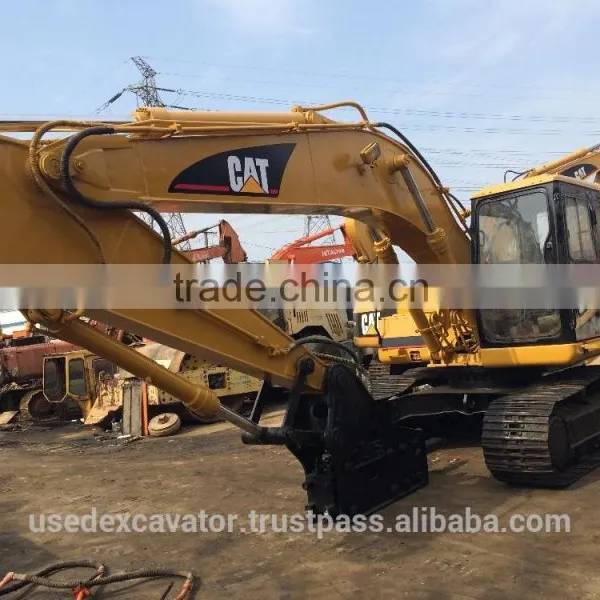

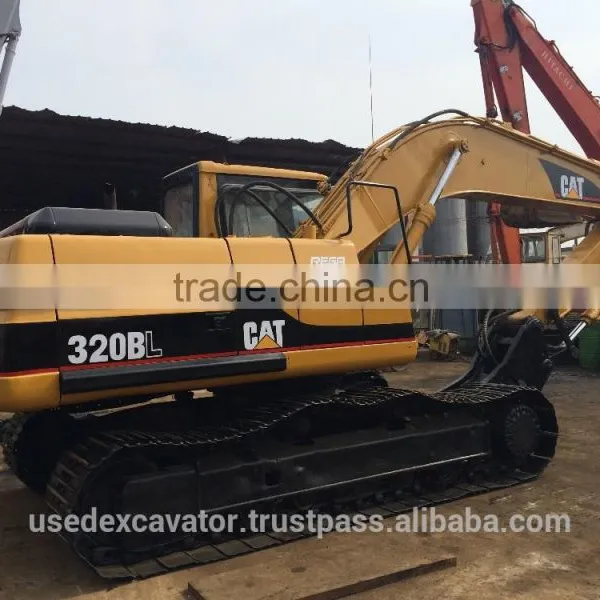

Used Caterpillar CAT 320BL excavator,second-hand hydraulic crawler excavator CAT 320BL
1.Good quality, better work performance and condition low work time.
2.Video available
3. Free new paint & clean
4.3 years warranty for engine and pump
5.Nice hammer and powerful engine
6.Whole machine check and maintainence
Selected Dimensions
| A. SHIPPING LENGTH OF UNIT | 30.9 ft in | 9420 mm |
| C. SHIPPING HEIGHT OF UNIT | 11.3 ft in | 3430 mm |
| I. MAX CUTTING HEIGHT | 32 ft in | 9750 mm |
| J. MAX LOADING HEIGHT | 22.7 ft in | 6930 mm |
| K. MAX REACH ALONG GROUND | 34.9 ft in | 10630 mm |
| L. MAX VERTICAL WALL DIGGING DEPTH | 22.3 ft in | 6810 mm |
| M. MAX DIGGING DEPTH | 24.9 ft in | 7580 mm |
| Dimensions | ||
| B. WIDTH TO OUTSIDE OF TRACKS | 9.2 ft in | 2800 mm |
| D. LENGTH OF TRACK ON GROUND | 10.7 ft in | 3265 mm |
| E. GROUND CLEARANCE | 1.6 ft in | 475 mm |
| G. HEIGHT TO TOP OF CAB | 9.6 ft in | 2940 mm |
| H. TAIL SWING RADIUS | 9 ft in | 2750 mm |
| O. COUNTERWEIGHT CLEARANCE | 3.4 ft in | 1045 mm |
| Undercarriage | ||
| F. TRACK GAUGE | 7.2 ft in | 2200 mm |
| N. SHOE SIZE | 23.6 in | 800 mm |
Specification |
||
| Engine | ||
| MAKE | Caterpillar | |
| MODEL | 3066T | |
| GROSS POWER | 134 hp | 99.9 kw |
| NET POWER | 128 hp | 95.4 kw |
| POWER MEASURED @ | 1800 rpm | |
| DISPLACEMENT | 389 cu in | 6.4 L |
| ASPIRATION | Turbocharged | |
| NUMBER OF CYLINDERS | 6 | |
| Operational | ||
| OPERATING WEIGHT | 42769.7 lb | 19400 kg |
| FUEL CAPACITY | 89.8 gal | 340 L |
| COOLING SYSTEM FLUID CAPACITY | 6.6 gal | 25 L |
| HYDRAUILC SYSTEM FLUID CAPACITY | 58.1 gal | 220 L |
| ENGINE OIL CAPACITY | 5.4 gal | 20.5 L |
| SWING DRIVE FLUID CAPACITY | 1.6 gal | 6 L |
| OPERATING VOLTAGE | 24 V | |
| ALTERNATOR SUPPLIED AMPERAGE | 50 amps | |
| HYDRAULIC SYSTEM RELIEF VALVE PRESSURE | 4980 psi | 34335.9 kPa |
| HYDRAULIC PUMP FLOW CAPACITY | 97.7 gal/min | 370 L/min |
| Swing Mechanism | ||
| SWING TORQUE | 42050 lb ft | 57012.1 Nm |
| Undercarriage | ||
| SHOE SIZE | 23.6 in | 600 mm |
| MAX TRAVEL SPEED | 3.4 mph | 5.5 km/h |
| DRAWBAR PULL | 39800 lb | 177 kN |
| TRACK GAUGE | 7.2 ft in | 2200 mm |
| Buckets | ||
| REFERENCE BUCKET CAPACITY | 1.2 yd3 | 0.92 m3 |
| MINIMUM BUCKET CAPACITY | 0.45 yd3 | 0.34 m3 |
| MAXIMUM BUCKET CAPACITY | 2 yd3 | 1.5 m3 |
| Boom/Stick Option (HEX) 1 | ||
| BOOM/STICK OPTION (HEX) 1 | Boom 18'7" (5680mm) / Stick 12'8" (3900mm) | |
| SHIPPING HEIGHT OF UNIT | 11.3 ft in | 3430 mm |
| SHIPPING LENGTH OF UNIT | 30.9 ft in | 9420 mm |
| MAX DIGGING DEPTH | 24.9 ft in | 7580 mm |
| MAX REACH ALONG GROUND | 34.9 ft in | 10630 mm |
| MAX CUTTING HEIGHT | 32 ft in | 9750 mm |
| MAX LOADING HEIGHT | 22.7 ft in | 6930 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 22.3 ft in | 6810 mm |
| Boom/Stick Option (HEX) 2 | ||
| BOOM/STICK OPTION (HEX) 2 | Boom 18'7" (5680mm) / Stick 9'7" (2900mm) | |
| SHIPPING HEIGHT OF UNIT | 9.6 ft in | 2930 mm |
| SHIPPING LENGTH OF UNIT | 31 ft in | 9440 mm |
| MAX DIGGING DEPTH | 21.8 ft in | 6640 mm |
| MAX REACH ALONG GROUND | 32.1 ft in | 9780 mm |
| MAX CUTTING HEIGHT | 31.1 ft in | 9470 mm |
| MAX LOADING HEIGHT | 21.6 ft in | 6570 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 19.8 ft in | 6040 mm |
| Boom/Stick Option (HEX) 3 | ||
| BOOM/STICK OPTION (HEX) 3 | Boom 18'7" (5680mm) / Stick 8'2" (2500mm) | |
| SHIPPING HEIGHT OF UNIT | 9.9 ft in | 3010 mm |
| SHIPPING LENGTH OF UNIT | 31 ft in | 9460 mm |
| MAX DIGGING DEPTH | 20.2 ft in | 6150 mm |
| MAX REACH ALONG GROUND | 30.5 ft in | 9310 mm |
| MAX CUTTING HEIGHT | 30.1 ft in | 9160 mm |
| MAX LOADING HEIGHT | 21.2 ft in | 6460 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 17.5 ft in | 5330 mm |
| Boom/Stick Option (HEX) 4 | ||
| BOOM/STICK OPTION (HEX) 4 | Boom 18'7" (5680mm) / Stick 6'3" (1900mm) | |
| SHIPPING HEIGHT OF UNIT | 10 ft in | 3050 mm |
| SHIPPING LENGTH OF UNIT | 31.1 ft in | 9490 mm |
| MAX DIGGING DEPTH | 18.5 ft in | 5630 mm |
| MAX REACH ALONG GROUND | 28.7 ft in | 8760 mm |
| MAX CUTTING HEIGHT | 28.8 ft in | 8780 mm |
| MAX LOADING HEIGHT | 19.6 ft in | 5960 mm |
| MAX VERTICAL WALL DIG DEPTH | 15.4 ft in | 4680 mm |
| Boom/Stick Option (HEX) 5 | ||
| BOOM/STICK OPTION (HEX) 5 | Mass Boom 17'1" (5200mm) / Stick 7'10" (2400mm) | |
| SHIPPING HEIGHT OF UNIT | 10 ft in | 3050 mm |
| SHIPPING LENGTH OF UNIT | 29.5 ft in | 9000 mm |
| MAX DIGGING DEPTH | 18.7 ft in | 5700 mm |
| MAX REACH ALONG GROUND | 28.7 ft in | 8760 mm |
| MAX CUTTING HEIGHT | 28.8 ft in | 8770 mm |
| MAX LOADING HEIGHT | 19.4 ft in | 5920 mm |
| MAX VERTICAL WALL DIG DEPTH | 16.1 ft in | 4910 mm |
| Dimensions | ||
| WIDTH TO OUTSIDE OF TRACKS | 9.2 ft in | 2800 mm |
| HEIGHT TO TOP OF CAB | 9.6 ft in | 2940 mm |
| GROUND CLEARANCE | 1.6 ft in | 475 mm |
| COUNTERWEIGHT CLEARANCE | 3.4 ft in | 1045 mm |
| TAIL SWING RADIUS | 9 ft in | 2750 mm |
| LENGTH OF TRACK ON GROUND | 10.7 ft in | 3265 mm |
WE ARE PROFESSIONAL GLOBAL SUPPLIER OF USED CONSTRUCTION EQUIPMENT WITH HEAD OFFICE IN SHANGHAI &SUB-BRUNCH IN MALAYSIA. If you want to buy our machines ,please kindly contact me ,I am here waiting for you !
Can test the machine when you come to our yard. We have a professional team to provide
professional and thoughtful service.
Why choose us
1: we are professional used excavator company in shanghai.
2: we have almost any model and brand used machines you need with good quality and
competitive price.
3: over 20 years machine Experience[ 10 years is main domestic market], we know what you
need, even what your customers need.
4: professional mechanic team to insure machine in good working condition.
5: 20,000 sqm yard, provide almost all kind of machines.
6: short delivery, 3-9 days after deposit.
7: Experienced international trading team give the best Full-set service.
Contact me
Email: david at
WhatsApp +86 139 1624 2186
Skype: krystal100001
Wechat:yy13916242186
We have all kind of used construction machinery more than 5000 sets including Caterpillar,
Hitachi, Volvo, Komatsu, Kobelco, Doosan, Etc.
We have a sub-company in Malaysia[ the head office in shanghai China.] our promise is that we
arrange our professin.
Business Type: Trading company.
Main products: Used Excavator, Used Bulldozer, Used Loader, Used Grader, Used compactor.
Number of Employees: 51-100 people.
Number of QC staff: 11-20 people.
Main Markets: Africa, South Asia, Mid East, Southeast Asia, Domestic Market, South America, Southern Europe, Eatern Europe, Western Europe, Eatern Asia, Northern Europe, Central
America.
