SBM hot sale German technical industrial vibratory screen price

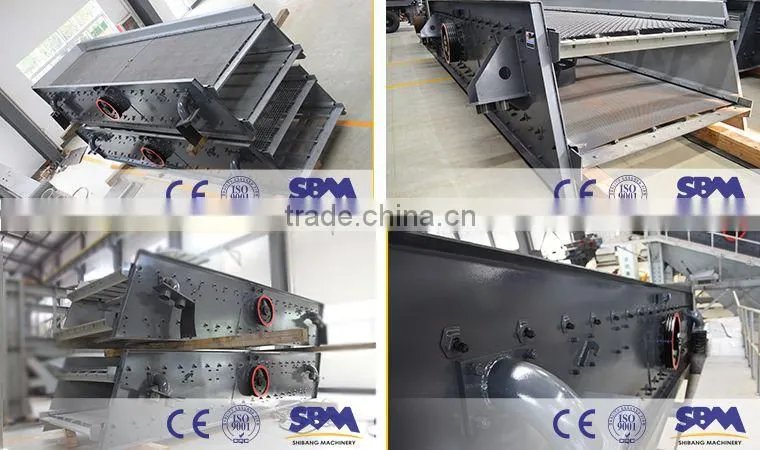

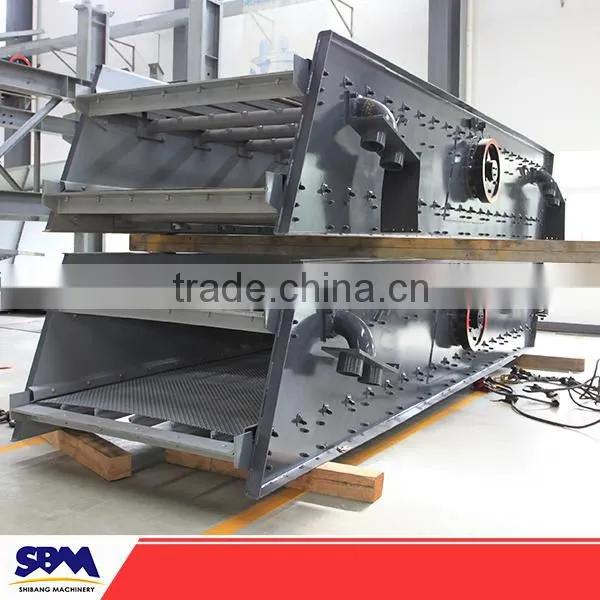

SBM industrial vibratory screen
The industrial vibratory screen for stone crushing plant of this series is a new type of multi-layer, high efficiency industrial vibratory screen. The screen for stone crusher plant is with adjustable amplitude, material screen of long line, multi-layer screen separation, clear screening of each specification, high efficiency of screening and it is widely used for product grading in departments of mining area, sandstones, building materials, transportation, energy, chemical industry, etc. (Note: our company can provide industrial vibratory screen of different specification and various vibration types according to the requirements of the consumers.)
industrial vibratory screen application

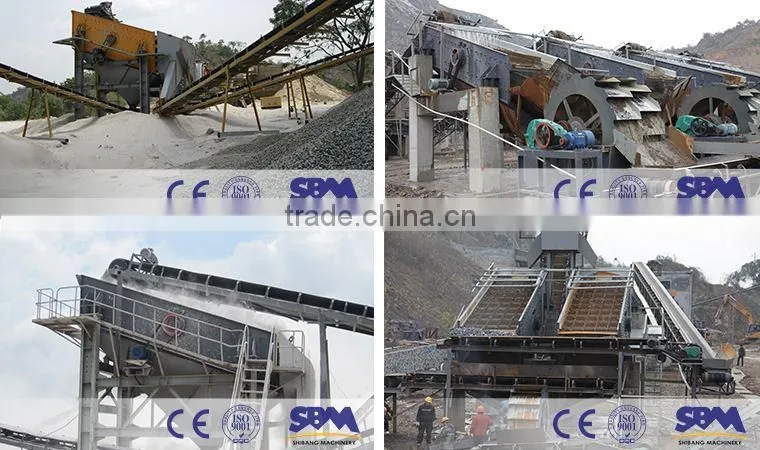

It is widely used for grading and screening materials in the following fields: mines, quarries, aggregate, high-way construction, building materials, chemical industry, metallurgy and so on.
If you are interested in YA industrial vibratory screen by us, please call us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Shanghai Shibang Machinery Co., Ltd. will provide quality service to you!
| Model | Layers | Screen Area (m²) | Sieve Pore Size (mm) | Spec. of Screen (mm) | Max. Feed Size (mm) | Capacity (t/h) | Vibrating Frequency (Hz) | Double Amplitude (mm) | Power (Kw) | Weight (Excluding Motor) (t) | Overall Dimension (LxWxH) (mm) |
| 2YA1237 | 2 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 5.5 | 2.34 | 4642x2250x2659 |
| 3YA1237 | 3 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 7.5 | 3.05 | 4898x2250x3133 |
| 2YA1548 | 2 | 7.2 | 5~50 | 1500x4800 | 400 | 50~208 | 970 | 8 | 15 | 5.33 | 5802x2585x3053 |
| 3YA1548 | 3 | 7.2 | 5~50 | 1500x4800 | 400 | 50~250 | 970 | 8 | 15 | 6.07 | 6046x2585x3537 |
| 2YA1848 | 2 | 8.64 | 5~80 | 1800x4800 | 400 | 50~260 | 970 | 8 | 18.5 | 6.65 | 5802x2947x3053 |
| 3YA1848 | 3 | 8.64 | 5~80 | 1800x4800 | 400 | 50~300 | 970 | 8 | 18.5 | 6.93 | 6046x2947x3538 |
| 2YA1860 | 2 | 10.8 | 5~80 | 1800x6000 | 400 | 50~300 | 970 | 8 | 22 | 7.52 | 7011x2947x3471 |
| 3YA1860 | 3 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 7.72 | 7243x2987x3955 |
| 4YA1860 | 4 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 8.70 | 7498x2987x4439 |
| 2YA2160 | 2 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.2 | 7076x3402x3666 |
| 3YA2160 | 3 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.5 | 7284x3467x4092 |
| 4YA2160 | 4 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.8 | 7551x3467x4582 |
| 2YA2460 | 2 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.4 | 7046x3770x3603 |
| 3YA2460 | 3 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.8 | 7289x3 |
...
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
Q: Why we believe in Shanghai shibang company?
A:
1. More than 20 years experience.
2. SBM is the leading professional supplier of solution, equipments and service for crushing and grinding industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support SBM has been largely adopting new technologies, new techniques and high-tech equipments. And SBM also has strict and effective quality control system.
