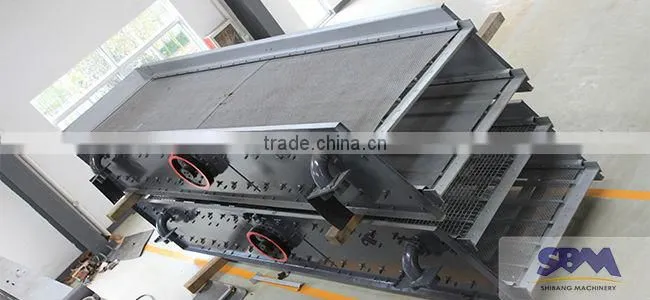

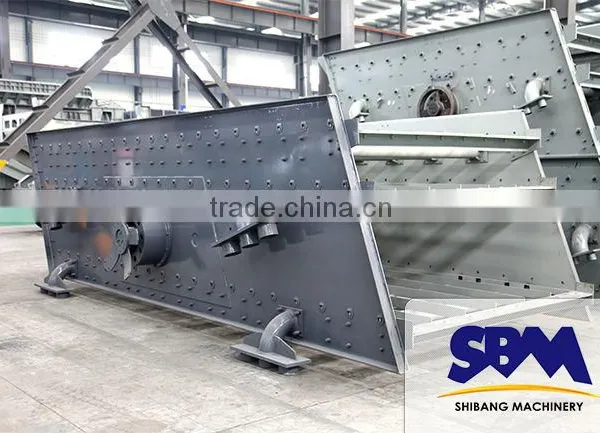

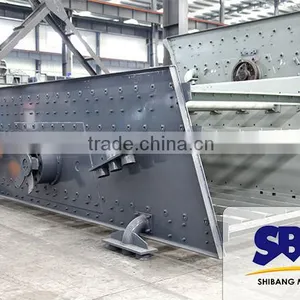

SBM high quality screen machine

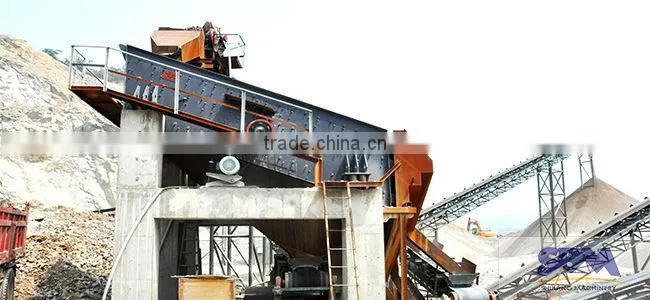

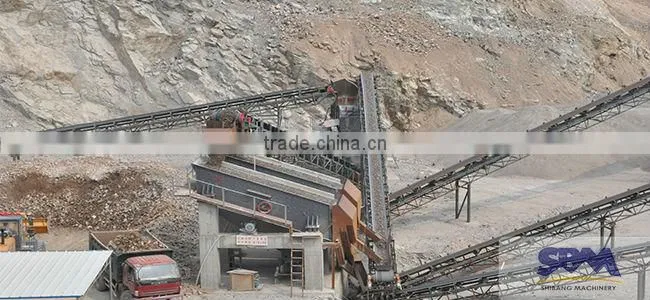

Shanghai Shibang Machinery Co., Ltd. is a specific company for manufacturing mining equipment. The sale prospect of screen is always in the leading place of the same trade. The screen machine for stone crushing plant of this series is a new type of multi-layer, high efficiency round screen machine . The screen for stone crusher plant is with adjustable amplitude, material screen of long line, multi-layer screen separation, clear screening of each specification, high efficiency of screening and it is widely used for product grading in departments of mining area, sandstones, building materials, transportation, energy, chemical industry, etc. (Note: our company can provide screen machine of different specification and various vibration types according to the requirements of the consumers.)
screen machine application
It is widely used for grading and screening materials in the following fields: mines, quarries, aggregate, high-way construction, building materials, chemical industry, metallurgy and so on.
If you are interested in YA screen machine by us, please call us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Shanghai Shibang Machinery Co., Ltd. will provide quality service to you!
| Model | Layers | Screen Area (m²) | Sieve Pore Size (mm) | Spec. of Screen (mm) | Max. Feed Size (mm) | Capacity (t/h) | Vibrating Frequency (Hz) | Double Amplitude (mm) | Power (Kw) | Weight (Excluding Motor) (t) | Overall Dimension (LxWxH) (mm) |
| 2YA1237 | 2 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 5.5 | 2.34 | 4642x2250x2659 |
| 3YA1237 | 3 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 7.5 | 3.05 | 4898x2250x3133 |
| 2YA1548 | 2 | 7.2 | 5~50 | 1500x4800 | 400 | 50~208 | 970 | 8 | 15 | 5.33 | 5802x2585x3053 |
| 3YA1548 | 3 | 7.2 | 5~50 | 1500x4800 | 400 | 50~250 | 970 | 8 | 15 | 6.07 | 6046x2585x3537 |
| 2YA1848 | 2 | 8.64 | 5~80 | 1800x4800 | 400 | 50~260 | 970 | 8 | 18.5 | 6.65 | 5802x2947x3053 |
| 3YA1848 | 3 | 8.64 | 5~80 | 1800x4800 | 400 | 50~300 | 970 | 8 | 18.5 | 6.93 | 6046x2947x3538 |
| 2YA1860 | 2 | 10.8 | 5~80 | 1800x6000 | 400 | 50~300 | 970 | 8 | 22 | 7.52 | 7011x2947x3471 |
| 3YA1860 | 3 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 7.72 | 7243x2987x3955 |
| 4YA1860 | 4 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 8.70 | 7498x2987x4439 |
| 2YA2160 | 2 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.2 | 7076x3402x3666 |
| 3YA2160 | 3 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.5 | 7284x3467x4092 |
| 4YA2160 | 4 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.8 | 7551x3467x4582 |
| 2YA2460 | 2 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.4 | 7046x3770x3603 |
| 3YA2460 | 3 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.8 | 7289x3 |
...
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
About SBM
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.
The head office of SBM is in Shanghai- the international financial centre. Here we have professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
About SBM Factory
SBM (Shanghai shibang machinery Co.,Ltd) has three factories, the gross area is about 2.3 million square meters. Various world-class CNC are in these factories, such as CNC VTL OPERATOR, Planing Machine, CNC heavy-duty horizontal lathe. These advanced equipments ensure that our products are of precise specification. Also, we have professional Quality inspection division, every machines produced must be examined strictly, the quality is guaranteed.
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
SBM has been largely adopting new technologies, new techniques and high-tech equipments. And SBM also has strict and effective quality control system. We have obtained ISO9001:2000 quality system certificate.
SBM insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
SBM is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation. Our professional engineers will design the most reasonable scheme for the real production line.
"Clients' demand" is always the beginning and end of SBM's work. We will continuously create more qualified products and more perfect technological service, bring more benefits to our clients. SBM service promise: begin with design, concern the detail, end with clients' satisfaction.
