Help CenterBest Quality High Technology BRASS SWING CHECK VALVE FROM VIET NAM - DN100
Related Products
-
BRASS SWING CHECK VALVE DN 65US$ 13.75 - 14.25MOQ: 1 Unit -
BRASS SWING CHECK VALVE DN 80US$ 19.2 - 19.7MOQ: 1 Unit
-
MBV Brand Brass Swing Check Valve 1/2" From VIET NAM - DN15US$ 0.94 - 1.3MOQ: 1 Piece
-
BRASS SWING CHECK VALVE FOR WATER FROM VIET NAM WITH PN16 - DN20US$ 1.25 - 1.5MOQ: 1 Piece
-
the United Kingdom Brass Swing Check Valve From Vietnam - Dn25US$ 2.2 - 2.5MOQ: 1 Piece
Minh Hoa is seeking the oppotunities to co-operate with any enterprise in the water supply industry who is in need of machining brass fittings and import common brass products such as valves, garden taps. Here are some information of our brass swing check valve MIHA brand product that you might need.
SPECIFICATION

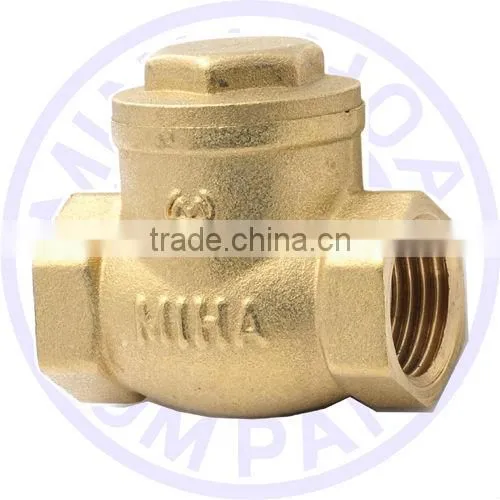

Brass swing check valve, With Brass seat, Screwed ends.
BS Standard
Max. working pressure: 16 Bar
Max. working temperature: 120oC
MATERIAL
NO PARTS MATERIAL
1 |
Body |
Brass |
2 |
Swing disc |
Brass |
3 |
Pin |
Brass rod |
4 |
Bonnet |
Brass |
5 |
Lock screw |
Brass rod |
DIMENSION
|
VALVE SIZE ( Inch) mm |
4
100 |
|
ØA (mm) |
89 |
|
B (mm) |
162 |
|
C (mm) |
20 |
|
SW (mm) |
122 |
|
Weight (g) |
4000 |
|
Pcs/box |
1 |
If you wonder about our manufacturing capcacity, here is a glance of our profuse human& machinery resource to serve your need. We have 24 hot forging machine for creating valve body and valve parts and 7 cold forging machine to handle bavia. Then those valve parts will be machining with more than 50 machining machines, and nearly 30 semi-automatic machines.
Here is a glance of our machines for creating brass swing check valve
Forging machine to make valve parts and body
Medium forging machine with 40-160 tons of force
Large forging machine with 325 tons of force specialized to produce large size valves
Then our machining machines
NC lathe machines
NC lathe machine
Automatic lathe machine
And to create good brass swing check valve products , we need not only sufficient machines but also high quality brass pieces. And all the brass material for export products - MIHA brand is high quality brass rod imported from Malaysia. And we also adapt a strictly inspection procedure for each batch of output brass parts with a Germany spectrometer - Spectromax.
