cheap price mini dvbs mpeg2 fta world satellite receiver

FOB Price

USD $5.9 - $15.9 / Piece

1000 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	oem/odm	Model Number:	ajy-dvbs003d
FTA(Free To Air):	Yes	Type:	Digital	High Definition:	Yes

Product Description

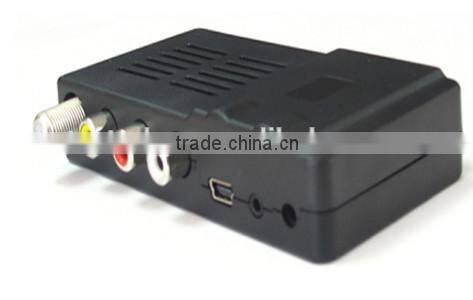

cheap price mini dvbs mpeg2 fta world satellite receiver

welcome to SHENZHEN ANGEL JIAYI TRADING CO.,LTD

WE ARE MANUFACTURE DVBT2,DVBS2,ISDB-T,DVBC,DVBT,DVBS AND SO ON PLEASE CHECKING AND BULK ORDER!

HAPPY FAMILY LIFE FROM HERE!

packaging&shipping

product description

Main Feature	* Integrated DVB-S tuner
	* RF signal strength and signal quality display
	* MPEG-2 digital & fully DVB-S compliant
	* SCPC and MCPC receivable from C/Ku band satellite
	* Automatic PAL/NTSC conversion
	* 2500 channels TV and Radio programmable
	* DiSEqC 1.0 fully support, 13/18V, 0/22K LNB control
	* True colors on screen display friendly user menu
	* On Screen Display with multi-language
	* Picture in Graphics(PIG) support
	* 256 colors On Screen Display
	* DiSEqC 1.0 fully support, 13/18V, 0/22K LNB control
	* Various channel editing function(favorite, add and delete)
	* Software upgrade through USB
	* Plug and Play installation, with an ease to use Menu System
	* Software upgrades through RS232 port and Receiver to receiver
System Resource
CPU	Ali3329
CPU Frequency	133Mhz
Operating System	Ecos
SDRAM	16Mbit
FLASH	4Mbit
DVB-S Tuner
Tuner Type	AV2028 ON BOARD
Frequency Range	950 ~ 2150MHz
LNB Power and Polarization	Vertical 13VDC;Horizontal 18VDC @ 300mA (max) 22KHz±4KHz(0.6V±0.2V)tone, Overload Protection
RF Remodulator Type	Channel 11, PAL-B/G
Input Impedance	75Ω
DBS Channel Decoder
DVBS Demod standard	DVB-S(ETS 300 421)
DVBS Demodulation	QPSK
DVBS Symbol Rate	2 ~ 45MSPS(Code Rate 1/2)
DVBS Code Rate	1/2,2/3,3/4,5/6,7/8
TS Demux
Demultiplexer	MPEG2 ISO/IEC 13818-1
Audio Decoder
Audio Decode	MPEG1,MPEG2 ISO/IEC 13818-3 LAYER I&II
Sound Mode	LEFT/RIGHT/STEREO/MONO
Sampling Frequency	32KHz,44.1KHz,48KHz
AV output
Video Bandwidth	5.5MHz(-3dB)
Audio Freq. Range	20~15KHz
Audio Impedance	600Ω
Audio Voltage Level	2V rms(5.6Vp-p)
Video Impedance	75Ω
Video Voltage Level	1.0 Vp-p

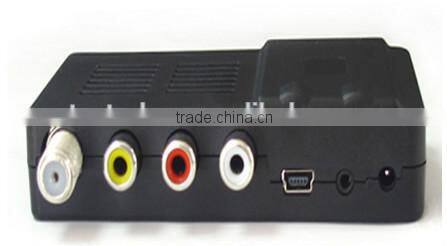

Back Panel
LNB IN	IEC 169-24, F-Type, Female
RF OUT	IEC 169-2,Male
RCA	1xCVBS,1 AUDIO LEFT & 1 AUDIO RIGHT
RS232	1xDB9 Male/1 MINI USB
IR	1xEarphone
POWER	DC12V Power adapter
Front Panel
LED Indicator	RED:STANDBY;GREEN:LOCK

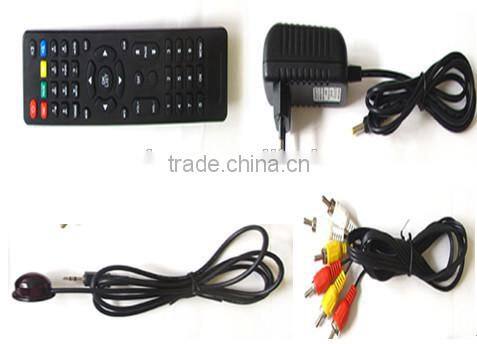

Remote Control
Remoter Type	RS01
Battery Type	2 x 1.5V AAA
Dimension
Size	120mm/160mm plastic case and 130mm mantel case
Accossories
Battery	2 x 1.5V AAA
Environment
Input Voltage	DC12V/1A Power adapter
Temperature	0~40℃
Humidity	<95%
Consumption	Max 12W
