New Design Mobile Digital Car Dvb t2 tv Receiver Car Mobile DVB-T/T2 Receiver

FOB Price

US$ 52 - 72 / Piece

1000 Pieces(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	oem/odm
Model Number	ajy-m1503r	FTA(Free To Air)	Yes
Type	Digital	High Definition	Yes

Product Description

new design mobile digital car dvb t2 tv receiver Car Mobile DVB-T/T2 Receiver

welcome to SHENZHEN ANGEL JIAYI TRADING CO.,LTD

WE ARE MANUFACTURE DVBT2,DVBS2,ISDB-T,DVBC,DVBT,DVBS AND SO ON PLEASE CHECKING AND BULK ORDER!

HAPPY FAMILY LIFE FROM HERE!

product description

Accessories&Gift box

Main Feature

M150 is a amazing car mobile DVB-T2 receiver that can decode at very high speed of more than 150km/h

Excellent body design for car using.Aluminum alloy material makes sure the good performance of heat dissipation

Easy to install by using specialized magic stick

Linux operated system,configured with CPU of 1833DMIPS,DDR3 of 256MB,flash of 128MB.Working smoothly based on high configuration

Support HDD/USB disk multimedia play,compatible with format of DivX,TS,MKV,TP,AVI,VOB,DAT,MPG,MPEG,MOV,AAC,MP3,WMA,JPG,BMP,JPEG,PNG,etc

Specialized designed power supply,supports wide range 9~38v

High speed mobile antenna was built in, it can control signal intensity automatically

Multi language support,such as Arabic,Deutsch,English,Espanol,French,Italian,Polish,Portuguese,Russian,Thai,Turkish,etc

Original smart card reader supported,such as Conax and Irdeto

With extened IR remote reception module,can use remote control everywhere inside the car

System Resource

CPU

684MHz/1833DMIPS

Operating System

Linux

SDRAM

256Mbyte DDR3

FLASH

128Mbytes (nand-flash)

DVB-T2/T Tuning and De-Multiplexing

Connector

1 x IEC 169-24 female 75Ω for Input,

Input Frequency

VHF 177.5MHz - 226.5MHz,UHF 474MHz - 858MHz

Input Level

-75dbm~-15dbm

Demod standard

DVB-T(EN 300 744) and DVB-T2 (EN302 755)

Demodulation

QPSK, 16QAM, 64QAM for DVB-T

QPSK, 16QAM, 64QAM, 256QAM for DVB-T2

FFT Mode

2K, 8K for DVB-T

1K, 2K, 4K, 8K, 16K, 32K, 32K ext for DVB-T2

FEC Code Rate

1/2, 2/3, 3/4, 5/6, 7/8 for DVB-T

1/2, 3/5, 2/3, 3/4, 4/5, 5/6 for DVB-T2

Guard Interval

1/4, 1/8, 1/16, 1/32 for DVB-T

1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 for DVB-T2

Bandwidth

6MHz, 7MHz, 8MHz

De-multiplexer

MPEG2 ISO/IEC 13818-1

Digital Video Decoding

Standard

ISO/IEC 13818-2 and ISO/IEC 14496-10

Video Decoding

MPEG4,MP@ML,MP@HL,H.264/AVC

Aspect Ratio

4:3 and 16:9, HD to SD Conversion

Video Resolution

480i/480p/576i/576p/720p/1080i/1080p

Output Voltage

1.0`2.0mVp-p

Digital Audio Decoding

Standard

ISO/IEC13818-3 and TR1011154

Audio Decoding

MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC

Audio Mode

Single channel, Dual Channel, Stereo, Joint Stereo

Audio output

2Vp-p

Subtitle & Teletext

Subtitle

DVB Subtitle

Teletext

EBU TELETEXT

Menu Function

Channel Search

Automatic search based on LCN or NIT

Manual search based on Frequency and channel number

Channel Management

Up to 10,000 channels edition,delete,move,lock,rename;8 favorite channel groups

EPG

7 days

Language

Arabic,Deutsch,English,Espanol,French,Italian,Polish,Portuguese,Russian,Thai,Turkishand,etc

Software Update

loader through USB and OTA

Security

Menu lock, Parental lock, PIN lock

PVR Option

Function

Play/Stop/Record/Pause/Forward/Back, Scheduled Recording using EPG

Profiles

3.x, 4.0, 5.0, 6.0 Home Theater & HD profiles

File System

FAT 32

Media Format

MPEG2, TS, AVI, MKV, ASF, Quick, DivX,FLV, VC-1

DivX 3.X ~ 6.X,AVI,VOB,MOV,MKV,JPEG,BMP,PNG,Motion JPEG,Flash 3.1 Lite

Connector

USB 2.0 supporting external hard disk up to 250-500GB

Conditional Access Option

CA Vendor

Conax,Irdeto,etc

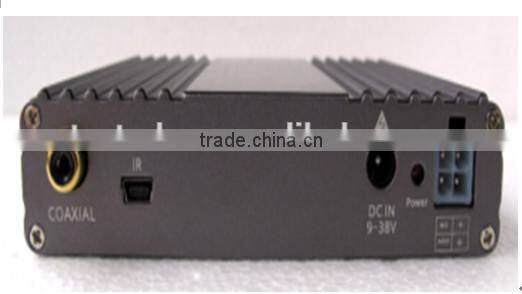

Front Panel

Power Port

1x DC 9~38V/1.5A input port,universal DC12V input supported

Applicable Power

Car storage battery (9V~ 38V)

USB

1 x USB 2.0 for external Hard Disk multimedia function

Mini USB

1 x Mini USB 2.0 for external IR Remote Control

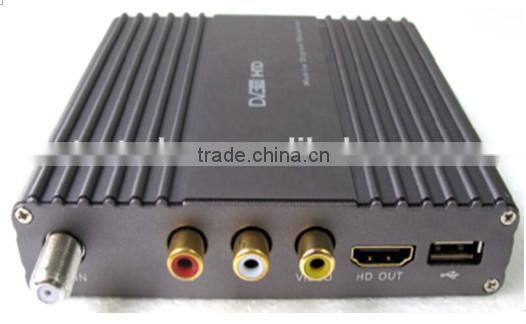

Back Panel

1 x IEC 169-24female for Input,

CVBS

3 x RCA female for Video, Audio Left and Audio Right

HDMI

1 x HDMI 1.3 with HDCP (up to 1920x1080p)

USB

1 x USB 2.0 for external Hard Disk PVR function and software update

Physicals

Power Supply

DC 9V~38V/1.5A

Power Consumption

12W in operation

<1W auto Standby Green Power Mode

Temperature

Operation -5~+45℃; Storage -20~+60℃

Humidity

20~90%, non-condensed

STB Dimension

121mm x115mm x 26mm

Gift Box Dimension

215*175*74mm

Unit Weight

0.30kg

Packaging Weight

1.14kg

Carton Information

TBC

Shipment Information

TBC

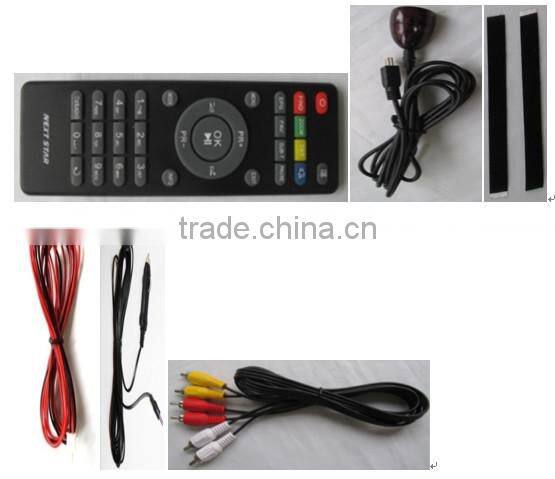

Accessories

Remote Control,AV Cable(2M),Extended IR unit(5M),Antenna(5M),DC power cable(2M),Applicable power cable(1.5M),Magic stick(2sets),User Guide

HDMI Cable in option

Remote Control Unit

Keys

31 with digit,Up/Down/Left/Right/OK,Volume+/-,Program+/-,PVR keys,EPG key,etc

Mode

Infra Red with 38kHz Carrier

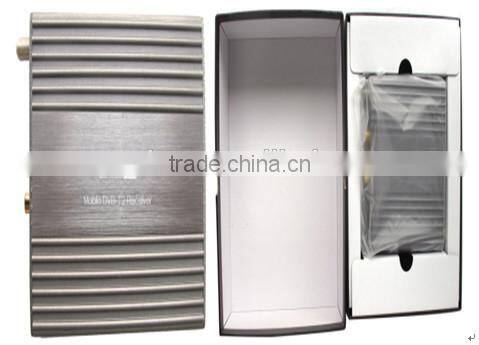

packaging&shipping
