fire extinguisher powder refilling machine
semi-automatic ,manual
speed: 5kg /min
Weight:110Kg
no pollutio

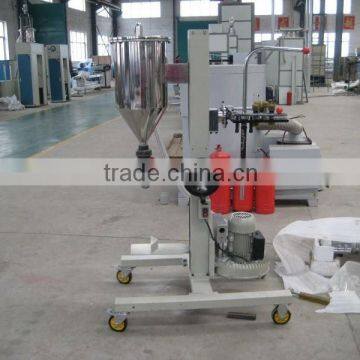

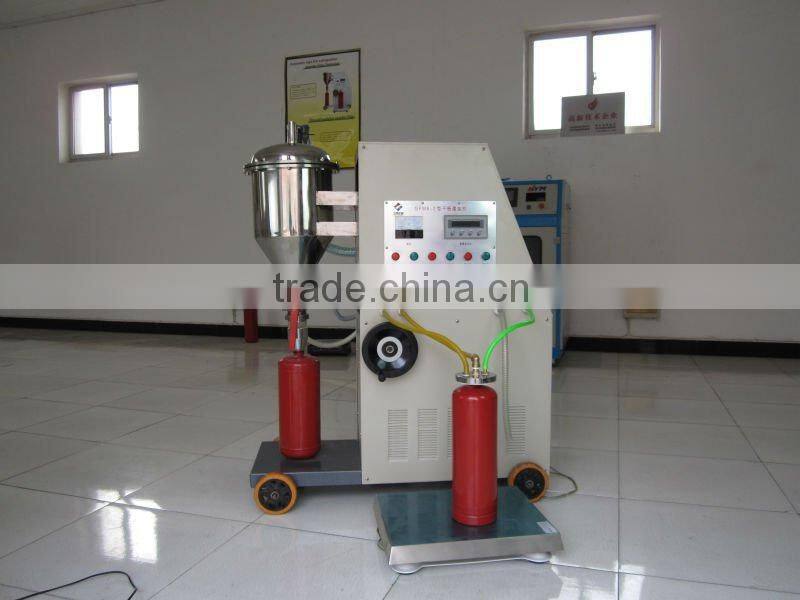

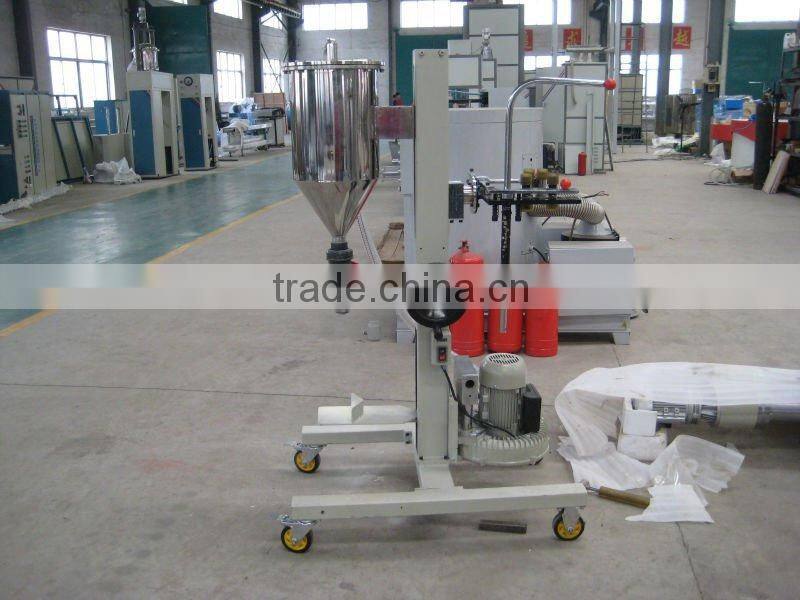

hot product higher Accuracy fire extinguisher powder refilling machine/ fire extinguisher powder filling machine (Pollution-free)
Model GFM 16-1 dry powder filler is a new product developed by our factory after absorbing the advantages of powder fillers at home and abroad. It can quickly suck dry powder into the cylinder and be directly filled in the cylinder of the extinguisher to be filled by vacuum fluidics; the dry powder can also be directly sucked into the cylinder of the extinguisher to be filled through the filling and cover. It can directly recover the dry powder in the cylinder of the old extinguisher. The equipment has the functions of lifting and dropping the cylinder electrically by just treading on the rise or fall pedal. It features small volume, easy movement, simple operation and lack of environmental pollution. Thus labor intensity is decreased and work environment is improved. It can fill various models of extinguisher cylinder and also suitable for filling various powder products. So it is an ideal equipment in the powder filling industry.
I. Technical parameters
Volume: 400×800×1350 mm (W×L×H)
Voltage: AC 220 V
Power: 1.1 KW
Filling rate: 5 kg/min
Filling residue: 1 kg ≤ 0.04
II. Direction for use
The filler can be used in two methods:
The first filling method:
1. Check if the connection of the hose is tight.
2. Connect the lead-in of the device to the mains and have the ground wire connected when in use;
III. Recovery of Dry Powder
1. The dry powder in the depressurized extinguisher cylinder can be recovered directly by inserting the powder suction pipe into the extinguisher cylinder. See to it that the powder should not be inserted too deeply and the inactive powder can’t be sucked out.
2. The pressurized powder in the extinguisher cylinder can be recovered by inserting the powder spraying pipe of the extinguisher cylinder into the powder suction pipe of the filler. Press the “start” (Figure 2-7) button, pull out the safety bolt of the extinguisher cylinder and press the handle, the dry powder will quickly go into the cylinder (Powder type should be identifi
IV. Other Methods of Application
Hand-propelled extinguisher cylinder can be filled by the second method as its volume is great.
V. Maintenance
1. An appropriate amount of 20# lubricant should be filled into the driving parts of the elevator before each use.
2. When the powder suction pipe is working, it should not be inserted too deeply, or blockage of pipe may occur.
3. No dry powder with serious corrosion and above-norm moisture content can be used against damage of equipment.
VI. Common Faults and Their Removal
Initially, powder can be sucked up. Suddenly, interruption happens without suction.
In the process, much powder is discharged from the filter
