Diamond Wire Saw Machine Used for Stone Block Cutting (granite Marble)

Diamond Wire Saw Machine Used for Stone Block Cutting (granite Marble) thumbnail-1
Diamond Wire Saw Machine Used for Stone Block Cutting (granite Marble) photo-1
US$ 28,500 - 32,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, Granite, marble, limestone, sandstone travertine
Contact Supplier Request Quote Chat Now
Xiamen Qicheng Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, Granite, marble, limestone, sandstone travertine
Production Capacity 1-2M2/h(marble) / 0.5-1M2/h(granite), 1-2M2/h(marble) / 0.5-1M2/h(granite)
Place of Origin Fujian, China
Brand Name QCNG
Model Number QCXE-1800
Voltage 380V 50HZ
Power(W) 19.38KW
Dimension(L*W*H) 8800x 6800x4800 mm
Weight 10.5Tons
Certification CE&SGS
Warranty 6 month
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Product name: diamond wire saw machine used for stone block cutting (granite marble)

Function:
This machine major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line ,letter etc.

Technical Parameters
Parameter QCXE-1800

Aother Models of CNC diamond wire saw machine

 QCXE-1500 QCXE-2200
Wire Diameter φ7.3-11 mm φ7.3-11 mm φ7.3-11 mm
Wire Length 18500mm 16500 mm 21350 mm
Wire Speed 0-40 m/s 0-40 m/s 0-40 m/s
Cutter Up-Down Stroke 1900 mm 1600 mm 2200 mm
Maximum Cutting Size 3600×2000×1800 mm 3000×2000×1500 mm 4000×2000×2100 mm
Production Capacity

1-2 m2/h(marble)
0.5-1 m2/h(granite)

1-2 m2/h(marble)
0.5-1 m2/h(granite)

1-2 m2/h(marble)
0.5-1 m2/h(granite)
Overall demision 8800×6800×4800 mm 7500×6000×3800 mm  9800×7000×5200 mm
Total Weight 10.5T 7T 14T
Total Power 19.38KW 19.38KW 24.03KW
Working table rotation no no 360°

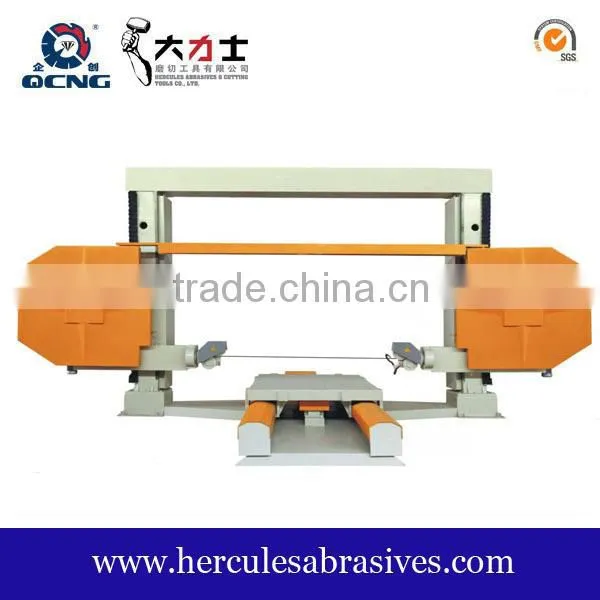

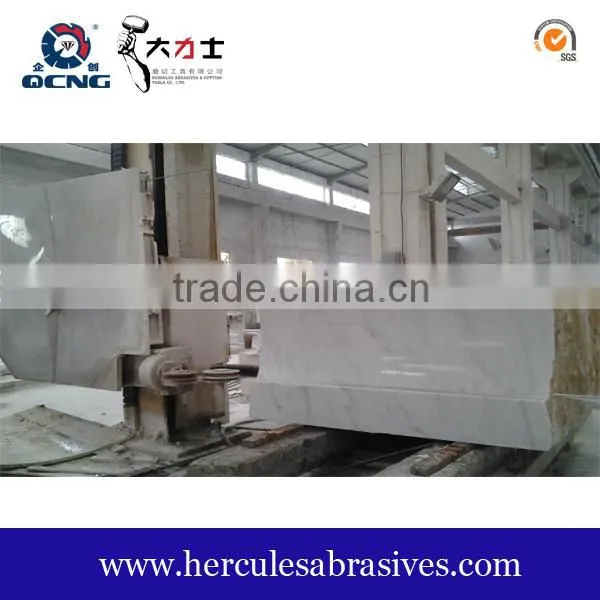

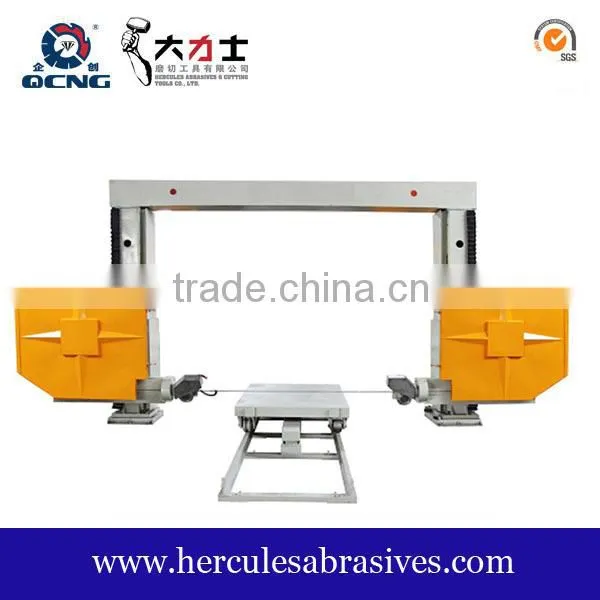

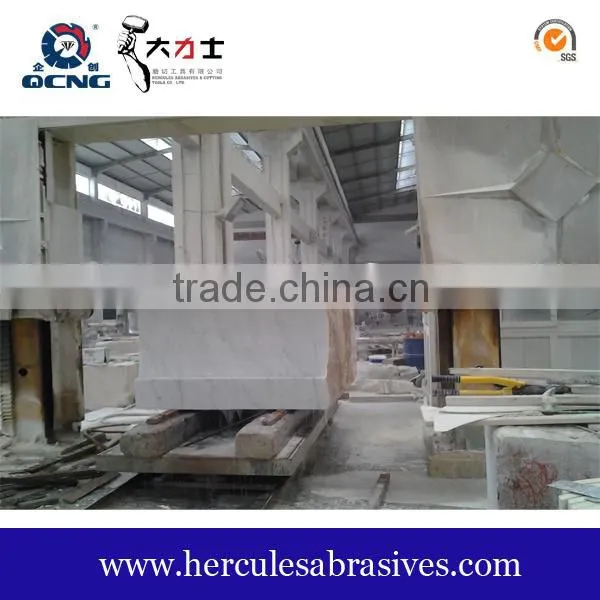

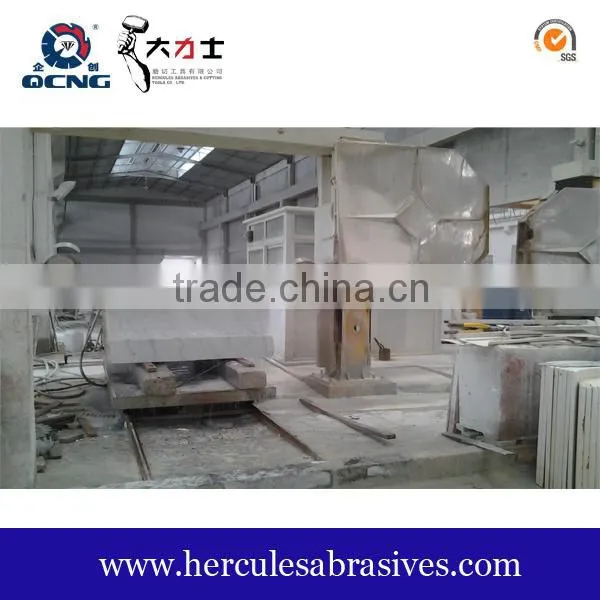

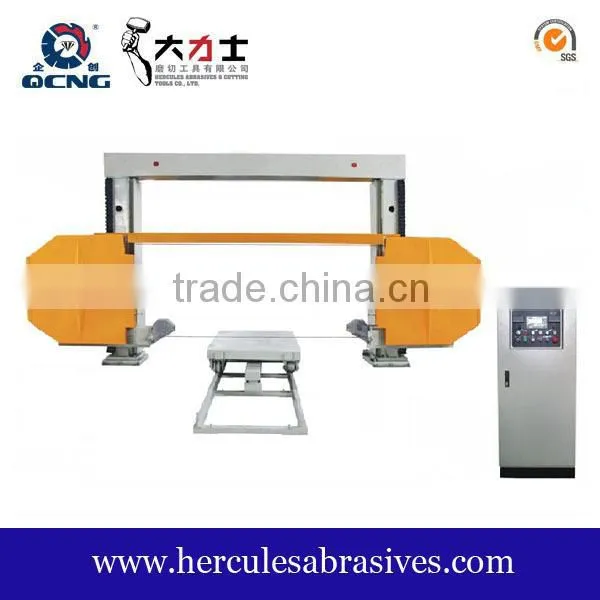

diamond wire saw machine used for stone block cutting (granite marble) detail Images:

diamond wire saw machine used for stone block cutting (granite marble)





diamond wire saw machine used for stone block cutting (granite marble)

diamond wire saw machine used for stone block cutting (granite marble)

diamond wire saw machine used for stone block cutting (granite marble)

diamond wire saw machine used for stone block cutting (granite marble)

diamond wire saw machine used for stone block cutting (granite marble)



Another model stone block cutting machines are offered. such as gangsaw, single arm multi-blades cutting machine etc.

Welcome to contact us by Trade manager (cn1515486353fker) or skype ( melanie.dalei ).

Packaging & Shipping





1. Packaging: nude packing, fixed by metal wire, sent in whole set

2. Shipping: By sea



Our Services





1. Engineer available to service machinery oversea.

2. Proposal for quarry development and plan, if necessary.

3. Top quality machine accessory are offer, such as diamond wire saw, fly wheel etc.

4. Professional One-Stop Service for your production line.



Company Information



diamond wire saw machine used for stone block cutting (granite marble)
Xiamen Qicheng Import & Export co.,Ltd is a professional supplier of stone processing machines and diamond tools.
  • Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
  • Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
We started exporting machinery and diamond tools since 2009. We keep high quality, reasonable price and excellent after-sales service. Meanwhile, we won respect of customers and established tight and long term business relationship with customers. We welcome customers to contact us for business proposal and inquiry.
Company Certification:
diamond wire saw machine used for stone block cutting (granite marble)
Exhibition:
diamond wire saw machine used for stone block cutting (granite marble)
