Infrared Bridge Stone Cutting Machinery for Granite Marble Slab Cutting

Infrared Bridge Stone Cutting Machinery for Granite Marble Slab Cutting thumbnail-1
Infrared Bridge Stone Cutting Machinery for Granite Marble Slab Cutting thumbnail-2
Infrared Bridge Stone Cutting Machinery for Granite Marble Slab Cutting photo-1
Infrared Bridge Stone Cutting Machinery for Granite Marble Slab Cutting photo-2
US$ 15,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bridge Saw
Use:
Marble
Contact Supplier Request Quote Chat Now
Xiamen Qicheng Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Bridge Saw
Use Marble
Production Capacity Depend on stone
Place of Origin Fujian, China
Brand Name QCNG
Model Number QCYI-600
Voltage 380V 50HZ
Power(W) 11KW
Dimension(L*W*H) 5480*4700*2800mm
Weight 6200kg
Certification CE&SGS
Warranty 6 month
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Product name:  Infrared bridge stone cutting machinery for granite marble slab cutting

Feature:

Technical data


QCYI-600 Automatic Bridge Saw, this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine. It is particularly applicable for cutting valuable and large stone plates

Blade diameter

mm

Φ400-Φ600

Blade vertical stroke

mm

380

Size of cutting table

mm

3200*2000

Worktable rotation angle(by hydraulic)

°

90° or 360°

Worktable upturning angle

°

0-85

Main motor power

kw

18.5

Voltage/Frequency


380V/50HZ

Feeding motor

kw

1.5

Slicing motor

kw

1.1

Dimension

mm

5480*4700*2720

Weight

kg

6000

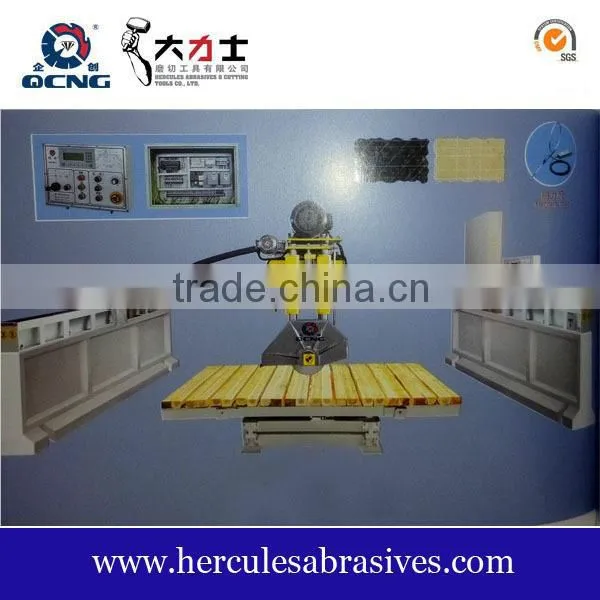

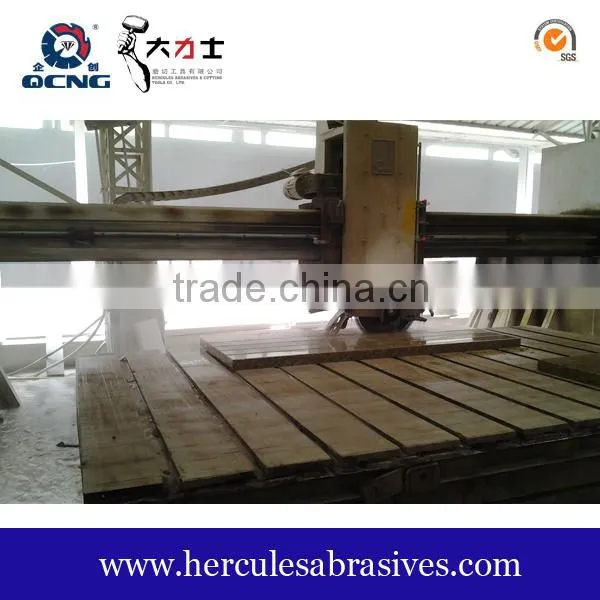

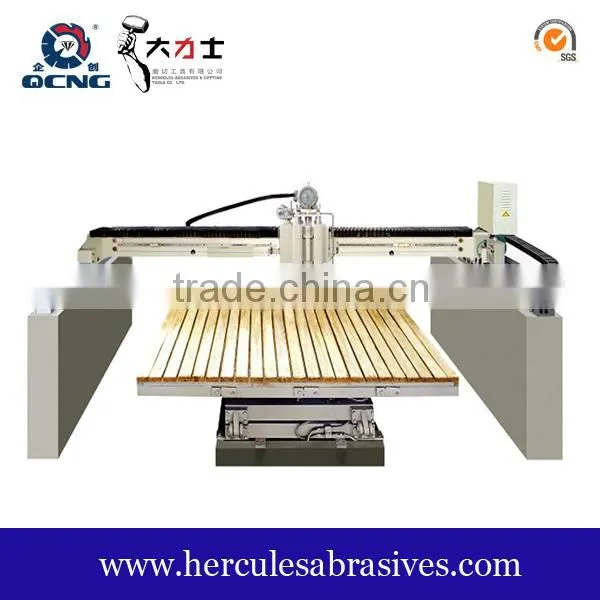

Infrared bridge stone cutting machinery for granite marble slab cutting images:



Infrared bridge stone cutting machinery for granite marble slab cutting





Infrared bridge stone cutting machinery for granite marble slab cutting

Infrared bridge stone cutting machinery for granite marble slab cutting



Another model infrared bridge type cutting machine, manual edge cutting machine and block cutting machines etc. are offered. Welcome to contact us by Trade manager (cn1515486353fker) or skype ( melanie.dalei ) or WhatsApp (+86-15959273244)





Packaging & Shipping





1. Packaging: nude packing, sent in whole set



2. Shipping: By sea in 1*20'GP





Our Services



1. Engineer available to service machinery oversea.



2. Proposal for quarry development and plan, if necessary.



3. Top quality machine accessory are offer, such as motor, blades, segments.



4. Professional One-Stop Service for your production line.



Company Information



Infrared bridge stone cutting machinery for granite marble slab cutting

Xiamen Qicheng Import & Export co.,Ltd is a professional supplier of stone processing machines and diamond tools.
  • Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
  • Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
We started exporting machinery and diamond tools since 2009. We keep high quality, reasonable price and excellent after-sales service. Meanwhile, we won respect of customers and established tight and long term business relationship with customers. We welcome customers to contact us for business proposal and inquiry.
Company Certification:
Infrared bridge stone cutting machinery for granite marble slab cutting
Exhibition:
Infrared bridge stone cutting machinery for granite marble slab cutting
Pls contact us as below details:

Tel: 0086-592-6256606, 6287717
Mobile: +86-159 5927 3244
E-Mail: ritahe (at)
Skype: melanie.dalei

Infrared bridge stone cutting machinery for granite marble slab cutting, stone cutting machinery, stone machinery
Ponte infravermelho máquina de corte de pedra para cortar laje de mármore granito, pedra de corte, máquinas de pedra
Puente de maquinaria de corte de piedra de infrarrojos para el corte losa de mármol de granito, maquinaria de corte de piedra, maquinaria de piedra
Ponte infrarossi macchine da taglio pietra granito marmo taglio lastra, macchine di pietra da taglio, macchine di pietra
