Home > Manufacturing & Processing Machinery > Stone Processing Machinery > Stone Cutting Machine > Cheap CNC Stone Wire Cutting Machine for Column Arc Shaping Quality Choice

Cheap CNC Stone Wire Cutting Machine for Column Arc Shaping Quality Choice

Cheap CNC Stone Wire Cutting Machine for Column Arc Shaping Quality Choice thumbnail-1
Cheap CNC Stone Wire Cutting Machine for Column Arc Shaping Quality Choice photo-1
US$ 28,400 - 29,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, granite, marble, travertine arc shape cutting
Contact Supplier Request Quote Chat Now
Xiamen Qicheng Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, granite, marble, travertine arc shape cutting
Production Capacity 1-2M2/h(marble) / 0.5-1M2/h(granite), 1-2M2/h(marble) / 0.5-1M2/h(granite)
Place of Origin China
Brand Name QCNG
Model Number QCXE-1500
Voltage 380V 50HZ
Power(W) 19.38KW
Dimension(L*W*H) 7500x6000x3800 mm
Weight 10.5Tons
Certification CE&SGS
Warranty 6 month
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Product name:  cheap CNC stone wire cutting machine for column arc shaping

Function:
This machine major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line ,letter etc.

Technical Parameters
Parameter QCXE-1500

Aother Models of  CNC wire stone profile shaping machine

QCXE-1800 QCXE-2200
Wire Diameter φ7.3-11 mm φ7.3-11 mm φ7.3-11 mm
Wire Length 16500mm 18500 mm 21350 mm
Wire Speed 0-40 m/s 0-40 m/s 0-40 m/s
Cutter Up-Down Stroke 1600 mm 1800 mm 2200 mm
Maximum Cutting Size 3000×2000×1500 mm 3600×2000×1800 mm 4000×2000×2100 mm
Production Capacity

1-2 m2/h(marble)
0.5-1 m2/h(granite)

1-2 m2/h(marble)
0.5-1 m2/h(granite)

1-2 m2/h(marble)
0.5-1 m2/h(granite)
Overall demision 7500×6000×3800 mm  8800×6800×4800 mm 9800×7000×5200 mm
Total Weight 7T 10.5T 14T
Total Power 19.38KW 19.38KW 24.03KW
Working table rotation no no 360°

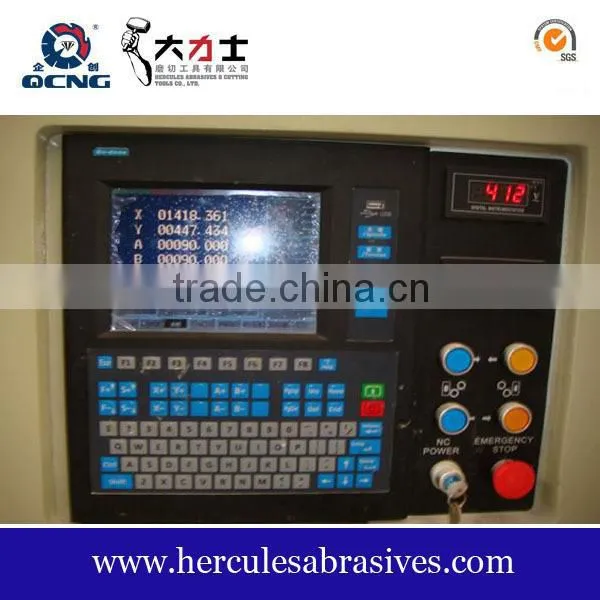

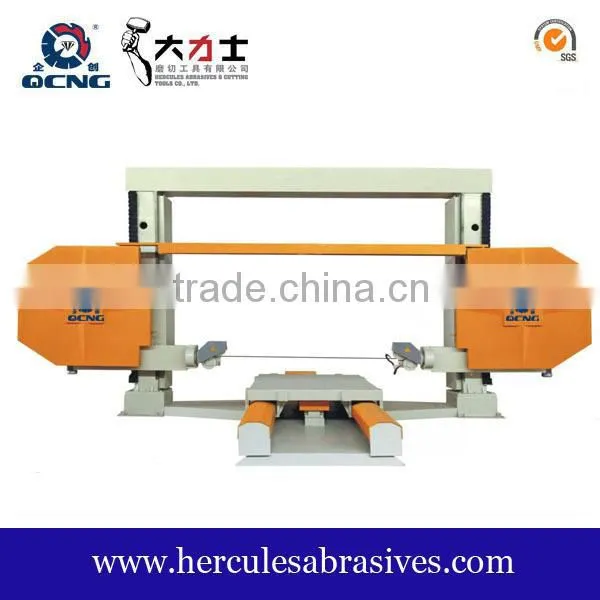

cheap CNC stone wire cutting machine for column arc shaping detail Images:

cheap CNC stone wire cutting machine for column arc shaping

cheap CNC stone wire cutting machine for column arc shapingcheap CNC stone wire cutting machine for column arc shapingcheap CNC stone wire cutting machine for column arc shaping

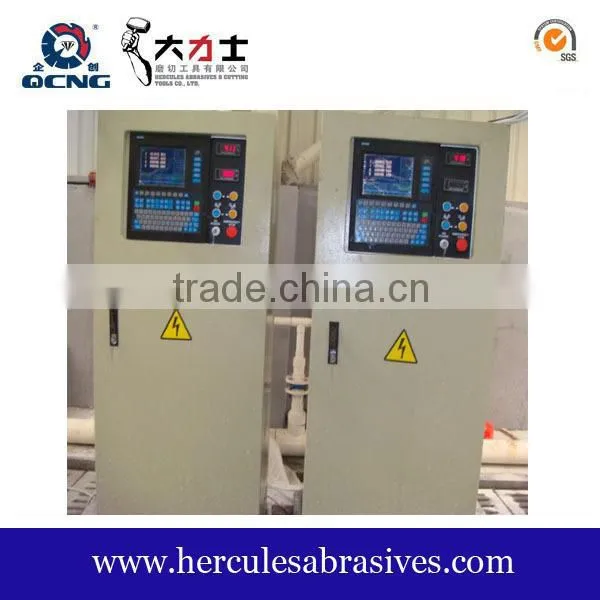

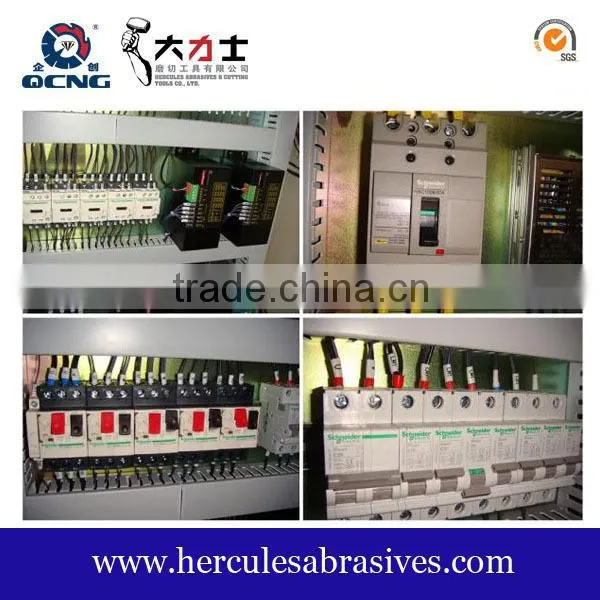

Joint Part Models of   cheap CNC stone wire cutting machine for column arc shaping:

cheap CNC stone wire cutting machine for column arc shaping

cheap CNC stone wire cutting machine for column arc shaping working pictures for reference:

cheap CNC stone wire cutting machine for column arc shaping

cheap CNC stone wire cutting machine for column arc shaping

cheap CNC stone wire cutting machine for column arc shaping

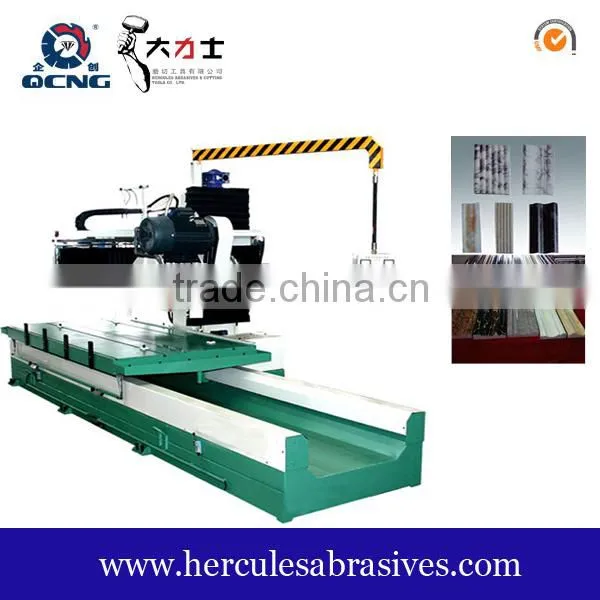

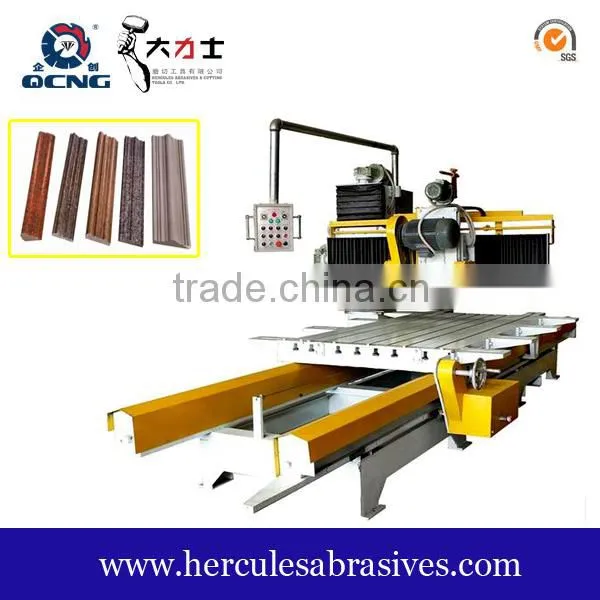

Another models of stone line profile shaping machine  are offered.  Please see below machine pictures for reference.

Welcome to contact us by Trade manager (cn1515486353fker) or skype ( melanie.dalei ) or WhatsApp ( +86 - 159 5927 3244 ).

cheap CNC stone wire cutting machine for column arc shapingcheap CNC stone wire cutting machine for column arc shaping

Packaging & Shipping





1. Packaging: nude packing, fixed by metal wire, sent in whole set

2. Shipping: By sea



Our Services





1. Engineer available to service machinery oversea.

2. Proposal for quarry development and plan, if necessary.

3. Top quality machine accessory are offer, such as diamond wire saw, fly wheel etc.

4. Professional One-Stop Service for your production line.



Company Information



cheap CNC stone wire cutting machine for column arc shaping
Xiamen Qicheng Import & Export co.,Ltd is a professional supplier of stone processing machines and diamond tools.
  • Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
  • Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
We started exporting machinery and diamond tools since 2009. We keep high quality, reasonable price and excellent after-sales service. Meanwhile, we won respect of customers and established tight and long term business relationship with customers. We welcome customers to contact us for business proposal and inquiry.
Company Certification:
cheap CNC stone wire cutting machine for column arc shaping
Exhibition:
cheap CNC stone wire cutting machine for column arc shaping
FAQ



cheap CNC stone wire cutting machine for column arc shaping
Pls contact us as below details:

Tel: 0086-592-6256606, 6287717
Mobile: +86-159 5927 3244
E-Mail: ritahe (at)
Skype: melanie.dalei
