75HP quarry diamond wire cutter for granite, marble, sandstone, limestone
- 100 Unit / Units per Month
- Xiamen
- T/T D/P D/A Credit Card
- MISHI 3200*2000mm automatic cnc 5 axis bridge saw granite marble stone cutting machine price from China
- MISHI automatic stone bridge saw granite stone slab cutting machines cnc sink cut out machine
- MISHI 5 axis countertop cnc bridge saw waterjet prices 3000x2000 mm bridge saw marble and granit cutting machine
- MISHI 5 axis jet saw stone cutter kitchen countertop 5axis grante bridge saw waterjet cutting machine
- MISHI multi function 3020 5 axis cnc granite bridge saw stone cutting machine tile cutter polishing cutting edging tombstone
- MISHI cheap cnc router 3d 4th axes 5 axis bridge saw granite stone slab cutting quartzite countertops tombstone engraving machine
Product Details
Condition: | New | Type: | Other, marble quarry wire cutting machinery | Use: | Marble |
Production Capacity: | High | Place of Origin: | China | Brand Name: | QCNG |
Model Number: | QCSJ-55 | Voltage: | 380V 50HZ | Power(W): | 55kw |
Dimension(L*W*H): | 1900x1200x1500mm | Weight: | 1600kg | Certification: | CE&SGS |
Warranty: | 6 month | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Technical Parameter | |||||
All electronics equipment adopt major internationl brands, main motor and walking motor adapt Siemens, hydraulic pressure system adapt Korean power modules with more reliability and mechanical life. Adapting frequency conversion and SCM operating system, which keeps perpetual tension. | |||||
Model | Power Head Uniaxial Cantilevered | Rail | 3mX3PCS | ||
Main Motor Power | 55KW (total power 58.75KW) | Walking Motor Power | 1.5KW | ||
Flywheel Diameter | 800 mm | Wire Line Speed | 0-40 m/s | ||
Driving Head Cutting Separation Distance | 2M | Feeding Power | 0.75 kw | ||
Power head rotation angle | 0- 360° | Feeding Speed | 0.3 m/h | ||
Left-Right Adjustment Distance | 350 mm | Length of Wire | 20-120m | ||
Machine size | 1900x1200x1500 | Machine Weight | 1600 kg | ||
Main features of the machine are as follows: | |||||
1. The line speed of the machine can be automatically adjusted within the range of 0-40m/s to accommodate different textures and different hardness stone. (eg, limestone, marble, granite, sandstone, slate, etc.) | |||||
2. Machine head turn360° to meet requirements of cutting horizontal, vertical, and other arbitrary angles. | |||||
3. Machine head left-right adjustment and rotation adapt electric control with high degree of automation. Machine head can move in the range of 0-350mm to assure Flywheel and the hole on the same plane whitout moving the machine. | |||||
4. With constant tension control theory, the use of advanced PLC control technology, can automatically adjust the feed rate according to changes in the size of the cutting force, the adjustment process is very stable and reliable, ensuring optimal cut state, can effectively protect the diamond wire and improve diamond wire life. Unattended operation can be fully realized in the device automatically runs. | |||||
5. Fast travel system in order to achieve fast backward function machine under no-load conditions, thereby improving the efficiency. | |||||
6. Self-protection features to achieve in the broken rope, overload, overvoltage, and other non-work environment, workers, and non-normal operation automatically stops running, avoid damage to the equipment to a certain degree. | |||||
7. Cutting process automatic control functions when needed to achieve temporary unsupervised. | |||||
8. portable multifunction operating platform for easy mobility. | |||||

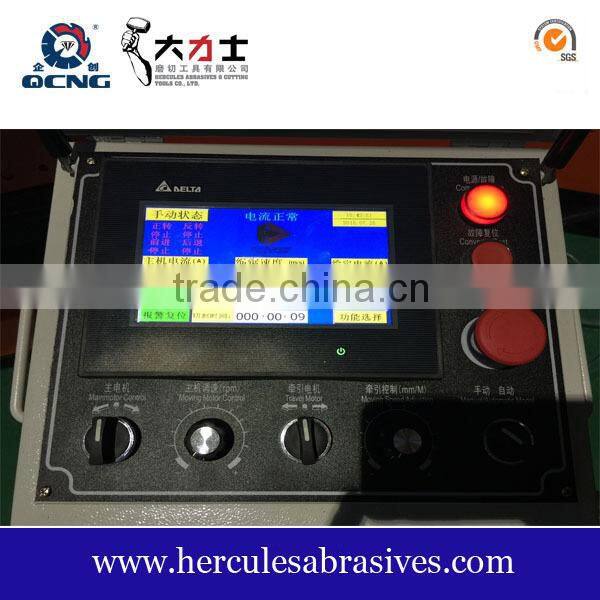

9. Multi-function text display, real-time display control current, cutting current, cutting speed, travel speed and cutting time, fault codes. | |||||
10. Corresponding to different levels of hardness of the stone cutting target current setting, and automatic control function, to obtain optimum cutting efficiency. | |||||
11. Control systems for heavy rail mounting plate and the body are connected by separate chassis, with the external environment and the mechanical transmission part is completely isolated, unique dust effects, and maintenance is very convenient. | |||||
12. Adopt international popular design, full equipment spray, exterior beautiful, generous, high surface coating curing strength, not falling. | |||||
Main Parts and Tool Kit of QCSJ-55 Quarry wire saw cutting machine | |||||
NO. | Parts Name | Quantity | Unit | Remarks | |
1 | Worm Gear Box Assembly | 1 | Set | ||
2 | Drive Motor Power | 1 | Set | ||
3 | Walking Motor | 1 | Set | Siemens | |
4 | Rotation Motor | 1 | Set | Siemens | |
5 | Translation Motor | 1 | Set | Siemens | |
6 | Traveling Reducing | 1 | Set | ||
7 | Translation Speed Reducing | 1 | Set | ||
8 | Rotating Reducing | 1 | Set | ||
9 | Inverter Control Board | 1 | PCS | Yaskawa | |
10 | Inverter Control Board | 1 | PCS | Yaskawa | |
11 | Inverter Control Board | 1 | PCS | Yaskawa | |
12 | Circuit Breaker | 1 | PCS | Schneide | |
13 | Circuit Breaker | 1 | PCS | Schneide | |
14 | Circuit Breaker | 1 | PCS | Schneide | |
15 | Three-way Switch | 1 | PCS | Schneide | |
16 | Two-way Switch | 1 | PCS | Schneide | |
17 | Illuminated Pushbutton | 1 | PCS | Schneide | |
18 | Urgent Stop Button | 1 | PCS | Schneide | |
19 | Operation Panel | 1 | SET | ||
20 | Data Line Kit | 1 | SET | ||
21 | Fly Wheel | 1 | PCS | With PU Rubber | |
22 | Rail | 3mX3PCS | PCS | ||
23 | Pulley(Aluminium) | 2 | SET | With Bearing Unit and PU Strip | |
24 | Pulley Bearing Unit | 2 | SET | Imported | |
25 | Universal Pulley Holder | 2 | SET | ||
26 | Universal Pulley Ring | 2 | SET | ||
27 | Hydraulic Cramping | 1 | SET | ||
28 | Cutting Plier for Wire | 1 | PCS | ||
29 | Taped Tool | 1 | SET | ||
30 | PU Strip | 3 | M |

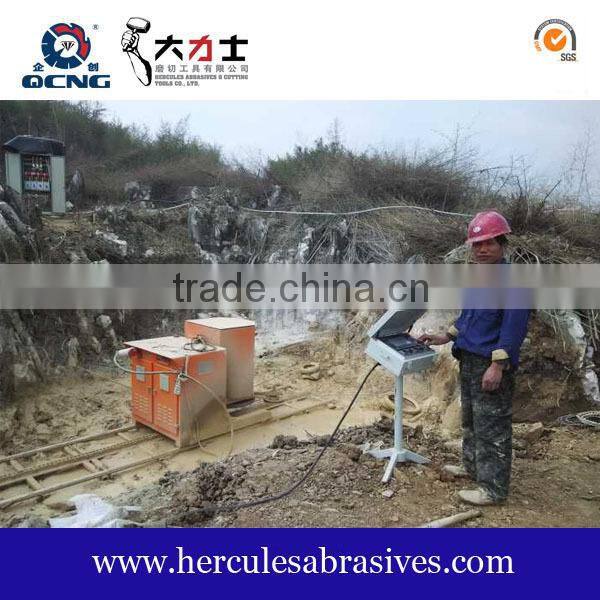

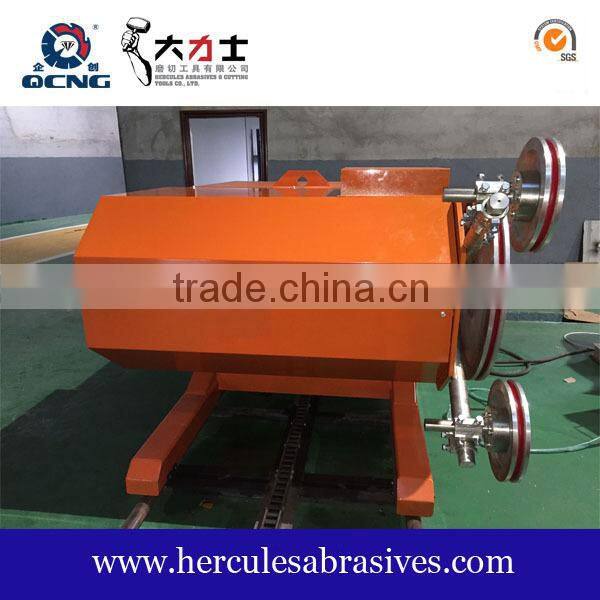

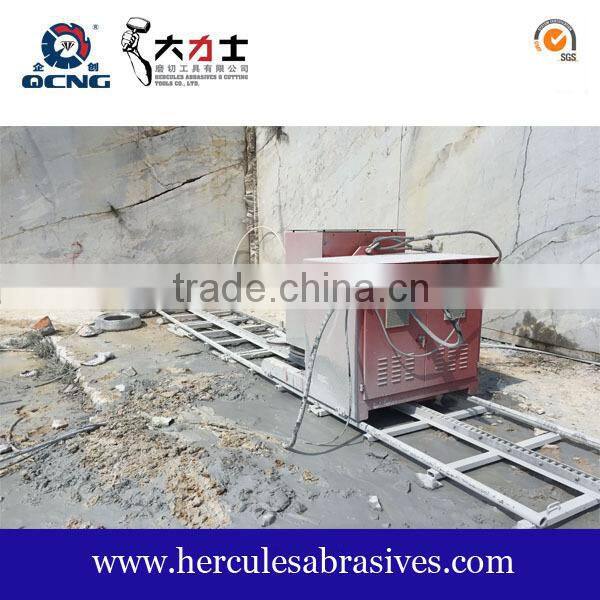

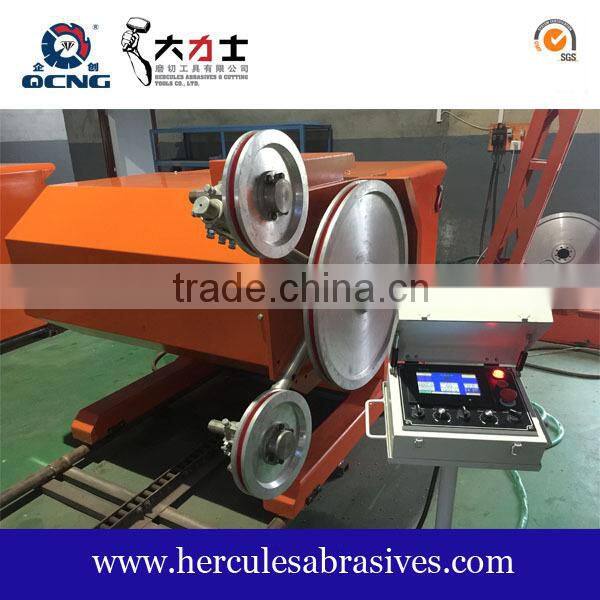

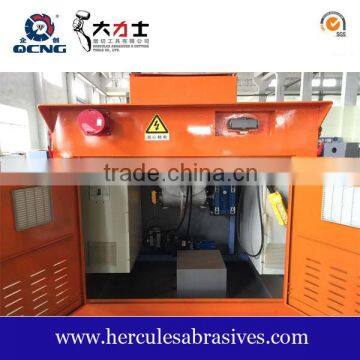

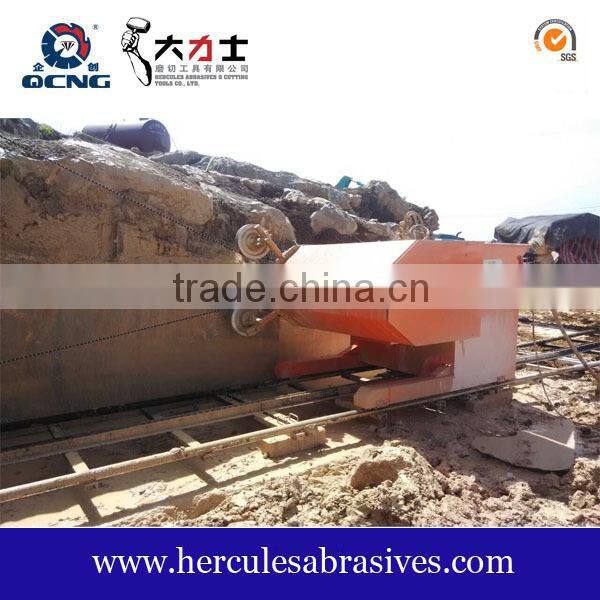

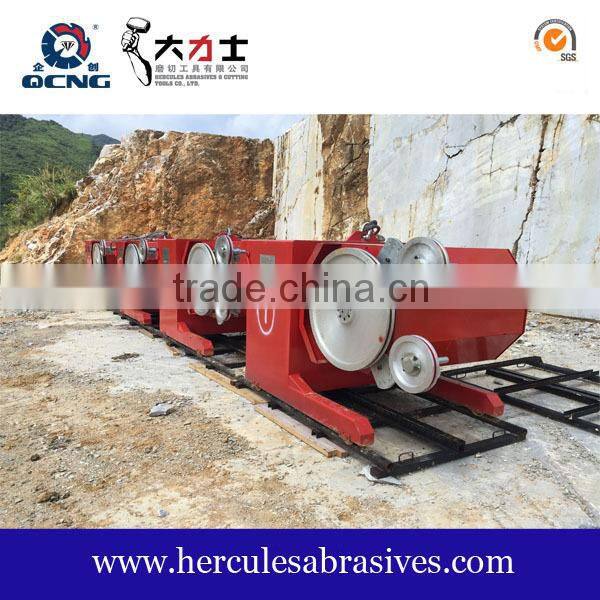

Detail Images of QCSJ-55 75HP quarry diamond wire cutter for granite, marble, sandstone, limestone:
Another models of quarry cutting machines are offered. such as 37kw/45kw/75kw/90kw/ 110kw quarry wire saw machine, Double blades granite quarry cutting machine and Vertical-horizontal multi-blades quarry cutting machine for sandstone etc.
Welcome to contact us by Trade manager (cn1515486353fker) or skype ( melanie.dalei ) or WhatsApp ( +86-159 5927 3244) .

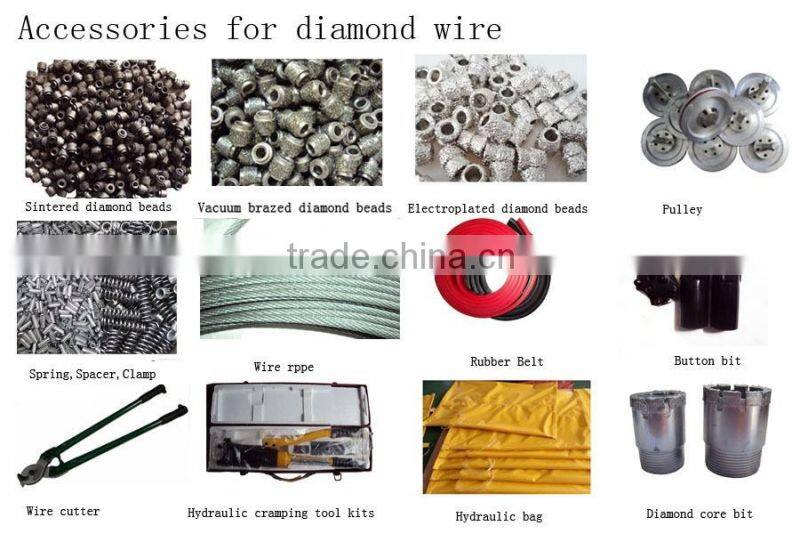

Related quarry tools are also offered
Packaging: Seaworthy Strongly Wooden Carton
Shipping: By LCL shipment
1. Engineer available to service machinery oversea.
2. Proposal for quarry development and plan, if necessary.
3. Top quality machine accessory are offer, such as Diamond wire saw, diamond beads, fly wheel, etc
4. Professional One-Stop Service for your production line
- Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
- Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
