Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Jewelry Laser Weld Machine

Jewelry Laser Weld Machine

Name: Jewelry Laser Weld Machine
Brand: HTLASER
SKU: 102598087

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

HTLASER

Contact Supplier Request Quote Chat Now

Shenzhen Chinasky Laser Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangdong, China

Brand Name HTLASER

Model Number HT-W200, HT-W200

Single Pulse Energy 80J

Pulse Width ≤20ms

Wavelength 1064nm

Focal Spot Diameter 0.2-3.0mm

Max. Output Power 200W

Dimensions 1000X480X1080mm

Usage welding

Power(W) 200W

Certification CE, ISO, CCC

Warranty 2 years

After-sales Service Provided Engineers available to service machinery overseas

Specifications

British ceramic convering cavity
Stable light beam engergy
Advanced light shielding system
Easy to operate

Company profile and certificate:

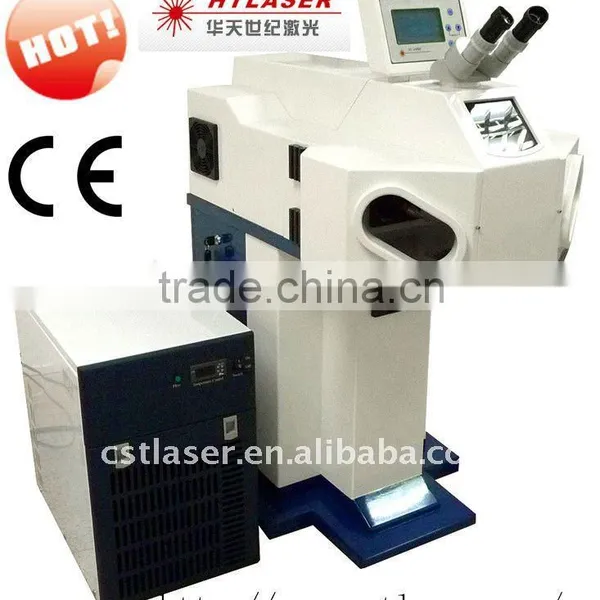

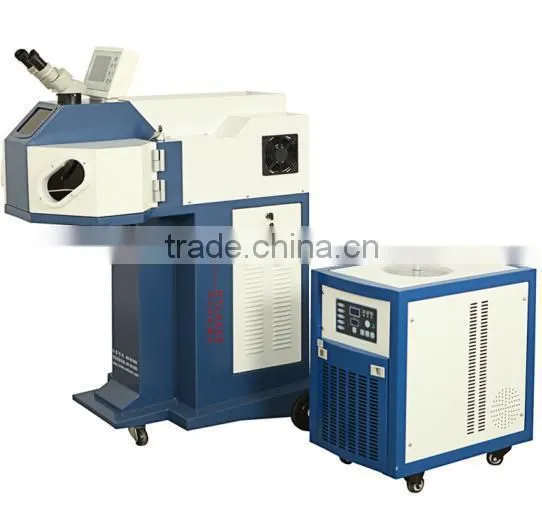

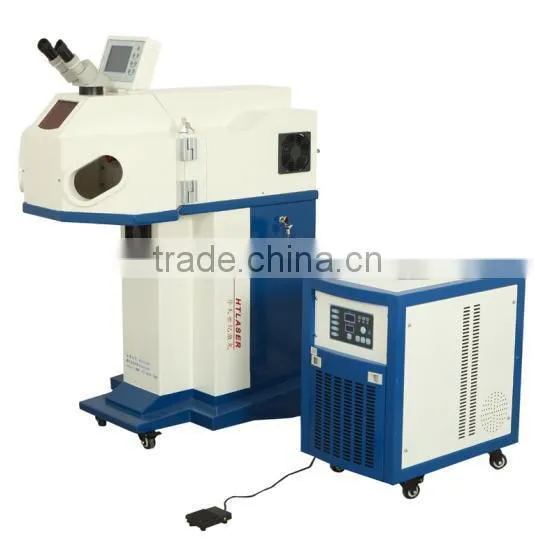

Machine Photos:

Introductions:

This welder is specially developed for laser welding of jewelry by Chinasky and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

Features:

• The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient. • Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times. • Use the most advanced light shielding system to eliminate the irritation to eyes by light during working. • Able to work for 24 hours continuously stable performance free of maintenance in 10,000 hours. • Human-based design accords with ergonomics, avoiding fatigue after long time working.

Application:

Widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

Specifications:

Model	HT-W150		HT-W200
Maximum laser output power	150W		200W
Laser wavelength	1064nm
Laser power	6KW		9KW
Minimum molten pool	0.1mm
Pulse frequency	≤50Hz
Pulse width	≤20ms
Adjusting range of light spot	0.1~3.0mm
Size of light spot	0.2~3.0mm
Protection gas	1
Power supply	220V single /50Hz/20A
Dimension	Master unit dimension	1000×480×1080mm
	Cooling system dimension	400×350×880mm
Net weight	115kg

Sample photos:

Spare parts and accessories:

Repair service: I. We can provide the main component for each welding machine, because we do not have the maintenance department at overseas . You can send back the problem spare parts to maintenance or replacement the new spare parts for your marker. II. We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us. III. If you have any particular suggestions or questions on our products, please feel free to contact us. We will be very grateful and reply your email or fax within 24 hours.

Warranty Services: One year warranty period (man-made damage is negotiable). Lifelong maintenance and spare parts supply. Free design of fixtures as customers required. Free training for operation staffs. Free marking samples of customer provided.
