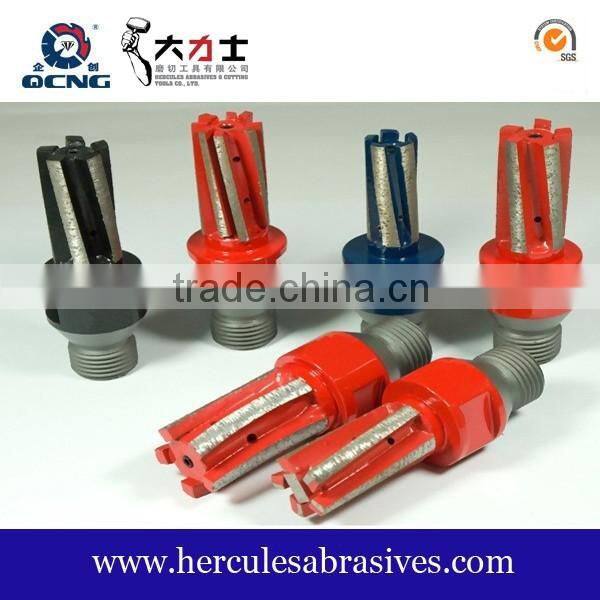

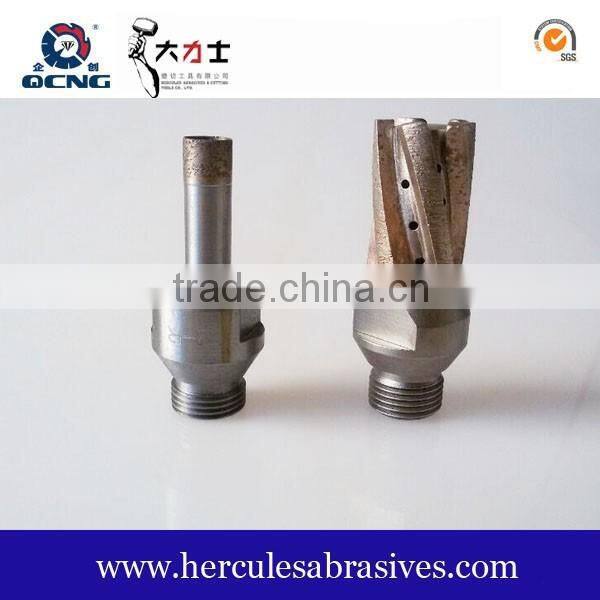

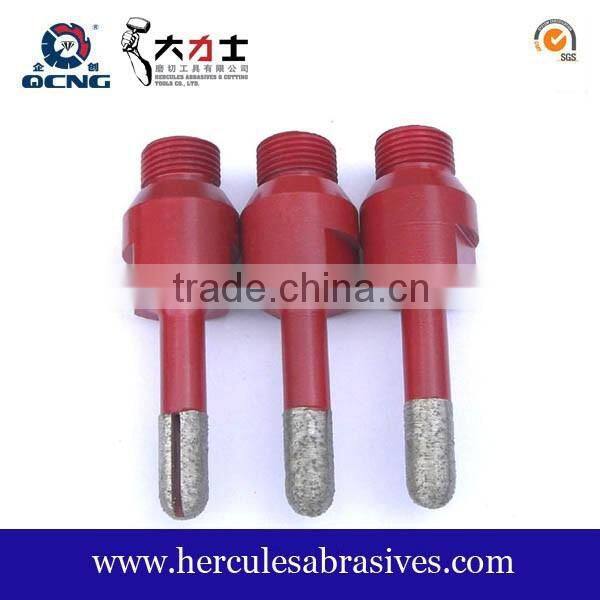

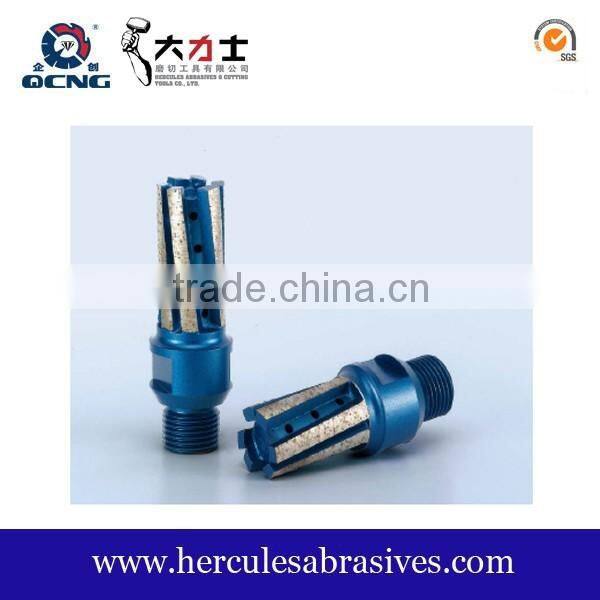

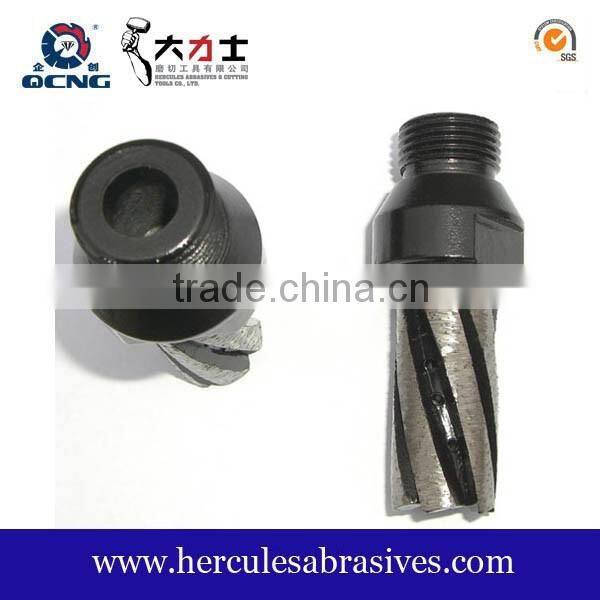

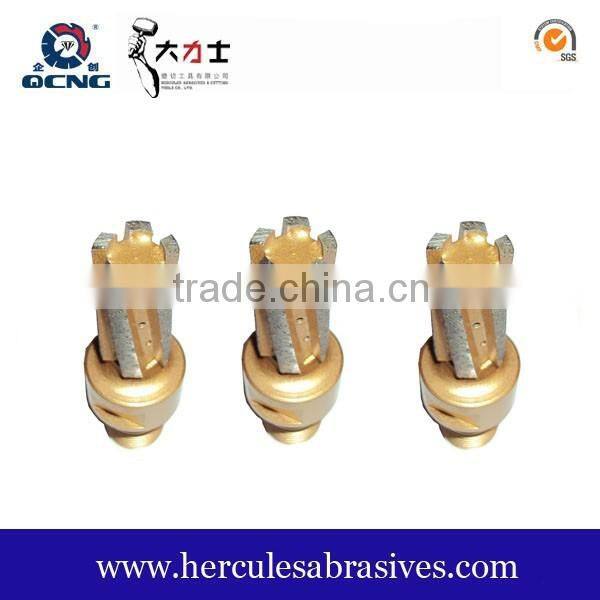

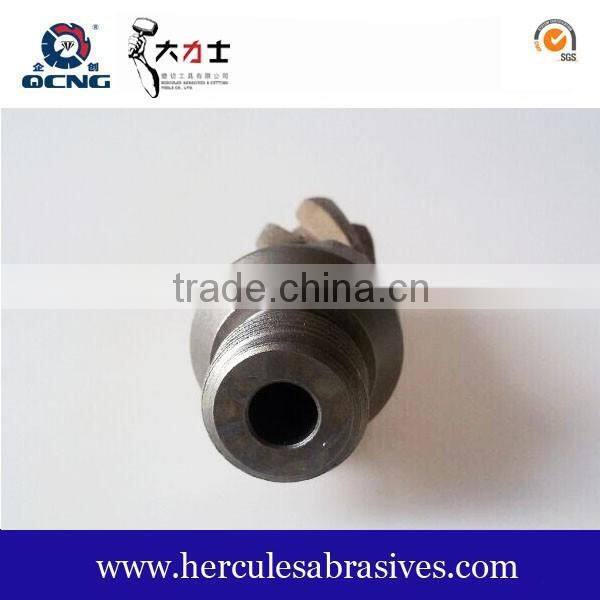

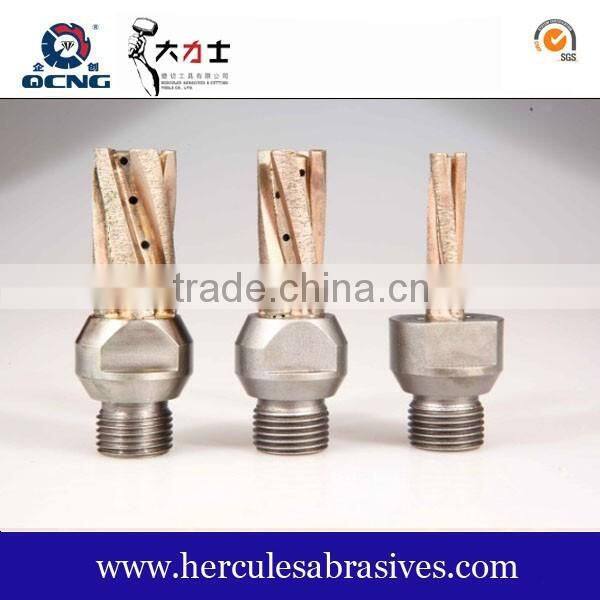

1. Product Name: Cnc Finger Bit For Granite,Marble Stone / Diamond Core Drill Bit /diamond miling cutter
2. Diamond Finger Router Bit feature:
Diamond CNC Finger bits for both CNC machines and Radial Arm machines. These finger bits are specially engineered for natural stone slabs such as granite, marble or other stone types.
We offer different Diamand CNC Finger bit options that will allow you to specifically choose all of these different parameters to find the perfect bit for your shop production and speed.
Diamond Finger Bit bonds and segment designs are unique. We offer the bond strength and brands you need. The metal bond segmented bits are excellent for granite, engineered stone and other hard natural stone while the resin filled segmented bits may be used for these materials as well as for onyx or brittle materials. The Cyclone bit has a bottom segment that is excellent if you are onion skinning your material.
3. Diamond finger router bit specification:
| Type | Diameter | Length | Size | Connection | Suggested | Feed Speed |
| (mm) | (mm) | R.P.M | (mm/min) | |||
| Segmented | 20 | 20 | 5teeth | G1/2" | 4400-4900 | 370-520 |
| Segmented | 20 | 25 | 5teeth | G1/2" | 4400-4900 | 350-500 |
| Segmented | 20 | 30 | 5teeth | G1/2" | 4400-4900 | 330-480 |
| Segmented | 20 | 35 | 5teeth | G1/2" | 4400-4900 | 310-440 |
| Segmented | 20 | 40 | 5teeth | G1/2" | 4400-4900 | 300-400 |
| Segmented | 20 | 45 | 5teeth | G1/2" | 4400-4900 | 250-330 |
| Segmented | 20 | 50 | 5teeth | G1/2" | 4400-4900 | 230-300 |
| Segmented | 20 | 55 | 5teeth | G1/2" | 4400-4900 | 200-280 |
| Segmented | 20 | 60 | 5teeth | G1/2" | 4400-4900 | 100-180 |
| Segmented | 24 | 20 | 5teeth | G1/2" | 4200-4600 | 350-500 |
| Segmented | 24 | 25 | 5teeth | G1/2" | 4200-4600 | 330-480 |
| Segmented | 24 | 30 | 5teeth | G1/2" | 4200-4600 | 310-460 |
| Segmented | 24 | 35 | 5teeth | G1/2" | 4200-4600 | 290-420 |
| Segmented | 24 | 40 | 5teeth | G1/2" | 4200-4600 | 280-380 |
| Segmented | 24 | 45 | 5teeth | G1/2" | 4200-4600 | 230-310 |
| Segmented | 24 | 50 | 5teeth | G1/2" | 4200-4600 | 200-280 |
| Segmented | 24 | 55 | 5teeth | G1/2" | 4200-4600 | 180-260 |
| Segmented | 24 | 60 | 5teeth | G1/2" | 4200-4600 | 80-160 |
&
Welcome to contact us as below:
1) Determine the RPM of your CNC machine.
2) What Feed Rate do you want your machine to run?
3) How many segments do you prefer on your Diamond Finger Bit?
4) What length do you need for your stone cutting?
5) Are you looking for high speed production?
6) What will you be cutting: Granite, Quartz, Engineered Stone, Marble?
Packaging: 1pc in a box
Shipping: By DHL, Fedex, TNT or ship etc.
Xiamen Qicheng Import&Export co.,Ltd is a subsidiary of Hercules Abrasives & Cutting Tools Co. Ltd., manufacturers of diamond tools for stone, ceramic tile and construction industries. Most of its products are used to cut, drill and grind stone, ceramic tile and concrete. We got a lot of experience from local experience and started exporting since 2009, products include a series of Cutting, Grinding, Profiling and Milling tools for Processing hard and fragile materials, such as Natural Stone, Ceramic Tile, Concrete etc. Main products are Diamond Blades, Diamond Segments, Diamond Wire Saws, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Diamond Cup Wheels, Diamond Polishing Pads as well as PCD Tools. In addition, customerized products are always welcomed. We are stick to consistent quality and reasonable prices, which won reputation for us. We welcome customers to contact us for business proposal and inquiry.
1. All Stone Polishing, grinding and cutting tools are offered.
2. Proposal for quarry development and factory plan, if necessary.
3. All type of diamond finger router bit are offered.
4. Quarry and stone processing machines are one stop supplying.
