PVC Laser Marker
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Laser Type:
Semiconductor
Place of Origin:
Guangdong, China
Brand Name:
HTLASER
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Laser Type
Semiconductor
Place of Origin
Guangdong, China
Brand Name
HTLASER
Model Number
DP75
Specifications
High stability High precisionHigh speedLow energy consumptionHigh reliabilitySmall sizeAppearance picture
The appearance of pictures are for reference only to the actual product, whichever is
Introduction:
HT-DP75(A) semiconductor pump series laser marker uses Galvanometer laser marking technology and most advanced semiconductor pump laser technology, makes the YAG rod generates a mass of inverted population with 800nm wavelength semiconductor laser diode pump Nd:YAG crystal, forms 1064nm wavelength giant pulse laser beam output under the effect of 0 switch, through expanding and focusing of laser beam, and finally realizes marking through controlling the deflection of galvanometer. It is a revolution in laser marking field. This type of laser marker features low energy consumption, high electro-optic conversion efficiency, stable laser output mode, high reliability, small size, excellent marking effect and no consumables.
The marker is designed according to ergonomics, providing beautiful appearance and simple operation. All the important optic parts are imported from Europe and America. The optics system is in fully sealed structure. It has optics preview and focus indication function and provides reliable security for the 24-hour continuous working of the machine.
The marker is designed according to ergonomics, providing beautiful appearance and simple operation. All the important optic parts are imported from Europe and America. The optics system is in fully sealed structure. It has optics preview and focus indication function and provides reliable security for the 24-hour continuous working of the machine.
Suitable materials and application Carve metal and nonmetal materials; more suitable for circumstances that require super fine and high precision.

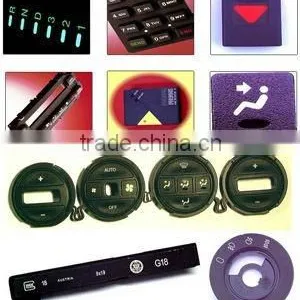

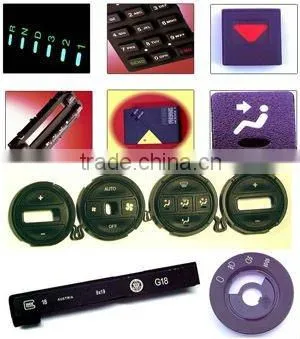

It is applied to electronic components, integrated circuit (IC), electric apparatus, mobile communication, hardware products, tool fittings, precision instrument, glasses, watch and clock, jewelry, automobile parts, plastic keys, construction materials, PVC pipes, medical instruments, etc.
Suitable materials include: common metal and alloy (all metals include iron, copper, aluminum, magnesium and zinc), rare metal and alloy (gold, nickel, and titanium), metal oxide, special surface process (phosphating, aluminum anodizing and electroplated surface), ABS material (electric apparatus shell, daily necessities), ink (light-transmitting keys, printing products), epoxy resin (packages and insulating layer of electronic components).
It is applied to electronic components, integrated circuit (IC), electric apparatus, mobile communication, hardware products, tool fittings, precision instrument, glasses, watch and clock, jewelry, automobile parts, plastic keys, construction materials, PVC pipes, medical instruments, etc.
Suitable materials include: common metal and alloy (all metals include iron, copper, aluminum, magnesium and zinc), rare metal and alloy (gold, nickel, and titanium), metal oxide, special surface process (phosphating, aluminum anodizing and electroplated surface), ABS material (electric apparatus shell, daily necessities), ink (light-transmitting keys, printing products), epoxy resin (packages and insulating layer of electronic components).
Technical parameters
Model |
HT-DP75(A) |
Laser Output Power |
≤75W |
Laser wavelength |
1064nm |
Light beam mass m2 |
<6 |
Laser repeating frequency |
≤50KHz |
standard carving range |
100mmX100mm |
optional carving range |
70mmX70mm/100mmX100mm/150mmX150mm(optional) |
varving depth |
≤1mm |
integrity power |
1.5KW |
Minimum line width |
0.015mm |
Repeating precision |
±0.0025mm |
carving line speed |
≤7000mm/s |
| Dimensions | 1000*870*1200mm |
cooling system |
hight precision constant temperature ±0.1/circulating chiller |
