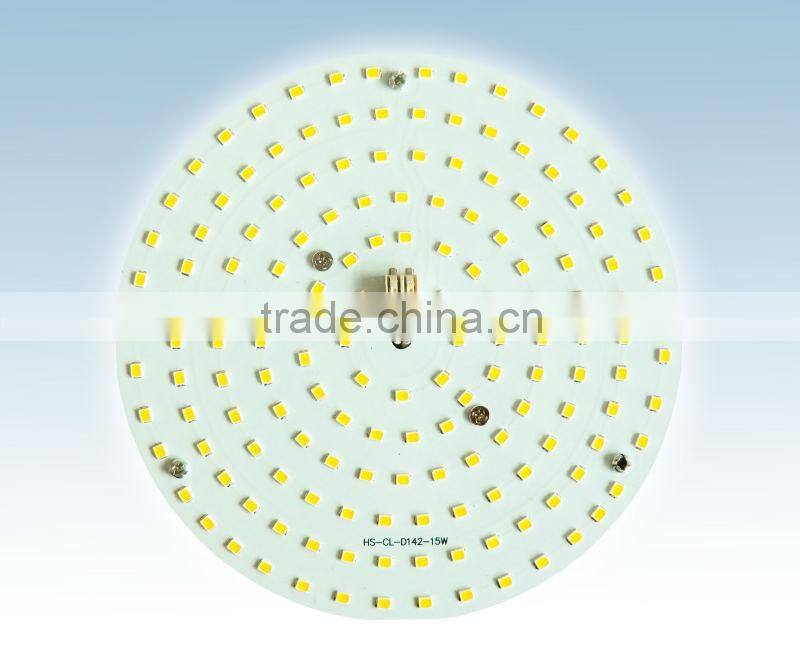

15W LED 230V AC pcb module Epistar SMD2835/AC module connect to 230V directly/ceiling light downlight replacement
1. Features of the ceiling light LED module
No UV or RF interference, no Mercury or Lead.
Ultra thin PCB panel design, only1.3mm.
Taiwan Imported original Epistar chip.
Life-span:50000 hours.
Industrial powerful magnet,Firm installation,Easy installation
3 years warranty
With CE, RoHS approval.
10W Φ110mm, 15W Φ142mm, 20W Φ180mm, 25W Φ210mm are available.
2. Specification of ceiling light LED module
Power: |
15W |
Size: |
Φ142*1.3mm |
LED: |
156pcs Epistar LED 2835 |
CRI: |
85 Ra |
Lumen efficiency: |
85 lm/w |
Lumen output: |
1250 lm |
Power factor: |
>90% |
Power efficiency: |
>85% |
Lumen depreciation: |
3‰ |
CCT: |
3000K/4000K/6000K |
Voltage: |
200-240V |
Material: |
Aluminum, magnet |
Bean angle: |
120° |
Weight: |
90g |
Certificate: |
CE, RoHS |
Application: |
Replace old ceiling light source |
3. Advantages of ceiling light LED module
4. How to Choose the ceiling light LED module to replace the light source
5. Outline dimension of ceiling light LED module
6. Package of ceiling light LED module
7. Installation of ceiling light LED module
8. Application of ceiling light LED module
Remarks:
1. Please install the lamp by professionals.
2. Please make sure the right voltage before working.
3. For indoor use only, please stay away from heat and vibration source.
4. Switch OFF the power before installing the Ceiling light LED round PCB Board.
9. Certificates of ceiling light LED module
