Home > Products > Ceiling Lighting LED Module > 2835 modulo led 15w 220vac square aluminium led boards 130*130mm 15W/ free sample
2835 modulo led 15w 220vac square aluminium led boards 130*130mm 15W/ free sample
- 200000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Model Number: | HS-CL2-L130-15W | Chip Material: | AlGaInP | Emitting Color: | Other, warm white, nature white, cool white |
Luminous Intensity: | 10000 | Luminous Flux(lm): | 1400 | Optical Attenuation(%): | 2% |
Power: | Other, 15W | Power Dissipation: | 95% | Color Rendering Index(Ra): | 80 |
Color Temperature: | 3000K-6500K | Operating Temperature(℃): | -20, 50 | Storage Temperature(℃): | -20, 50 |
Place of Origin: | Guangdong, China | Brand Name: | Hoslight | Certification: | CE |
Product Description

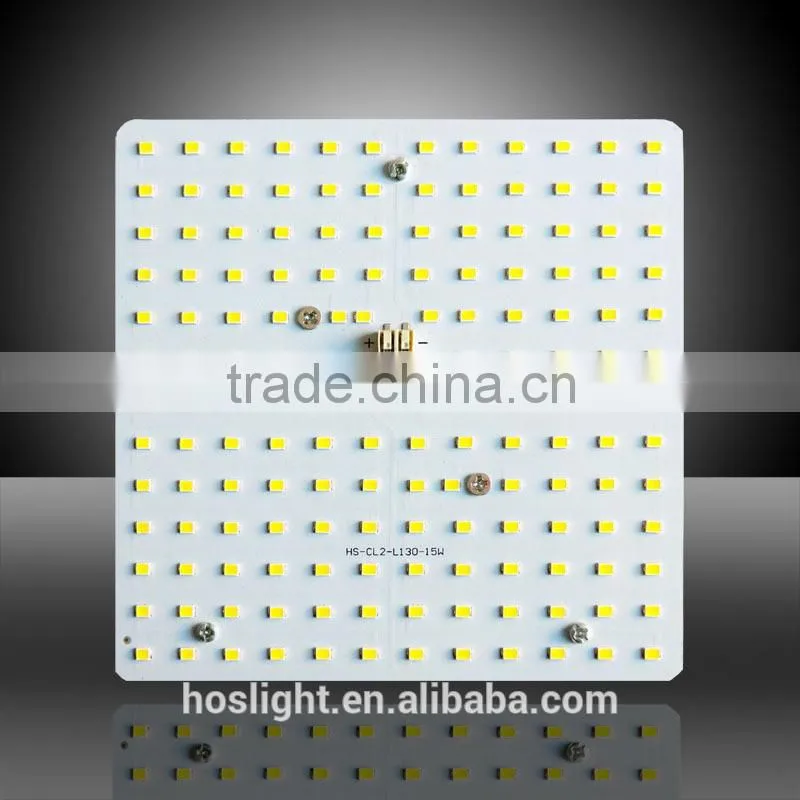

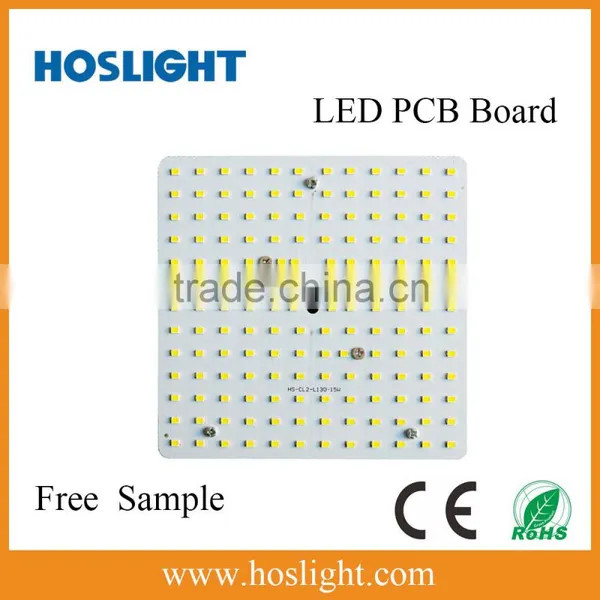

2835 modulo led 15w 220vac /square aluminium led boards 130*130mm 15W/ free sample
1. Features of the AC230V LED module
Customize for your own lighting various size OEM are available
1. AC 230V directly, Integrated IC chip, without external driver.

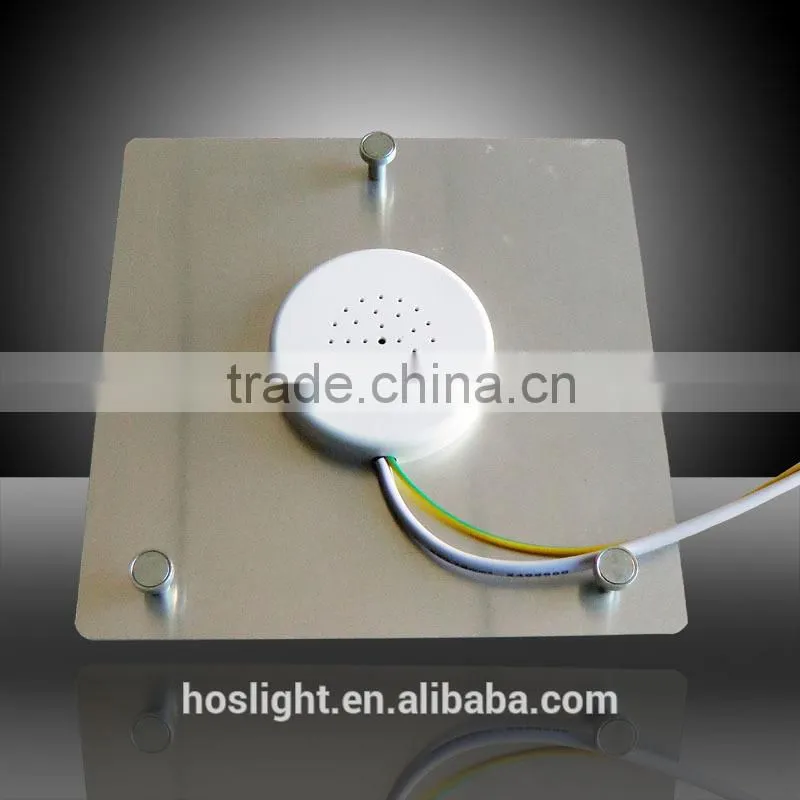

2. Fix with magnet, 3 wire connecting with ground wire.
3. Terminal connecting instead of soldering, much safter.
4. Epistar 2835 LEDs, CRI>80 Ra, 95lm/w
5. Blister package, good for brand promotion,
6. Huge market-manufacture/decoration engineering or projects/distributor
2. Specification of AC230V directly LED module
Dimension: Φ130*130mm | Power: 15W |
Input Voltage: AC180-245V | Luminous flux: 1350±5%lm |
LED Efficiency: 90lm/W±5% | CRI: 80±5Ra |
LED quantity: 156pcs | LED Type: 2835 SMD |
Power Efficiency: ≥0.90 | Power Factor: >0.90 |
Shell Material: Aluminum | Beam Angle:120° |
Correlated Color: Natural White | |
Color Temperature: 4000K | |
Operating Temperature: -5℉ to 122℉(-20℃ to 50℃) |
3. Application of AC230V LED module
Kitchen and hall
Toilet,
Balcony, corridor, passageway.
Living room.
Bedroom & study room, etc..
4. Installation of ceiling light LED module
Remarks:
1. Please install the lamp by professionals.
2. Please make sure the right voltage before working.
3. For indoor use only, please stay away from heat and vibration source.
4. Switch OFF the power before installing the Ceiling light LED round PCB Board.
8. Certificates of ceiling light LED module
5.Transportation of the goods:
Delivery can be Express ( international courier), such as EMC, FEDEX, UPS, DHL, TNT etc. door to door service, also can be common air, airport to airport mon sea.
Our services:
- Your inquiry related to our products or prices will be replied in 24hrs.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- OEM&ODM, any your customized lightings we can help you to design and put into product.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
Company Profile:
House Lighting Co.Ltd is the national hi-tech enterprise specialized in LED. Our product covers a wide range , including LED panel light,LED high bay light, LED tunnel light, LED flood light, LED downlight. Welcome your visit to our factory.
Contact Us
- Shenzhen House Lighting Co., Ltd.
- Contact nameKevin Cai
- Phone86-755-33181636
- Address4/F,3RD BUILDING,GOTO DIGITAL TECHNOLOGY ZONE,BUJI TOWN,LONGGANG, SHENZHEN,CHINA Shenzhen,Guangdong
