M sharp diamond segment for granite sandstone cutting segment stone tools
Diamond segments are brazed or laser-welded on circular saw blades, multi saw blades, which is suitable for cutting all kinds of stone(such as marble, granite, limestone, basalt stone, sand stone, grit stone, etc.) and construction industry (such as concrete, reinforced concrete, cured concrete, green concrete, asphalt, etc). There are normal type, sandwich type, ring type and ladder type segments.
1. Block cutting segment for granite
(1) Characteristics of diamond segment for granite
- The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan.
- Good cutting result:smooth cutting,flat surface and even size.
- Stable cutting,narrow cutting gap,stone waste reduction.
- M-shape segment is easy for diamond opening.
(2) Specifications of diamond segment for granite
| Product Name | Diameter (mm) | Steel Core (mm) | Segment Dimension(mm) | Segment Number | Application |
| Block Cutting Segment For Granite | 900 | 5 | 24*7.0/6.2*12(15,20) | 64 | Granite |
| 1000 | 5 | 24*7.0/6.2*12(15,20) | 70 | ||
| 1200 | 5.5 | 24*7.4/6.6*12(15,20) | 80 | ||
| 1400 | 6 | 24*8.0/7.2*12(15,20) | 92 | ||
| 1400 | 6.5 | 24*8.4/7.6*12(15,20) | 92 | ||
| 1600 | 7.2 | 24*9.2/8.4*12(15,20) | 108 | ||
| 1800 | 7.5 | 24*10/9.2*12(15,20) | 120 | ||
| 2000 | 8 | 24*11/10*15(20) | 128 | ||
| 2200 | 9 | 24*11/10*15(20) | 132 | ||
| 2500 | 9 | 24*12/10*20(30) | 140 | ||
| 2700 | 9 | 24*12/10*20(30) | 140 | ||
| 3000 | 9.3 | 24*13/12*20(30) | 160 | ||
| 3500 | 9.5 | 24*13.5/12.5*20(30) | 180 |
2. Block cutting segment for sandstone
(1) Characteristics of diamond segment
- The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan.
- Good cutting result:smooth cutting,flat surface and even size.
- Stable cutting,narrow cutting gap,stone waste reduction.
- 4M-shape segment is easy for diamond opening.
(2) Specifications of diamond segment

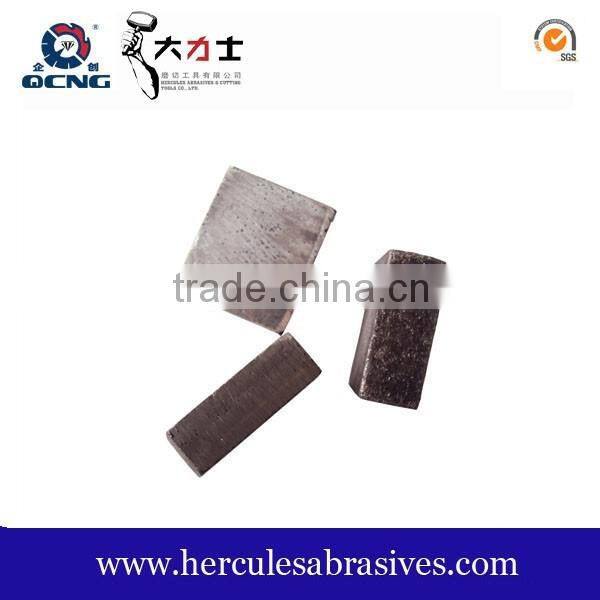

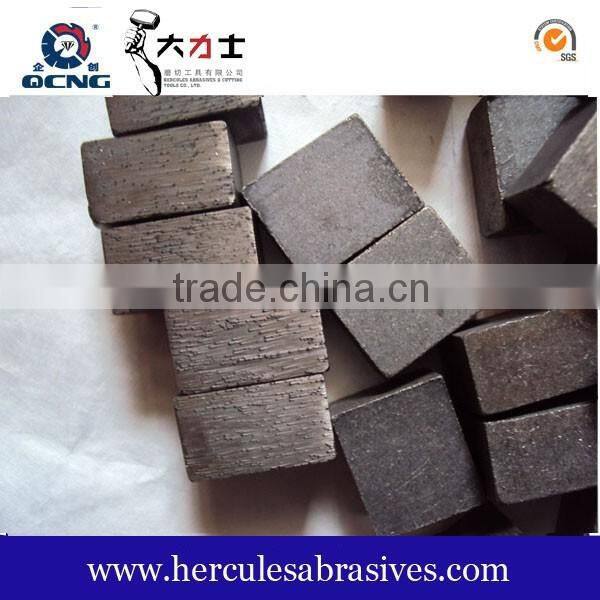

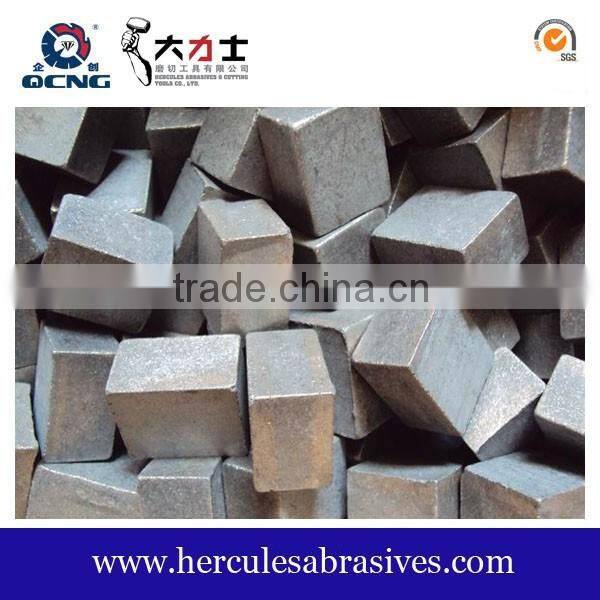

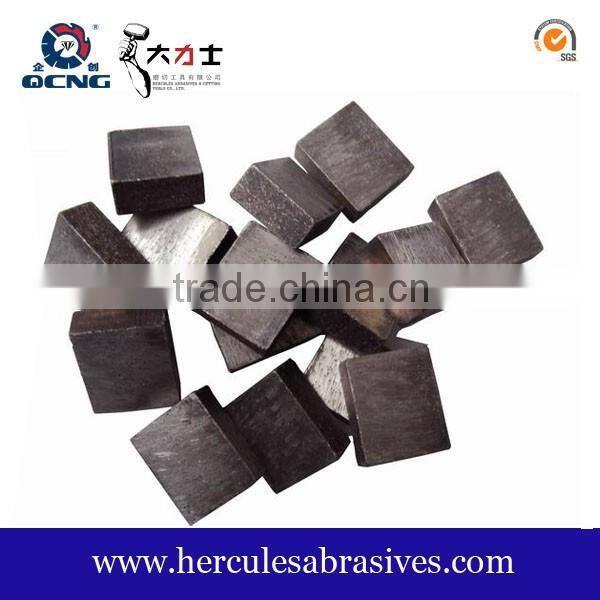

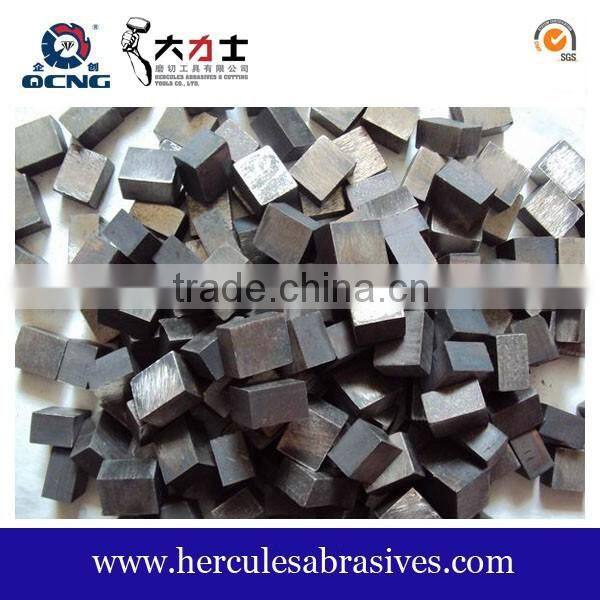

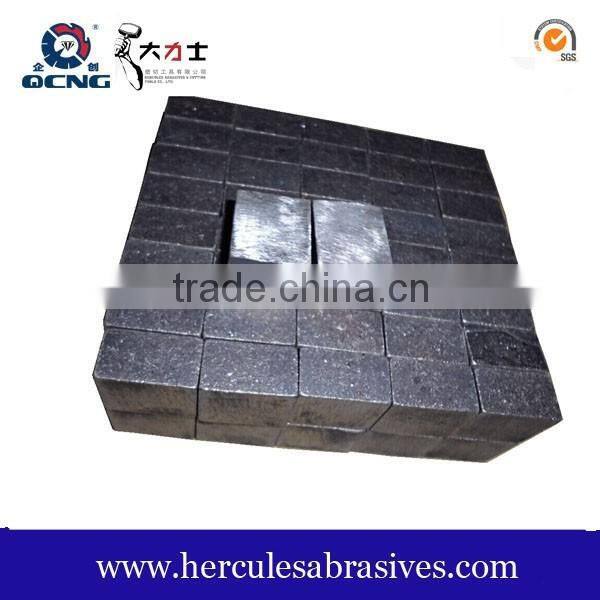

Pictures of diamond segment
Other specifications are available upon request.Welcome to contact us for more detail information and business negociation.
